7
L-7
III.a) First start-up
1. Connect L-7 with all the subordinate devices to be controlled
2. Switch on the power supply and check if the devices work.
3. Activate the Internet module.
4. Set current time and date.
Step 1: Connect L-7 with all subordinate devices to be controlled
Remove the cover and connect the wires following the clues on the connectors and the
diagrams presented below.
Follow this order while connecting:
- all the necessary valve actuators ST-230/2 (connectors 1..8)
- Internet module (using RS cable)
- pump
- an additional device
III. Installation
WARNING
Risk of fatal electric shock from touching live connections. Before working on
switched on.

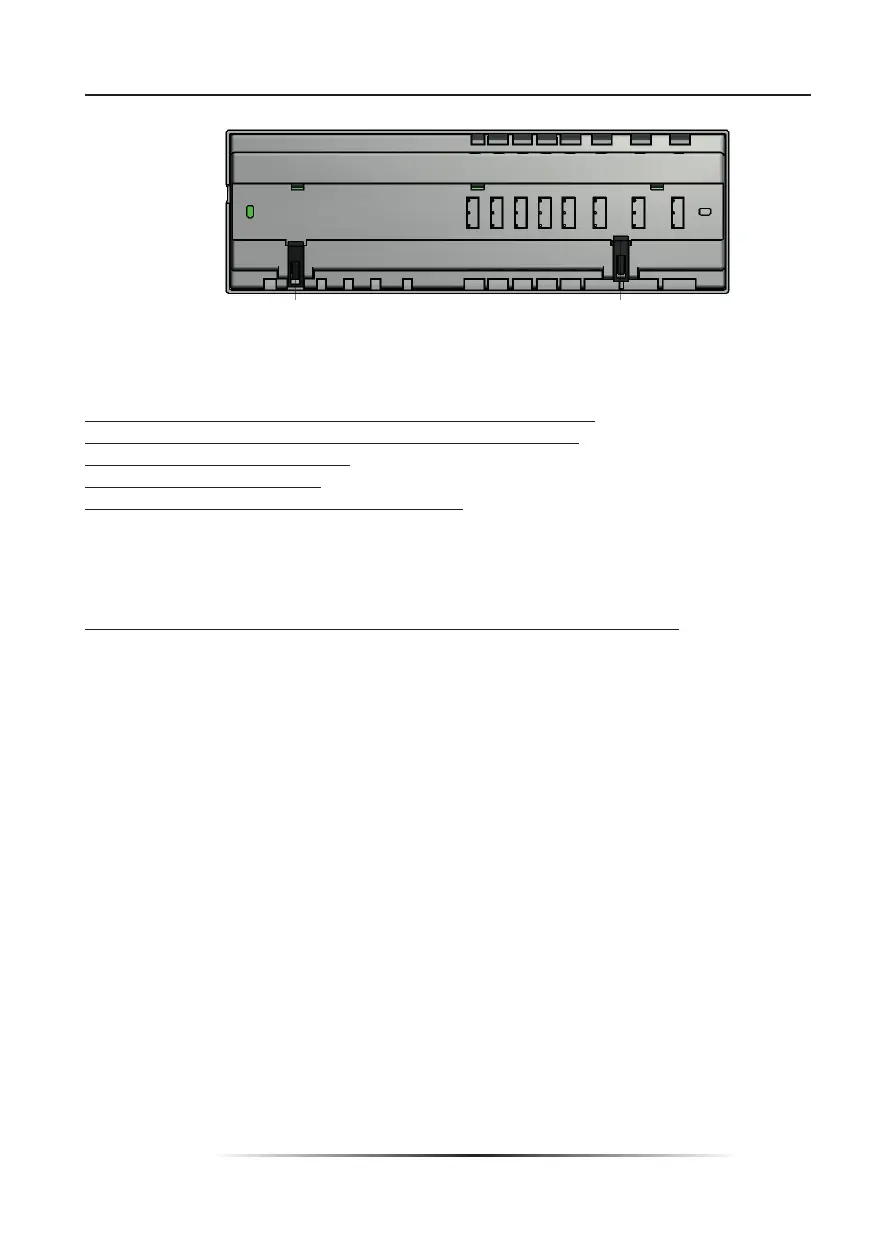

1. Cover (it should be removed to connect the devices to be controlled)
2. Display
3. Buttons
L-7 controller may be installed as a free-standing device or as a panel mountable on a wall.
The controller may be installed on a DIN strip
