10/29/2019 Tech Works CI-Series Systems Planning & Installation Manual Page 9 of 42

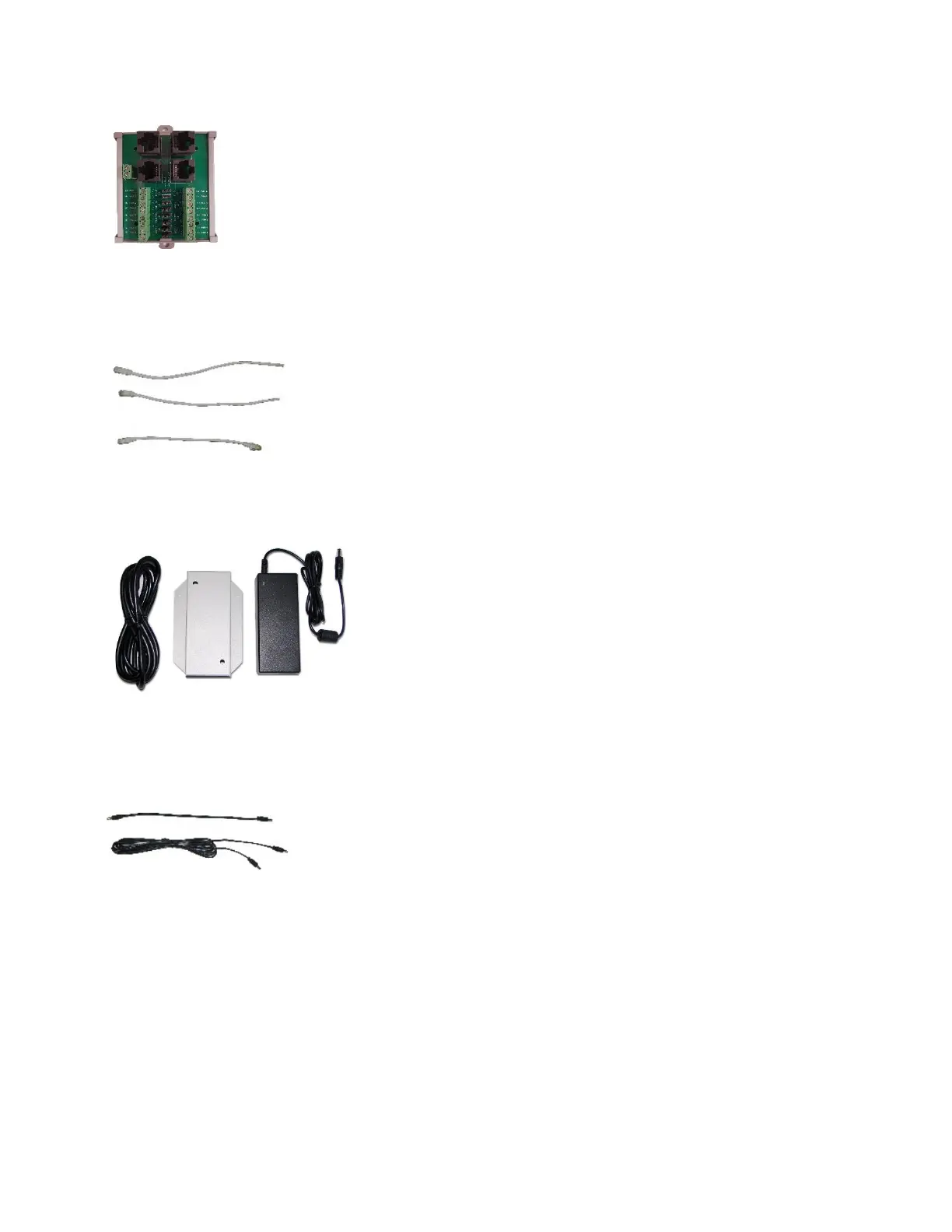

CAT6-BB - RJ-45 Cable Breakout Board
The Tech Works CAT6-BB is a RJ-45 Cable Breakout Board designed to take
our Tech Works CAT6 cables and make each conductor accessible by a screw
terminal and/or assignable by jumpers. These units are designed for the
systems integrator and are typically used with our Collaborative Intercom
products to allow fast easy installation with custom music systems or
telemedicine conferencing equipment. A built in opto-isolator provides a
normally open contact closure for controlling music mute on products not
provided by Tech Works.
CAT6-* Patch Cord (“*” specify Length in feet; 1, 3, 10, 25, 50)
The Tech Works CAT6-* (“*” specify Length) is an EIA 568B standard
computer network Patch Cable designed to connect our Tech Works
Collaborative Intercom (CI-Buss) and PA-Buss products together.
These units are designed for the systems integrator to make
installation Plug and Play.
PS-2437A - 24VDC @3.7A Power Supply
The Tech Works PS-2437A is a regulated computer grade
power supply capable of providing 3.75 Amps of power at 24-
Volts DC to any of our products. A 6-foot removable power
cord with a North American standard Edison connector is
included along with a metal mounting bracket to allow the
unit to be screwed to the wall or under a counter.
PC-* Power Patch Cable (“*” specify Length in feet; 1, 3, 10, 25, 50)
The Tech Works PC-* (“*” specify Length) is a Power Patch Cable
designed to connect our Tech Works Collaborative Intercom (CI-
Buss) and PA-Buss products together. These units are designed for
the systems integrator to make installation Plug and Play. 18-gauge power cord is made with 5.5
mm barrel connectors on each end for connecting 24 VDC power from one unit to the next.
