13
Model: TX-203,TX-204 Article No. 5012,5013, 10/2022

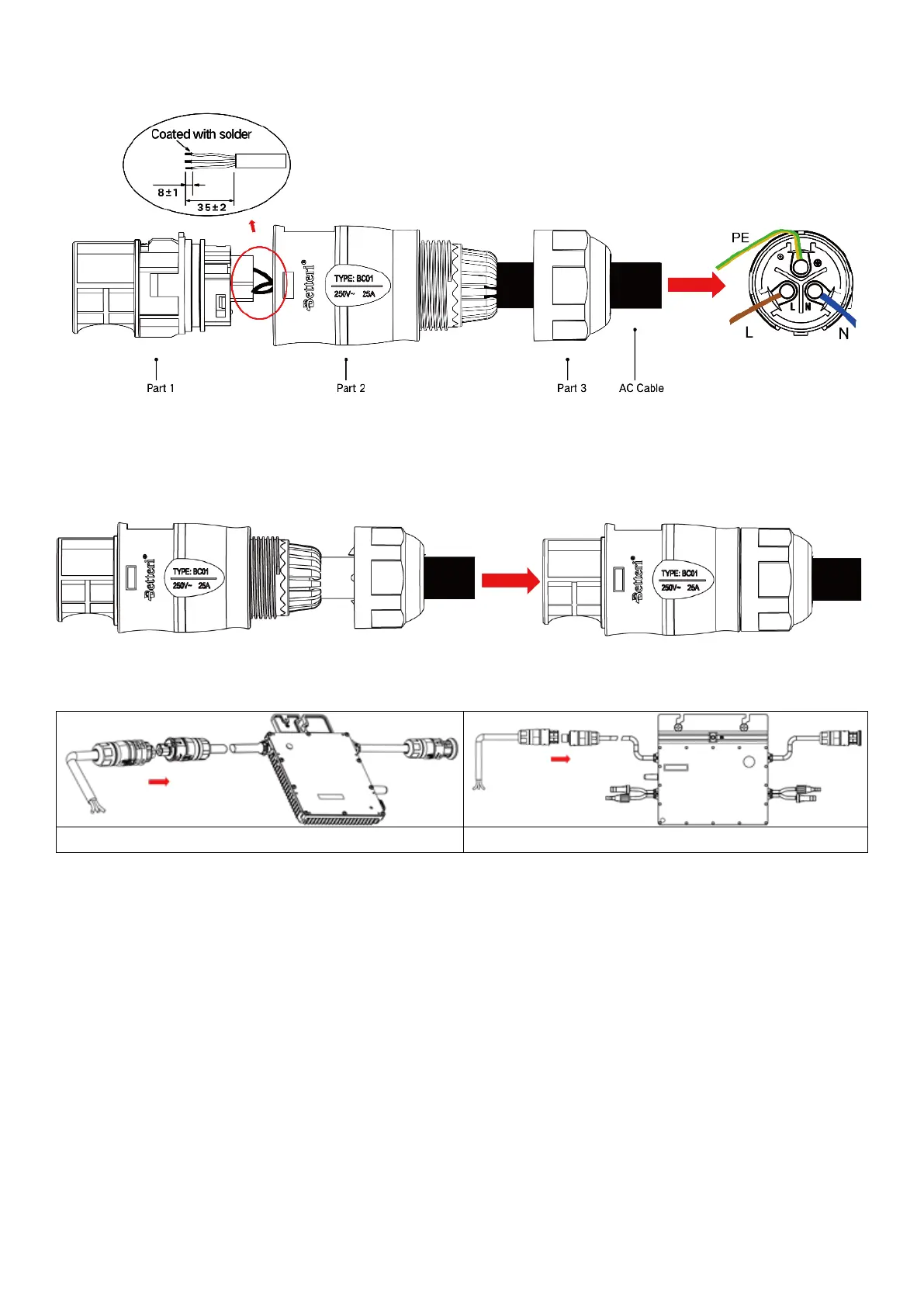

2. Insert the AC cable from Part 3 to Part 2, and complete the wiring for the L, N and
Ground (PE) inside Part 1 AC port accordingly:
Note: L: Brown wire; N: Blue wire; PE: Green/Yellow wire
Use 3x1.5mm² (H07RN-F) cable as AC grid connection cable.
3. Plug the AC port Part 2 into Part 1 once complete the wiring and screw the Part 3
on and complete the AC grid connection cable:
Connect the AC grid connection cable to the AC male connector of the first micro
inverter to complete the circuit.
