12
Model: TX-203,TX-204 Article No. 5012,5013, 10/2022

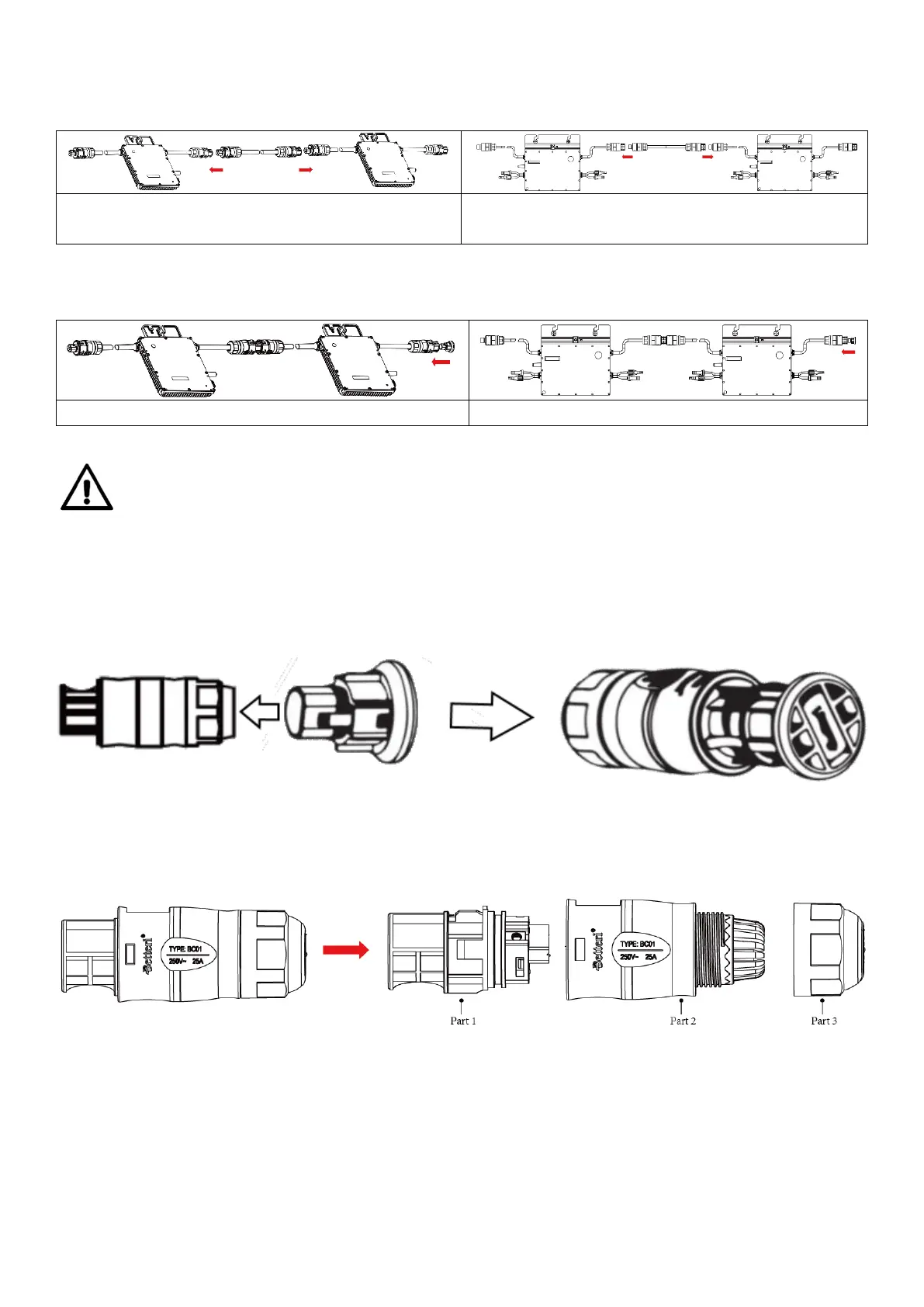

Note: The length of AC cable on micro inverter is around 0.98m/1.88m. If the distance
between two micro inverters is more than 1m/2m, use an AC extension cable between
two micro inverters (As picture indicated below).
TX-203 AC connection with extension
cable
TX-204 AC connection with extension
cable
2. Install the AC end cap on the open AC connector of the last micro inverter in the
AC branch circuit.
CAUTION!
Never exceed the maximum number of micro inverters in an AC branch circuit
(see technical data)!
Install protective AC end cap
Like shown in the picture below connect the AC end cap from the accessory on the
short AC 230V AC input cable (1).
Connect AC grid connection cable
Make the AC grid connection cable.
1. Take the female AC adapter apart into 3 parts:
To Next Page
