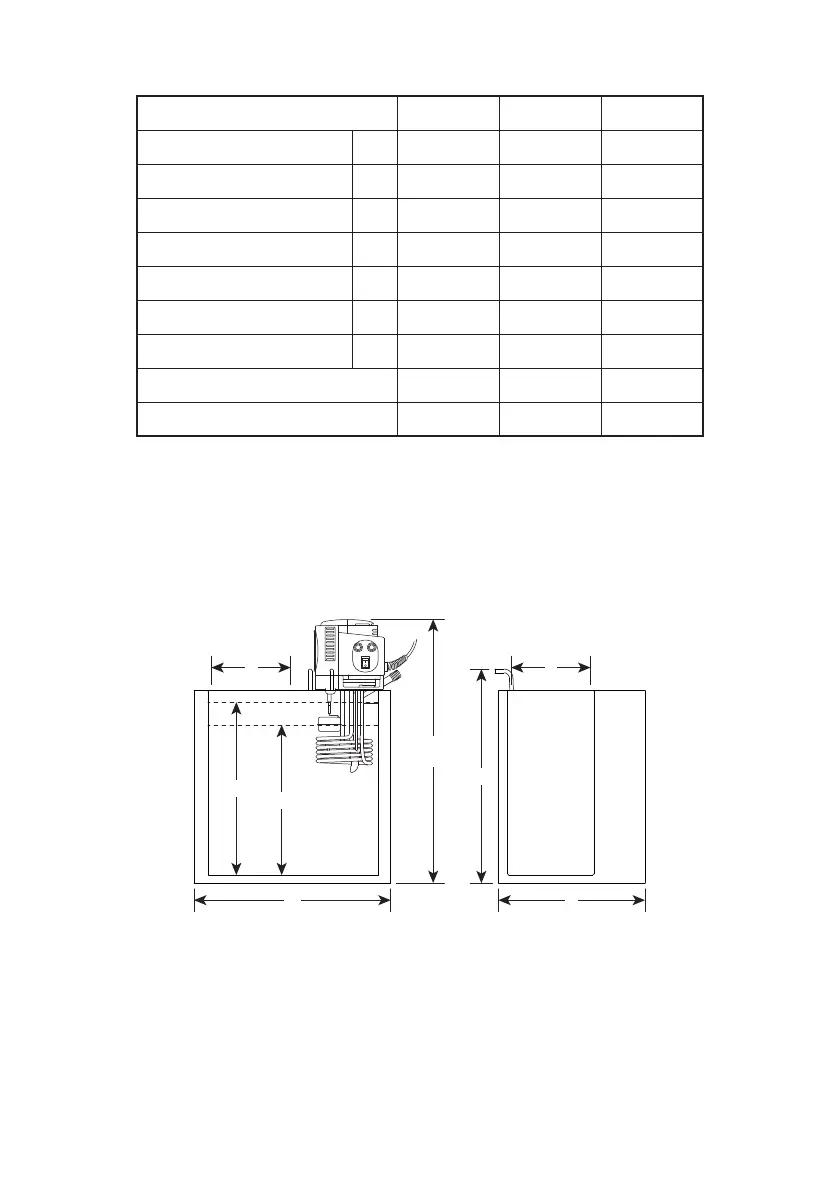

Liquid Calibration Bath Dimensions
Nominal Dimensions
Bath
LCB-5 LCB-7 LCB-12
Overall Length A
351 mm 351 mm 351 mm
Overall Width B
260 mm 260 mm 260 mm
Overall Height C
183 mm 233 mm 358 mm
Opening length D
140 mm 140 mm 140 mm
Opening width E
140 mm 140 mm 140 mm
Maximum working depth F
130 mm 140 mm 305 mm
Minimum working depth G
90 mm 90 mm 265 mm
Maximum capacity
5.0 l 6.5 l 12.0 l
Minimum capacity
4.0 l 5.5 l 11.0 l
BA
C
E
F
G
C+
125
D
