Techne TE-10D - Refrigerated Bath Dimensions

34
B
F
A
C
D
E
G
H
C+
125

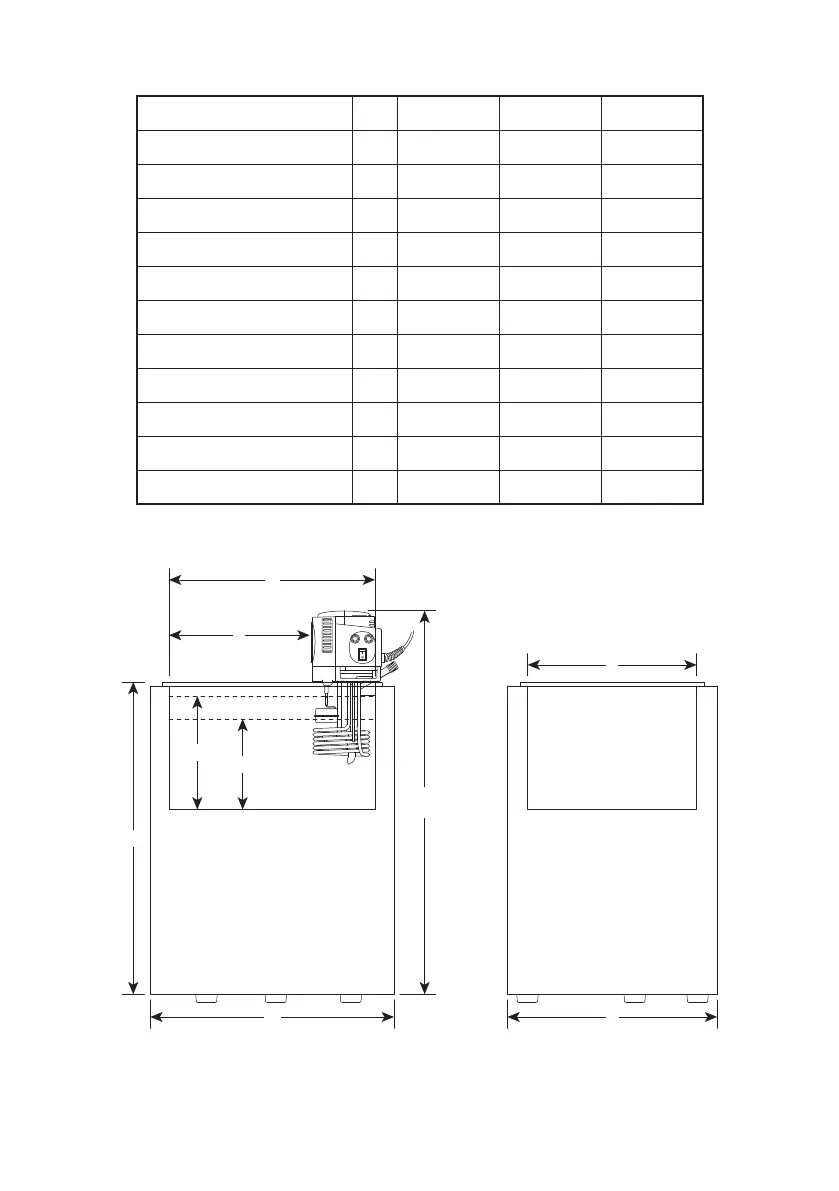

Refrigerated Bath Dimensions
Nominal Dimensions
Bath
RB-5A RB-12A RB-22A
Overall length A
430 mm 430 mm 430 mm
Overall width B
250 mm 370 mm 395 mm
Overall height C
566 mm 610 mm 565 mm
Internal
Maximum length D
192 mm 208 mm 360 mm
Working length E
224 mm 224 mm 250 mm
Width F
151 mm 300 mm 295 mm
Maximum working depth G
180 mm 130 mm 200 mm
Minimum working depth H
135 mm 85 mm 160 mm
Maximum capacity
7.0 l 11.6 l 22.0 l
Minimum capacity
5.5 l 9.6 l 18.0 l
