Page 11
Installation
Connect the RF input to the cable plant. Optimum signal levels should be 8dbmV +/- 5dB.
However in a testing environment the unit has performed well between -5dBmV and +17dBmV.
Connect the unit to the TV via provided HDMI cable. The DCI401MCS RF coaxial outputs only
standard definition. If possible set the TV to default to the HDMI input used.

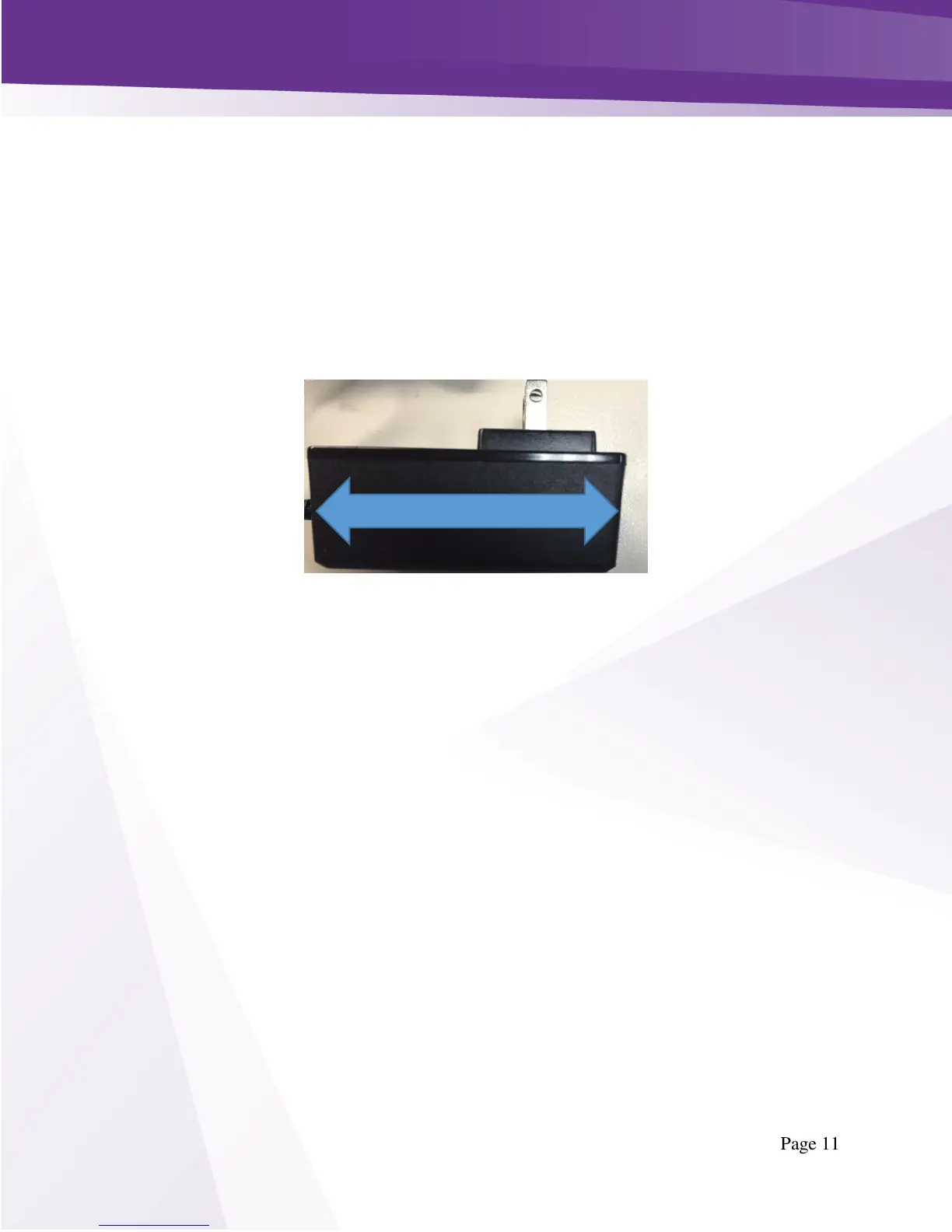

When planning an installation remember that the DCI401MCS needs AC power. If TVs are wall
mounted there must be adequate room to plug in the power adaptor. Which measures 3”H
X1.5”W X 1.5” D
