Page 15
Menu Functions

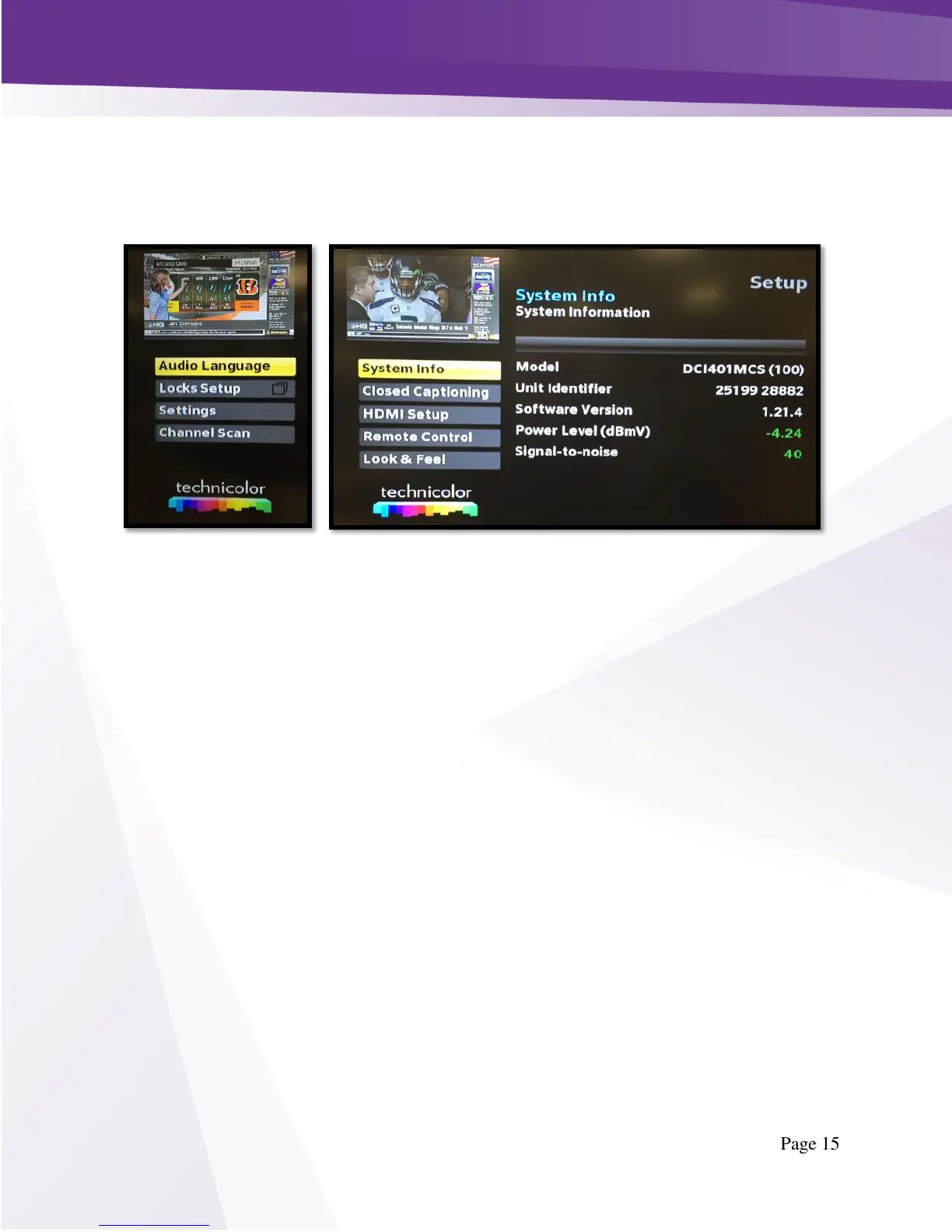

The DCI401MCS has a user menu with convenient function and information screens:
The Audio Language and Locks Setup screens are usually left at default in commercial
applications.
The settings option will bring you to the System info page. Important information from this
screen is:
➢ The Unit Identifier
Unit Identifier number should be documented along with the location of the unit to
facilitate direct access to specific DCI401MCS boxes from the COM2000 interface.
➢ Software Version
Should be the most current available from Technicolor. Take care if using PSIP on TVs
not using DCI401MCS. PSIP channel mapping is disabled on software versions
V01_22_XX and newer will disable PSIP channel mapping functions
➢ Power Level
Displays the RF power in dBmV.
➢ Signal to Noise
Displays Signal to Noise ratio in dBmV.
