Technicolor DWA0120 Quick Setup Guide

1
1. Before you start
Carefully read the Safety Instructions and Regulatory Notices document included
in your package before continuing with the installation of your DWA0120.

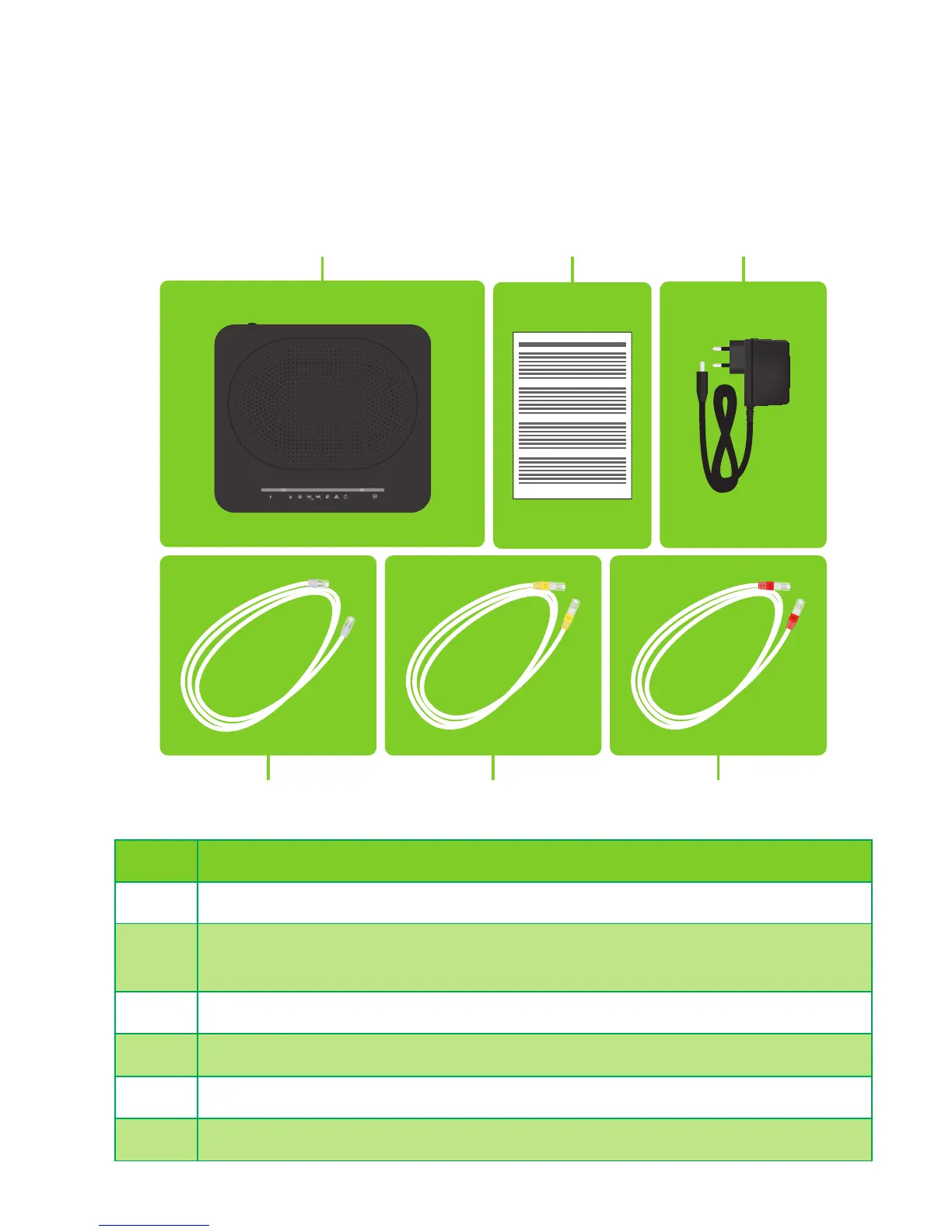

2. Check the content of your package
Your package contains the following items:
D E F
B
CA
Item Description
A One DWA0120
B User Documentation (this Quick Setup Guide, Safety Instructions &
Regulatory Notices…). Other additional documents may be included.
C One power adapter (type may dier depending on region)
D One DSL cable
E One Ethernet cable with yellow connectors
F One Ethernet cable with red connectors (optional)
3. Connect your DWA0120 to the broadband service
Choose your setup
To connect the DWA0120 to the Internet you can either:
• Directly connect the DWA0120 to your service provider’s DSL network. Follow the
instructions from “Option A: DSL setup” on page2.
• Place the DWA0120 behind another Internet access device (for example, an
Optical Network Terminal (ONT) for fibre). Follow the instructions from “Option
B: WAN setup” on page2.
Option A: DSL setup
DSL
1 Plug the DSL cable into the grey port labelled DSL of the DWA0120.
2 Plug the other end of the DSL cable into your telephone wall socket.
Option B: WAN setup
WAN
1 Plug the Ethernet cable with the red connectors into the red port labelled WAN.
2 Plug the other end of the Ethernet cable into your Internet access device’s Ethernet
port.

Technicolor DWA0120 Specifications

General

Device Type	Gateway
Wireless Technology	Wi-Fi
Frequency Band	2.4 GHz
Maximum Data Rate	300 Mbps
Ethernet Ports	4 x 10/100 Mbps
Antenna	Internal
Wireless Standards	802.11 b/g/n
Security Features	WPA2
Ports	4 Ethernet, 1 USB
