Wall Mounting
This article will show the user through the process of wall-mounting the Wireless Voice Gateway
The Adapter has two wall-mount slots on its back panel.
Two screws are needed to mount the Adapter.

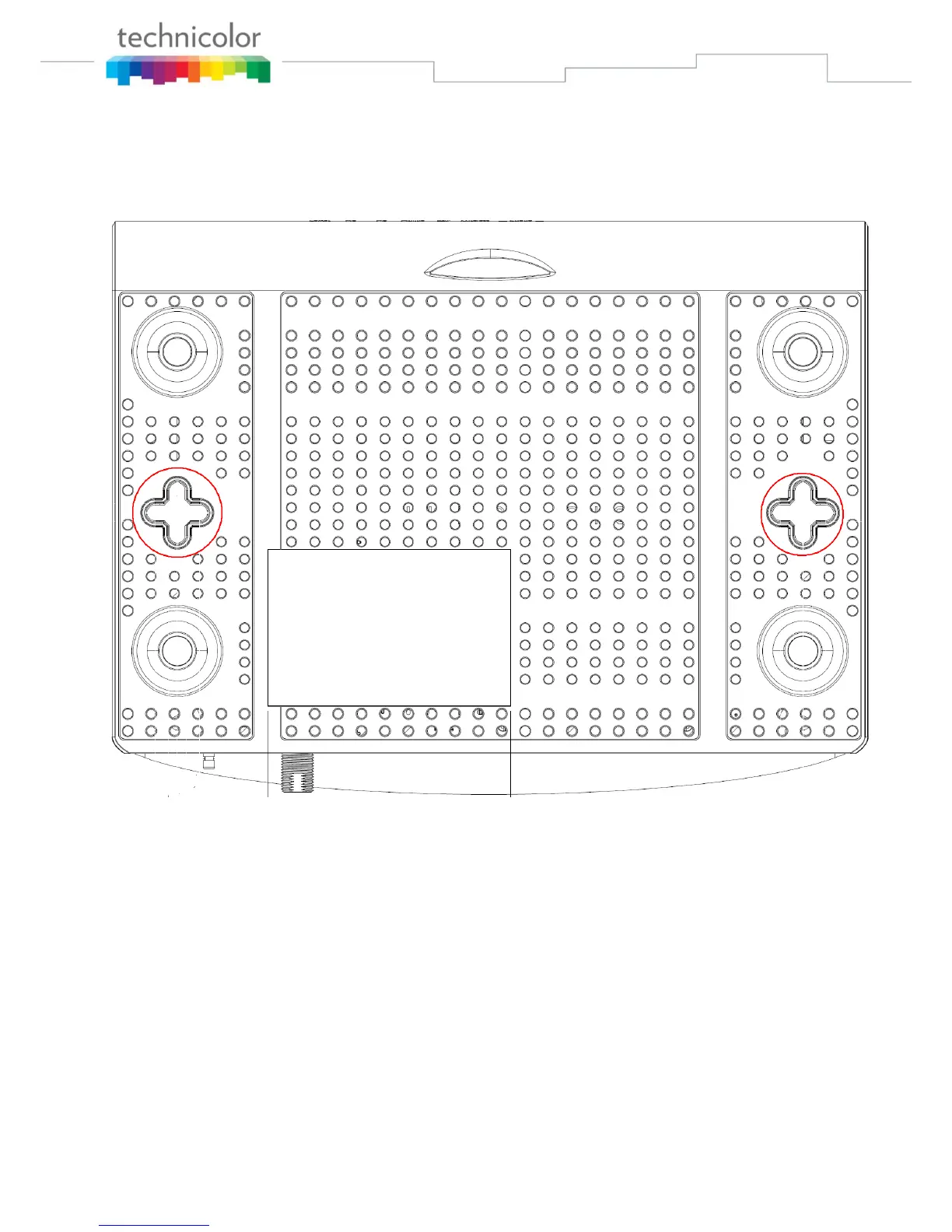

Fig. 1-4 Wall Mounting
To do this:
1. Ensure that the wall you use is smooth, flat, dry and sturdy and use the 2 screw holes which
are 101.6 mm (4 inches) apart from each other.
2. Fix the screws into wall, leaving their heads 3 mm (0.12 inch) clear of the wall surface.
3. Remove any connections to the unit and locate it over the screw heads. When in line, gently
push the unit on to the wall and move it downwards to secure.
