Technics RS-676US

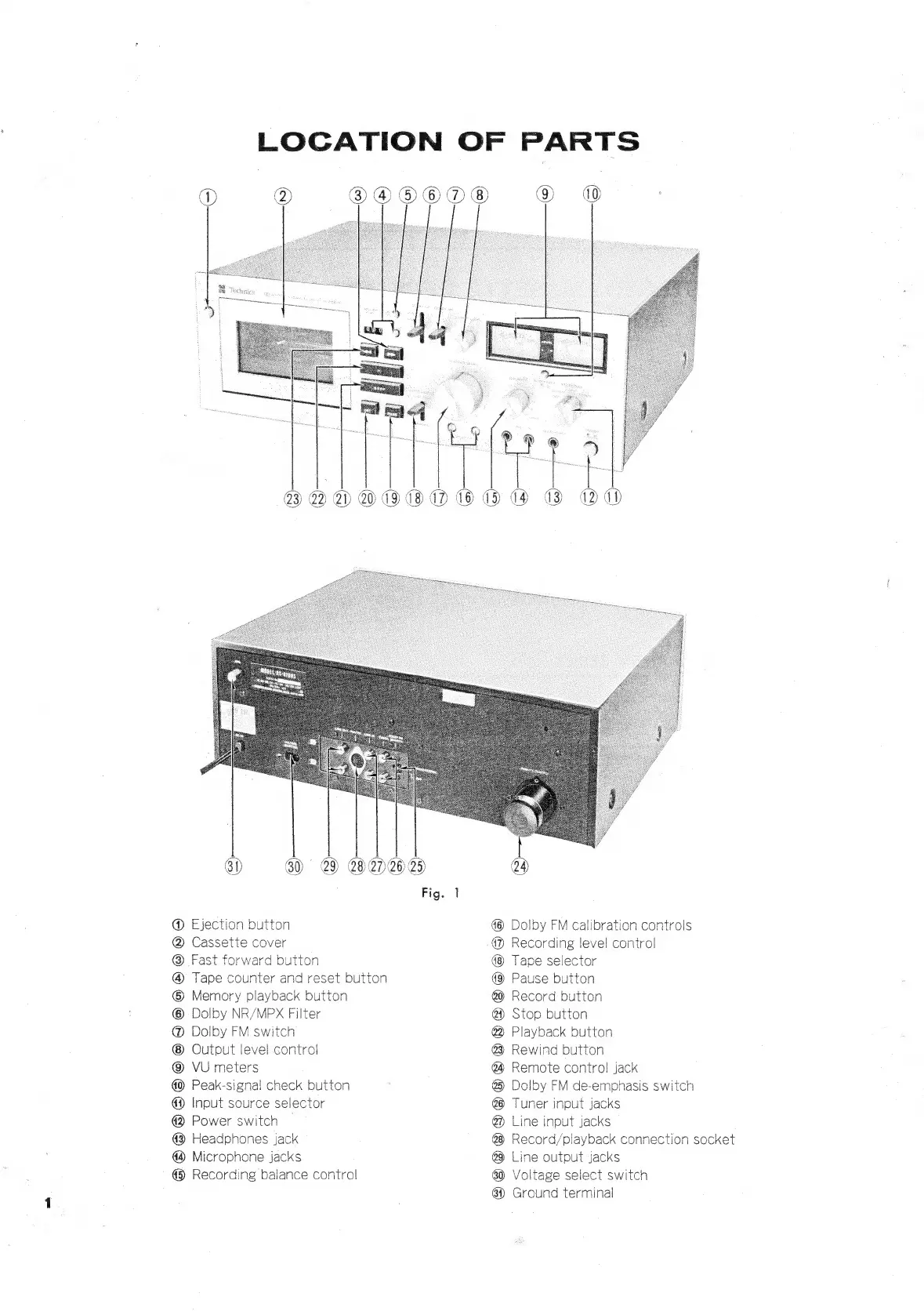

LOCATION OF PARTS
®
Q®@
@@OOO®
Q
@ Ejection button Dolby FM calibration controls
@ Cassette cover @ Recording level control
@ Fast forward button @ Tape selector
@ Tape counter and reset button Pause button
® Memory playback button @) Record button
© Dolby NR/MPX Filte @ Stop button
@ Dolby FM switch @ Playback button
Output level contro @ Rewind button
© VU meters @ Remote control jack
Peak-signal check button @) Dolby FM de-emphasis switch
@ Input source selector @) Tuner input jacks
@ Power switch @ Line input jacks
@ Headphones jack @ Record/playback connection socket
Microphone jacks @ Line output jacks
4) Recording balance control Voltage select switch
@) Ground terminal
