Technics RS-B555

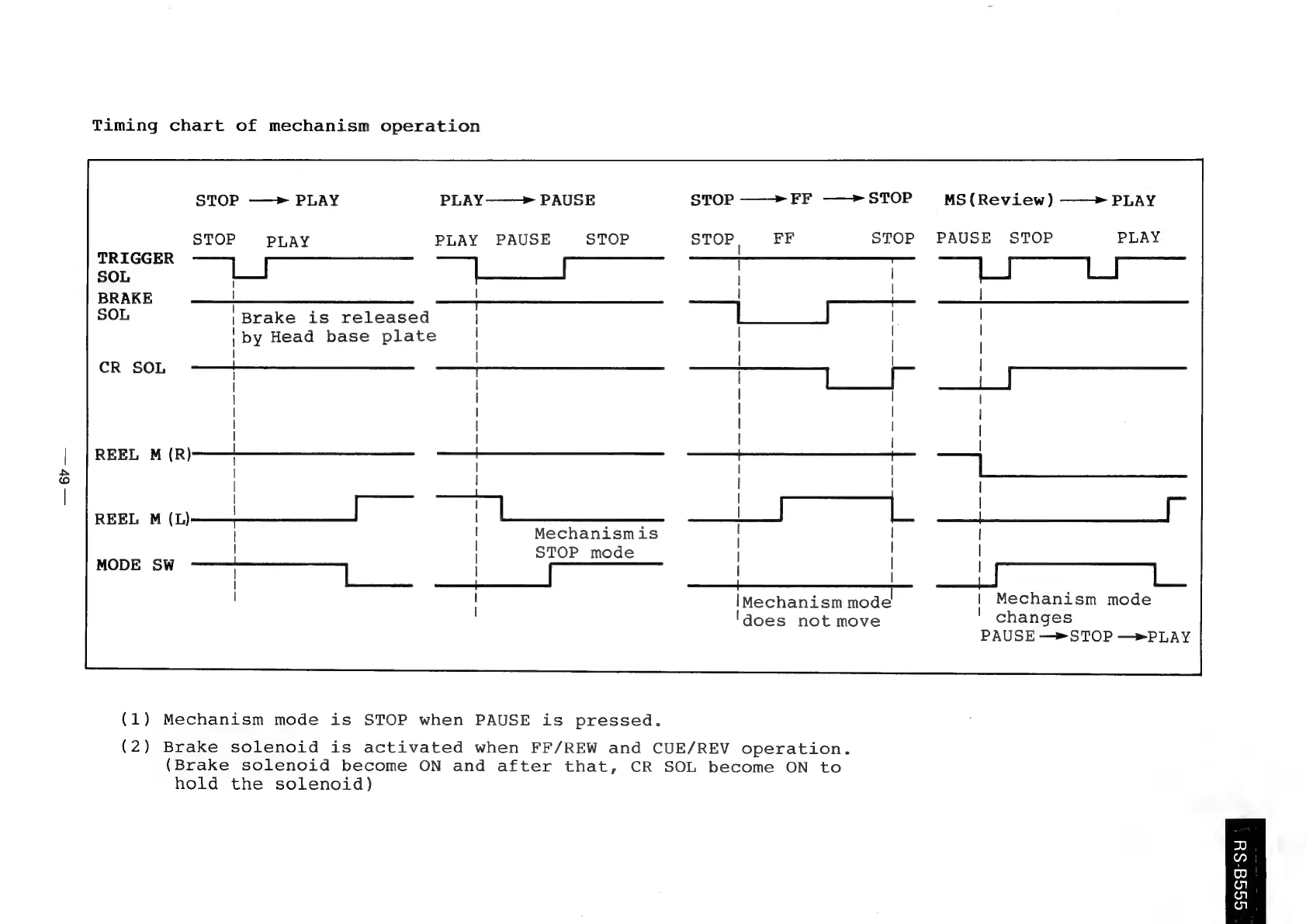

Timing chart of mechanism operation
STOP —-» PLAY PLAY ——» PAUSE STOP ——> FF —» STOP MS (Review) ——» PLAY
STOP
PLAY
PLAY
PAUSE
STOP
STOP
PAUSE
STOP
PLAY
TRIGGER
SOL
|
Comoe
BRAKE
a
SOL rake is released
y Head base plate
CR SOL
Mechanismis |
STOP mode |
|
—$
IMechanism mode Mechanism mode
does not move changes
PAUSE —»STOP —»PLAY
(1) Mechanism mode is STOP when PAUSE is pressed.
(2) Brake solenoid is activated when FF/REW and CUE/REV operation.
(Brake solenoid become ON and after that, CR SOL become ON to
hold the solenoid)
