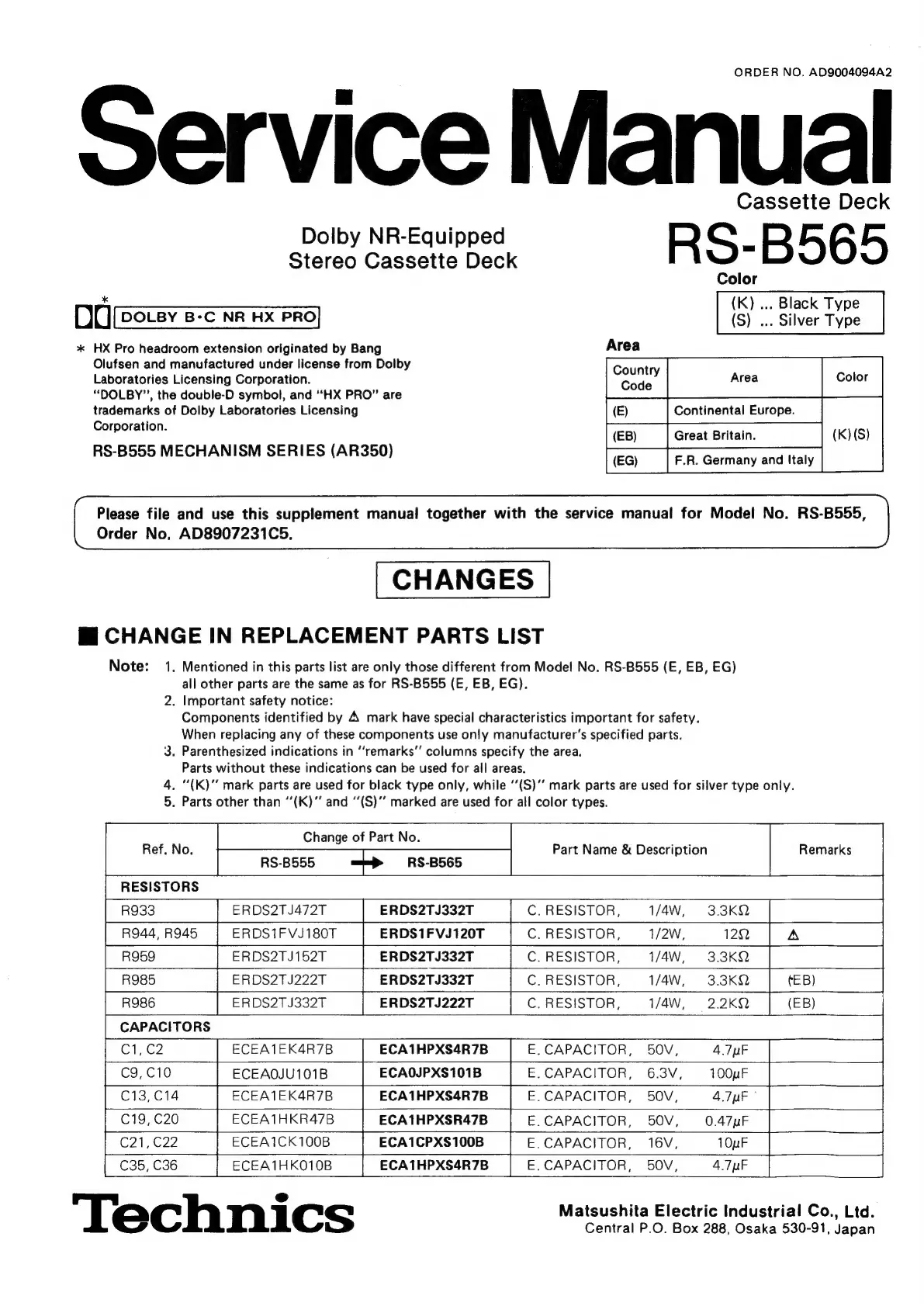

Technics RS-B555

ORDER NO. AD9004094A2
Service Manual
Cassette Deck
RS-B565
Color
(K) ... Black Type
(S) ... Silver Type
Dolby NR-Equipped
Stereo Cassette Deck
DO ster 6-c wa Ax PAO)
* HX Pro headroom extension originated by Bang
Olufsen and manufactured under license from Dolby
Laboratories Licensing Corporation.
“DOLBY”, the double-D symbol, and “HX PRO” are
trademarks of Dolby Laboratories Licensing
Corporation.
RS-B555 MECHANISM SERIES (AR350)
Area
Country
(K)(S)
(EG) F.R. Germany and Italy
Please file and use this supplement manual together with the service manual for Model No. RS-B555,
CHANGES
Mi CHANGE IN REPLACEMENT PARTS LIST
Note: 1. Mentioned in this parts list are only those different from Model No. RS-B555 (E, EB, EG)
all other parts are the same as for RS-B555 (E, EB, EG).
2. Important safety notice:
Components identified by A mark have special characteristics important for safety.
When replacing any of these components use only manufacturer’s specified parts.
3. Parenthesized indications in ‘‘remarks’’ columns specify the area.
Parts without these indications can be used for all areas.
4. “(K)” mark parts are used for black type only, while ‘’(S)'’ mark parts are used for silver type only.
5. Parts other than “(K)” and ‘(S)’’ marked are used for all color types.
Order No, AD8907231C5.
Change of Part No.
Ref, No. Part Name & Description Remarks
RS-B555 RS-B565
RESISTORS
R933 ERDS2TJ472T ERDS2TJ332T C. RESISTOR, 1/4W, = 3.38KQ
R944, R945 ERDS1FVJ180T ERDS1FVJ120T C. RESISTOR, 1/2W, 12Q A
ERDS2TJ152T ERDS2TJ332T C. RESISTOR, 1/4W, = 3.3KQ
R985 ERDS2TJ222T ERDS2TJ332T C. RESISTOR, 1/4W, =3.3KQ tEB)
| R986 ERDS2TJ332T ERDS2TJ222T C. RESISTOR, 1/4W, = 2.2KQ (EB)
CAPACITORS
C1, C2 ECEA1EK4R7B ECA1HPXS4R7B E.CAPACITOR, 50V, 4.7 uF
c9,C10 ECEAQJU101B ECA0JPXS101B E.CAPACITOR, 6.3V, 100yF
C13, C14 ECEA1EK4R7B ECA1HPXS4R7B E.CAPACITOR, 50V, 4.7 pF
C19, C20 ECEA1HKR47B ECA1HPXSR47B E.CAPACITOR, 50V, 0.47 uF
C21, C22 ECEA1CK100B ECA1CPXS100B E.CAPACITOR, 16V, 10pF
| 65, C36 ECEA1HKO10B ECA1HPXS4R7B E.CAPACITOR, 50V, 4.7 pF
"Technics
Matsushita Electric Industrial Co., Ltd.
Central P.O. Box 288, Osaka 530-91, Japan
