Technics RS-BX606

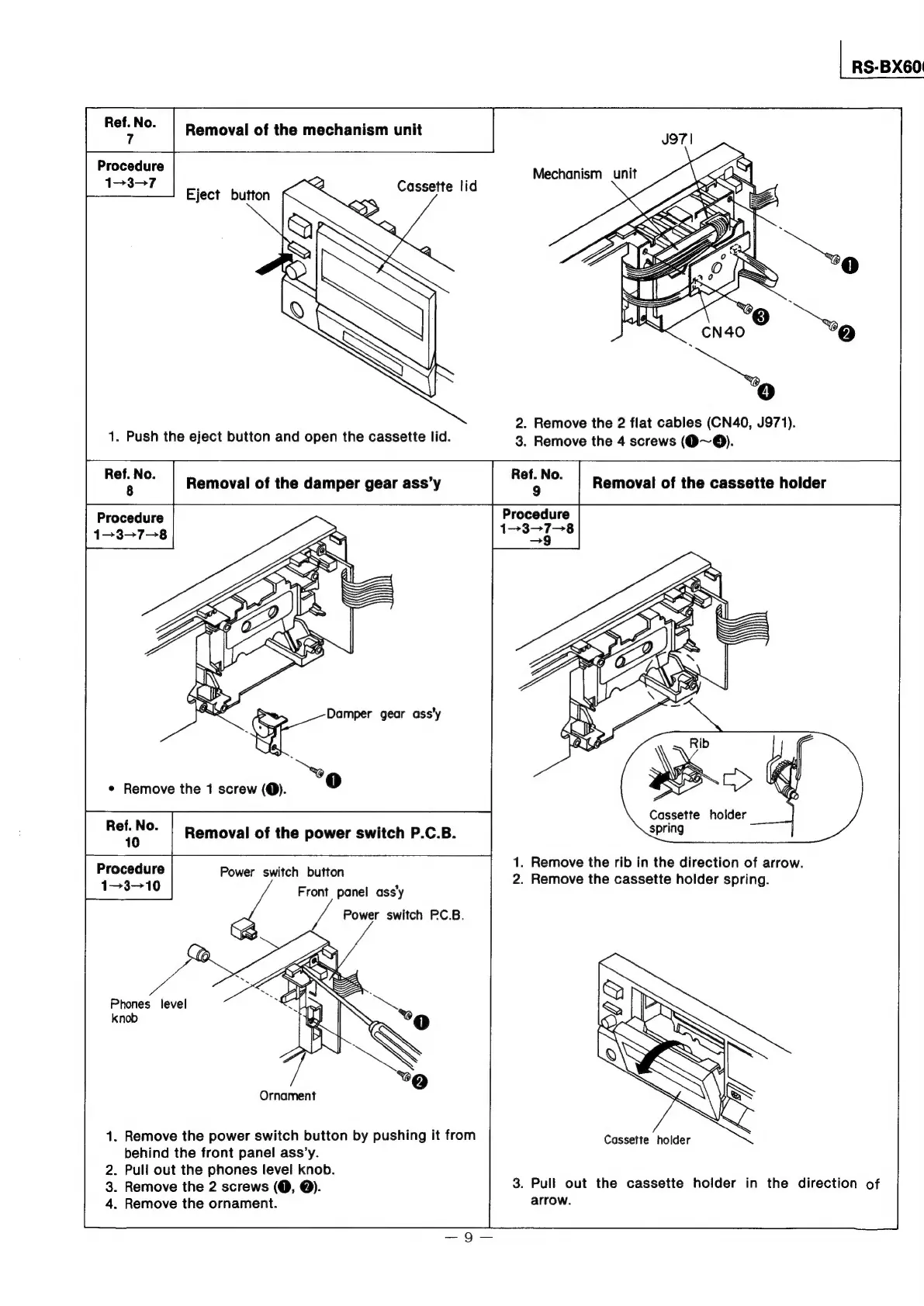

Removal of the mechanism unit
Procedure
1357 ;
Eject button
1. Push the eject button and open the cassette lid.
Procedure
1—-3--7--8
Power switch button
Front panel ass'y
Phones level
knob
Ornament
. Remove the power switch button by pushing it from
behind the front panel ass’y.
. Pull out the phones level knob.
. Remove the 2 screws @, @).
. Remove the ornament.
2. Remove the 2 flat cables (CN40, J971).
3. Remove the 4 screws (@~®).
aes Removal of the cassette holder
Procedure
tos7 8
Cassette holder
spring
1. Remove the rib in the direction of arrow.
2. Remove the cassette holder spring.
Cassette holder
| RS-BX601
3. Pull out the cassette holder in the direction of
arrow.
