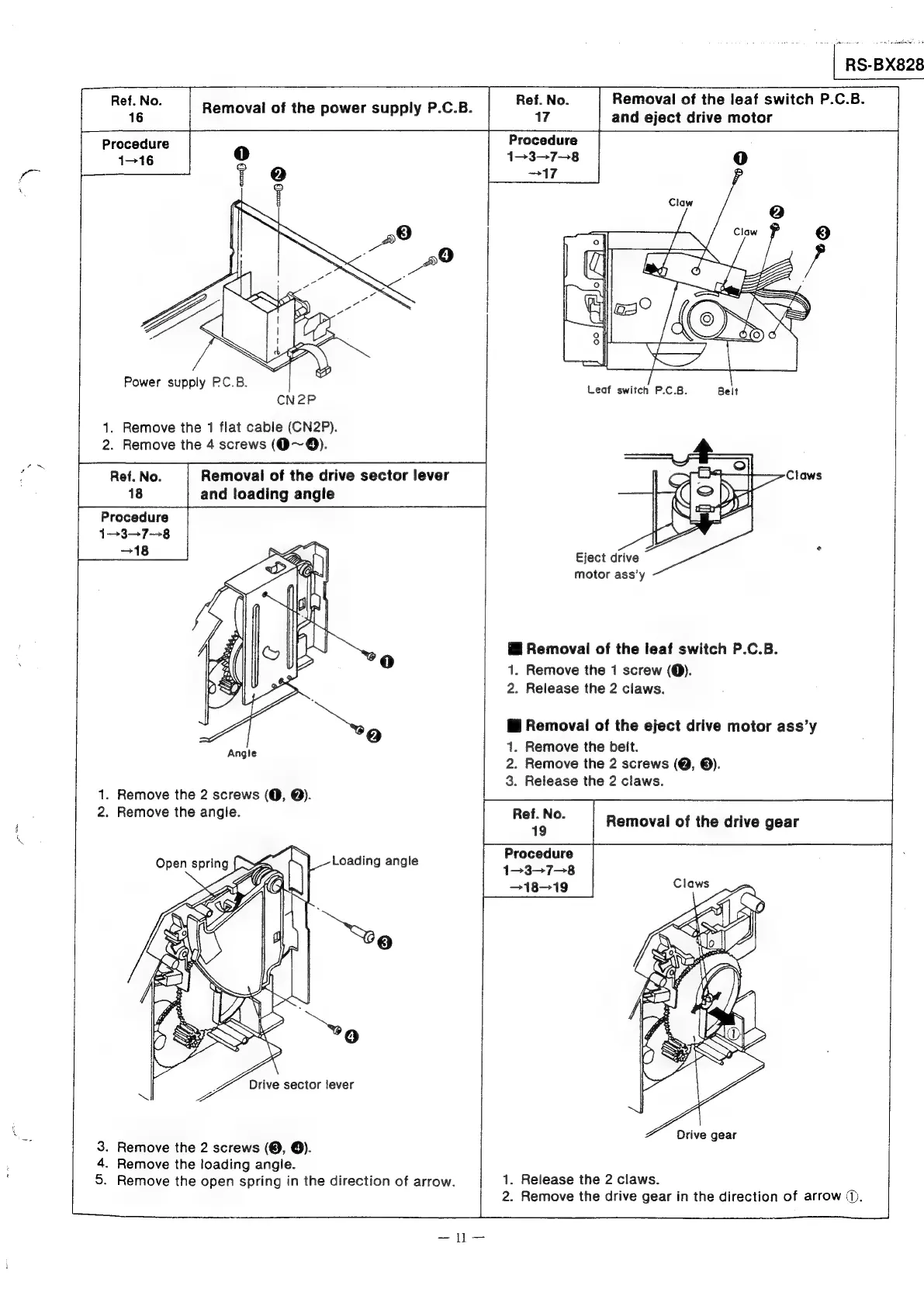

Technics RS-BX828 - Switch and Motor Component Removal

Procedure
1-16
Power supply PC.B.
Procedure
1-37-58
—18
1. Remove the 2 screw
2. Remove the angle.
a ee in A ED
CN2P
1. Remove the 1 flat cable (CN2P).
2. Remove the 4 screws (0~@).
Ret. No. Removai of the drive sector lever
18 and loading angle
s (O, @).
Loading angle
Drive sector lever
3. Remove the 2 screws (@, ©).
4. Remove the loading angle.
5. Remove the open spring in the direction of arrow.
and eject drive motor
Procedure
1-3-—7—8
—17
Leaf switch P.C.8. Belt
Eject drive
motor ass’y
@ Removal of the leaf switch P.C.B.
1. Remove the 1 screw (@).
2. Release the 2 claws.
Hi Removal of the eject drive motor ass’y
1. Remove the belt.
2. Remove the 2 screws (@, ©).
3. Release the 2 claws.
ae
Removal
of
the
drive
gear
Procedure
18-19
Claws
Drive gear
1. Release the 2 claws.
2. Remove the drive gear in the direction of arrow (1.
ed
Removal of the leaf switch P.
se
RS-BX828
C.B.
