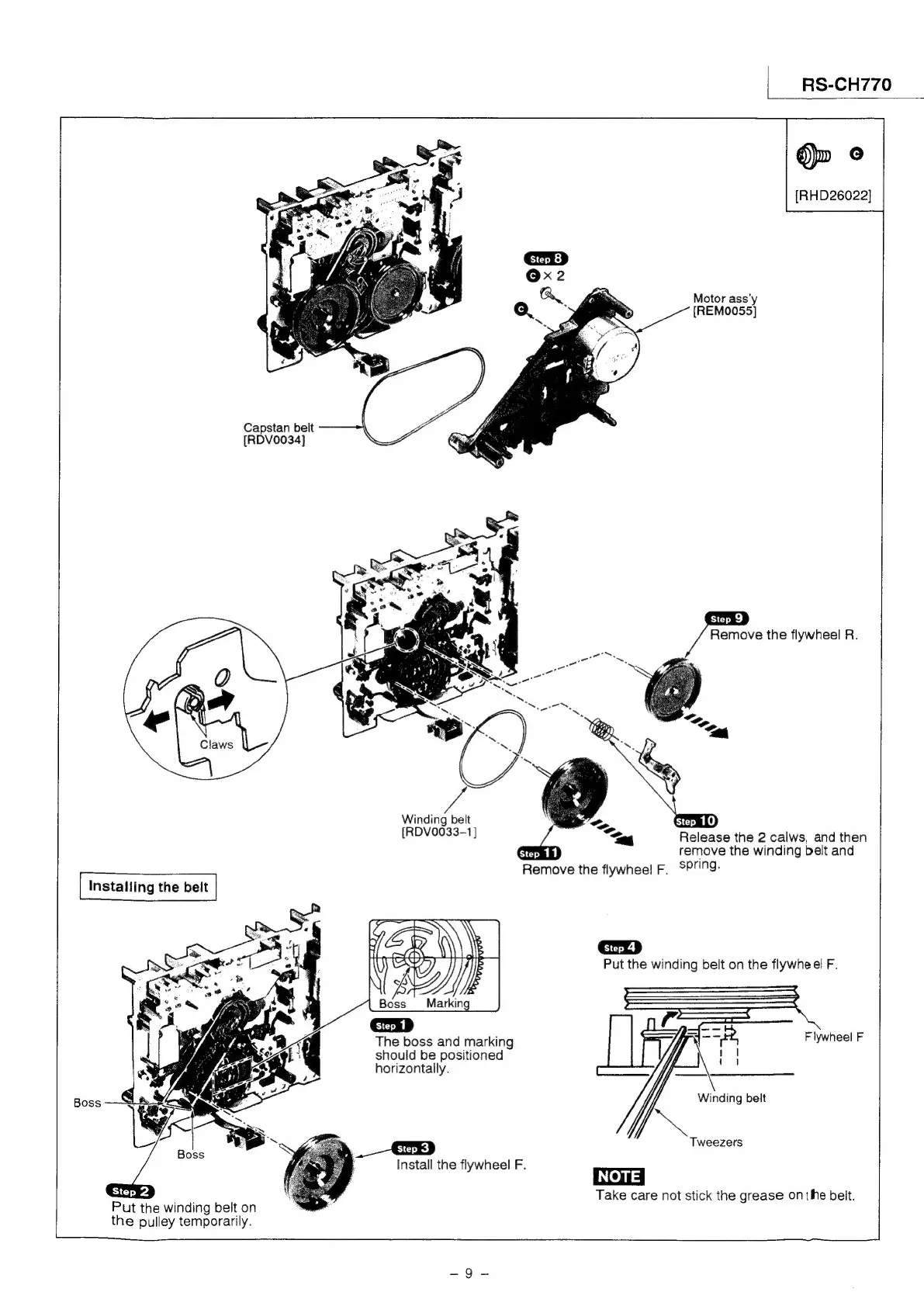

Technics RS-CH770 - Page 9

RS-CH770
@)p ©
[RHD26022]
Motor ass'y
[REM0055]
Capstan belt
[RDV0034]
Remove the flywheel R.
Winding belt
[RDV0033-1] | Release the 2 calws, and then
step
11
remove
the
winding
belt
and
Remove
the
flywheel
F,
SPN9-
Put the winding belt on the flywhe el F.
Veh
The boss and marking
should be positioned
horizontally.
F lywheel F
Winding belt
Tweezers
Install the flywheel F.
NOTE
Take care not stick the grease onthe belt.
Put the winding belt on
the pulley temporarily.
