Technics RS-M10 - Page 13

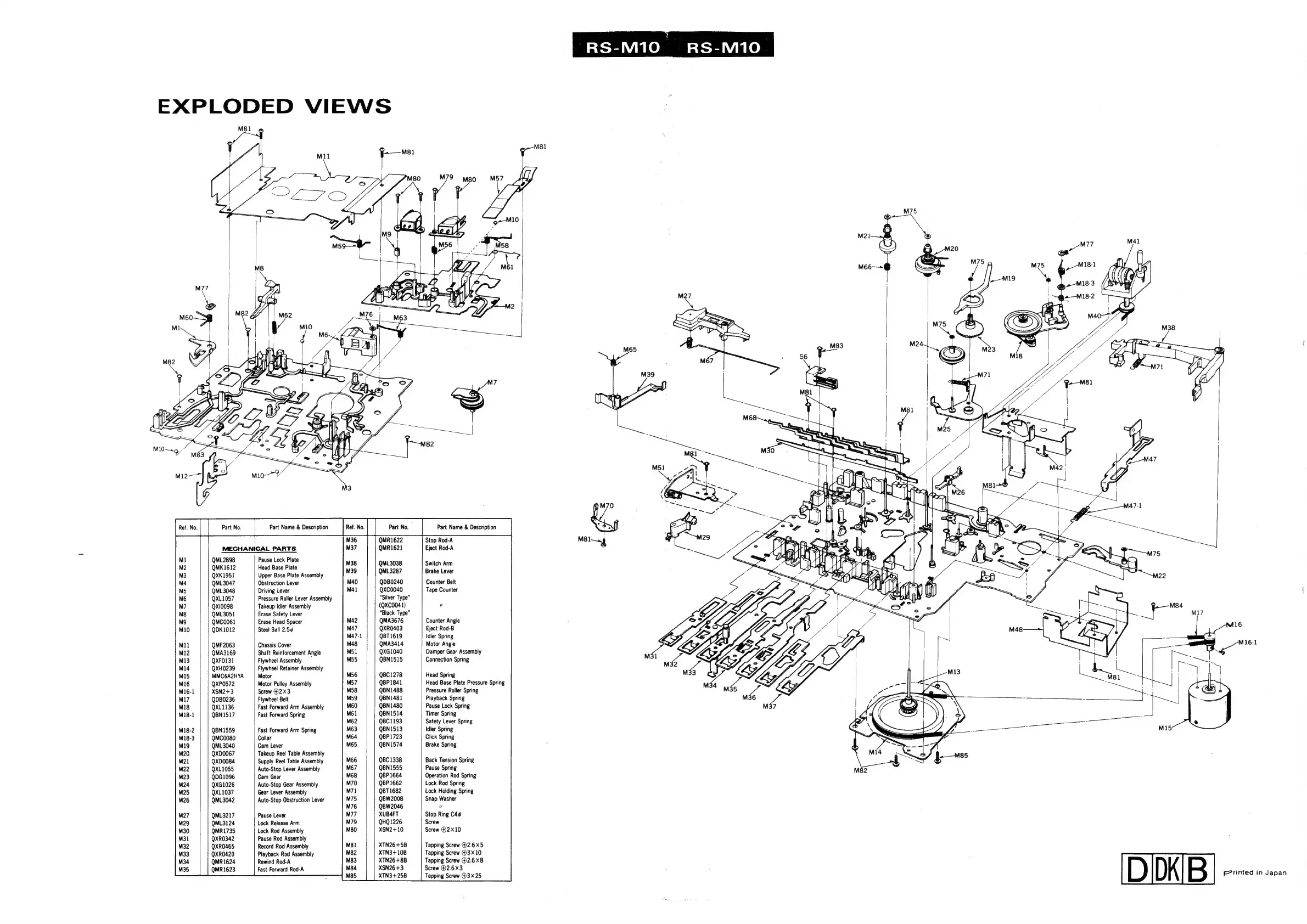

EXPLODED VIEWS
QML2898
QMK1612
QXK1951
QML3047
QML3048
QXL1057
Qxt0098
QML3051
QMC0061
QDK1012
QMF2063
QMA3169
QXFO131
QXxH0239
MMC6A2HYA
QXP0572
XSN2+3
QDB0236
QXL1136
QBN1517
QBN1559
QMC0080
QML3040
QXD0067
QxD0084
QXL1055
QDG1096
QxG1026
QXL1037
QML3042
QML3217
QML3124
QMR1735
QXRO0342
QXRO465
QXR0420
QMR1624
QMR1623
Part Name & Description Ref. No.
MECHANICAL PARTS
Pause Lock Plate
Head Base Plate
Upper Base Plate Assembly
Obstruction Lever
Driving Lever
Pressure Roller Lever Assembly
Takeup Idler Assembly
Erase Safety Lever
Erase Head Spacer
Steel Ball 2.5¢
Chassis Cover
Shaft Reinforcement Angle
Flywheel Assembly
Flywheel Retainer Assembly
Motor
Motor Pulley Assembly
Screw 2x3
Flywheel Belt
Fast Forward Arm Assembly
Fast Forward Spring
Fast Forward Arm Spring
Collar
Cam Lever
Takeup Reel Table Assembly
Supply Ree! Table Assembly
Auto-Stop Lever Assembly
Cam Gear
Auto-Stop Gear Assembly
Gear Lever Assembly
Auto-Stop Obstruction Lever
Pause Lever
Lock Release Arm
Lock Rod Assembly
Pause Rod Assembly
Record Rod Assembly
Playback Rod Assembly
Rewind Rod-A
Fast Forward Rod-A
QMR1622
QMR1621
QML3038
QML3287
QDB0240
QXxC0040
“Silver Type”
(QXC0041)
“Black Type”
QMA3676
QXR0403
QBT1619
QMA3414
QXG1040
QBN1515
QBC1278
QBP 1841
QBN 1488
QBN1481
QBN 1480
QBN1514
QBC1193
QBN1513
QBP1723
QBN1574
QBC1338
QBN1555
QBP 1664
QBP 1662
QBT 1682
QBW2008
QBW2046
XUB4FT
QHQ1226
XSN2+10
XTN26+5B
XTN3+10B
XTN26+8B
XSN26+3
XTN3+25B
Part Name & Description
Stop Rod-A
Eject Rod-A
Switch Arm
Brake Lever
Counter Belt
Tape Counter
”
Counter Angle
Eject Rod-B
Idler Spring
Motor Angle
Damper Gear Assembly
Connection Spring
Head Spring
Head Base Plate Pressure Spring
Pressure Roller Spring
Playback Spring
Pause Lock Spring
Timer Spring
Safety Lever Spring
Idler Spring
Click Spring
Brake Spring
Back Tension Spring
Pause Spring
Operation Rod Spring
Lock Rod Spring
Lock Holding Spring
Snap Washer
”
Stop Ring C4¢
Screw
Screw ©2X10
Tapping Screw ®2.6x5
Tapping Screw ©3X10
Tapping Screw ©2.6X8
Screw ®2.6X3
Tapping Screw 3X25
M70
MB1—.§
an
DIDK)
Ff’ rinted in Japan.
