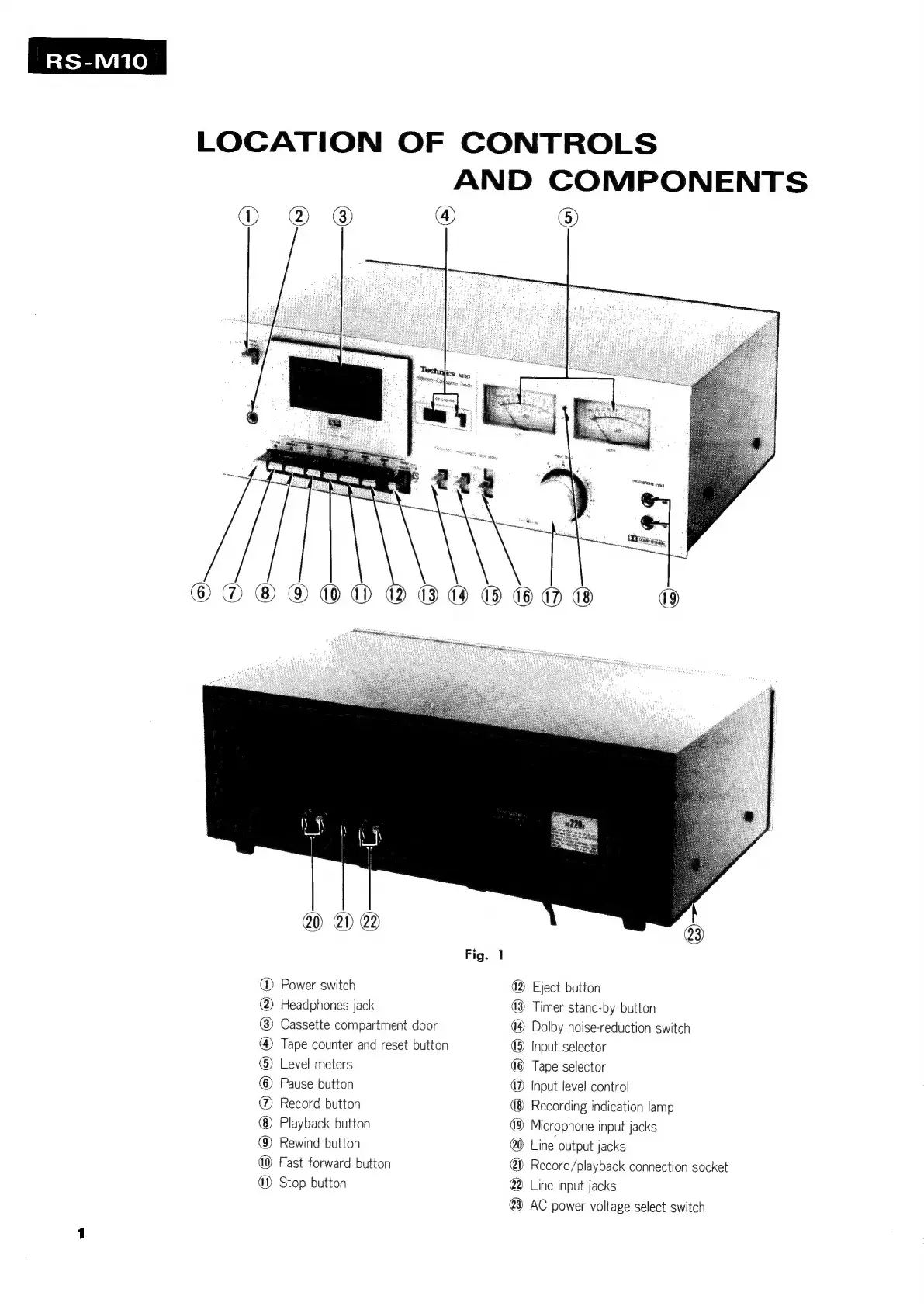

LOCATION
@ Power switch
Headphones jack
Cassette compartment door
Tape counter and reset button
Level meters
@® Pause button
@ Record button
Playback button
@ Rewind button
d® Fast forward button
@® Stop button
CRORES)
eas
SOSOSQSoQ®e
OF CONTROLS
AND
@
COMPONENTS
©
Eject button
Timer stand-by button
Dolby noise-reduction switch
nput selector
Tape selector
nput level control
Recording indication lamp
Microphone input jacks
Line output jacks
Record/playback connection socket
Line input jacks
@) AC power voltage select switch
