REPLACEMENT PARTS LIST

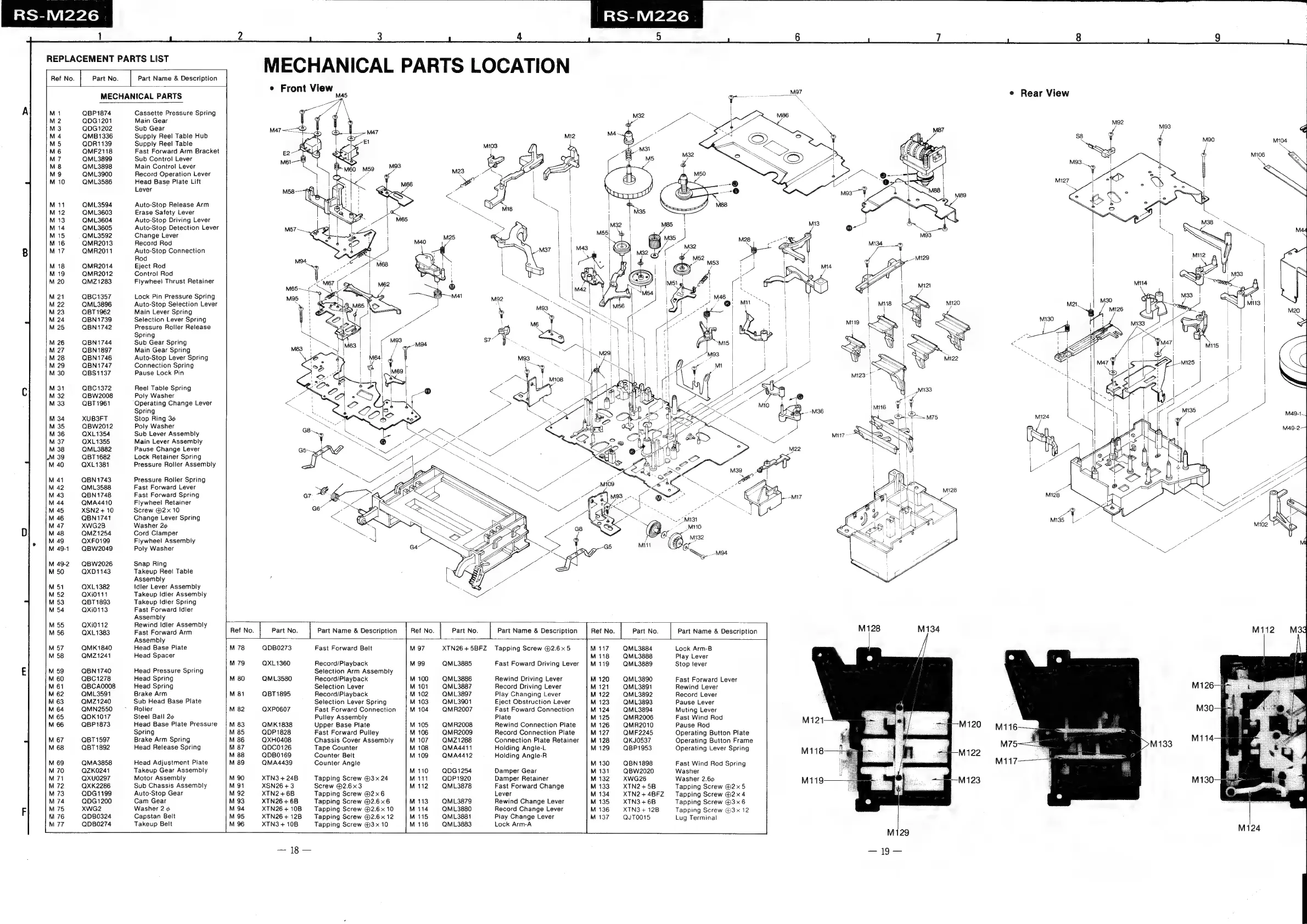

MECHANICAL PARTS LOCATION
Ref No. Part No. | Part Name & Description
e Front View ;
MECHANICAL
PARTS
M45
e
Rear
View
M1 QBP1874 Cassette Pressure Spring
M2 QDG1201 Main Gear
M3 QDG1202 Sub Gear M47
M4 QMB1336 Supply Reel Table Hub
M5 QDR1139 Supply Reel Table
M6 QMF2118 Fast Forward Arm Bracket
M7 QML3899 Sub Control Lever el
M8 QML3898 Main Control Lever
M9 QML3900 Record Operation Lever
M 10 QML3586 Head Base Plate Lift
Lever
M11 QML3594 Auto-Stop Release Arm
M 12 QML3603 Erase Safety Lever
M 13 QML3604 Auto-Stop Driving Lever
M 14 QML3605 Auto-Stop Detection Lever
M 15 QML3592 Change Lever
M 16 QMR2013 Record Rod
M 17 QMR2011 Auto-Stop Connection
Rod
M 18 QMR2014 Eject Rod
M 19 QMR2012 Control Rod
M 20 QMZ1283 Flywheel Thrust Retainer
M 21 QBC1357 Lock Pin Pressure Spring
M 22 QML3896 Auto-Stop Selection Lever
M 23 QBT1962 Main Lever Spring
M 24 QBN1739 Selection Lever Spring
M 25 QBN1742 Pressure Roller Release
Spring
M 26 QBN1744 Sub Gear Spring
M 27 QBN1897 Main Gear Spring
M 28 QBN1746 Auto-Stop Lever Spring
M 29 QBN1747 Connection Spring
M 30 QBS1137 Pause Lock Pin
M 31 QBC1372 Reel Table Spring
M 32 QBW2008 Poly Washer
M 33 QBT1961 Operating Change Lever
Spring
M 34 XUB3FT Stop Ring 3¢
M 35 QBW2012 Poly Washer
M 36 QXL1354 Sub Lever Assembly
M 37 QXL1355 Main Lever Assembly
M 38 QML3882 Pause Change Lever
LM 39 QBT 1682 Lock Retainer Spring
M 40 QXL1381 Pressure Roller Assembly
M 41 QBN1743 Pressure Roller Spring
M 42 QML3588 Fast Forward Lever
M 43 QBN1748 Fast Forward Spring
M 44 QMA4410 Flywheel Retainer
M 45 XSN2 + 10 Screw @2x 10
M 46 QBN1741 Change Lever Spring
M 47 XWG2B Washer 2¢
M 48 QMZ1254 Cord Clamper
M 49 QXF0199 Flywheel Assembly
M 49-1 QBW2049 Poly Washer
M 49-2. QBW2026 Snap Ring
M 50 QXD1143 Takeup Reel Table
Assembly
M 51 QXL1382 Idler Lever Assembly
M 52 QXi0111 Takeup Idler Assembly
M 53 QBT1893 Takeup Idler Spring
M 54 QxXxi0113 Fast Forward Idler
Assembly
M 55 Qxi0112 Rewind Idler Assembly
M 56 QXL1383 Fast Forward Arm Ref No. | Part No. | Part Name & Description Ref No. Part No. | Part Name & Description Ref No. Part No. | Part Name & Description
Assembly
M 57 QMK1840 Head Base Plate M 78 QDB0273 Fast Forward Belt M 97 XTN26+5BFZ Tapping Screw @2.6x5 M 117 QML3884 Lock Arm-B
M58 QM21241 Head Spacer M118 QML3888 Play Lever
M 79 QXL1360 Record/Playback M 99 QML3885 Fast Foward Driving Lever | M 119 QML3889 Stop lever
M 59 QBN1740 Head Pressure Spring Selection Arm Assembly
M 60 QBC1278 Head Spring M 80 QML3580 Record/Playback M 100 QML3886 Rewind Driving Lever M 120 QML3890 Fast Forward Lever
M61 QBCA0008 Head Spring Selection Lever M101 QML3887 Record Driving Lever M121. QML3891 Rewind Lever
M 62 QML3591 Brake Arm M 81 QBT1895 Record/Playback M 102 QML3897 Play Changing Lever M 122 QML3892 Record Lever
M 63 QMZ1240 Sub Head Base Plate Selection Lever Spring M103. QML3901 Eject Obstruction Lever M123. QML3893 Pause Lever
M 64 QMN2550 Roller M 82 QXP0607 Fast Forward Connection M 104 QMR2007 Fast Foward Connection M 124 QML3894 Muting Lever
M65 QDK1017 Steel Ball 2¢ Pulley Assembly Plate M125 QMR2006 Fast Wind Rod
M 66 QBP1873 Head Base Plate Pressure | M 83 QMK1838 Upper Base Plate M105 =QMR2008 Rewind Connection Plate M126 QMR2010 Pause Rod
Spring M 85 QDP1828 Fast Forward Pulley M 106 QMR2009 Record Connection Plate M 127 QMF2245 Operating Button Plate
M 67 QBT1597 Brake Arm Spring M 86 QXH0408 Chassis Cover Assembly M 107 QMZ1288 Connection Plate Retainer | M 128 QKJ0537 Operating Button Frame
M 68 QBT1892 Head Release Spring M 87 QDC0126 Tape Counter M 108 QMA4411 Holding Angle-L M 129 QBP1953 Operating Lever Spring
M 88 QDB0169 Counter Belt M 109 QMA4412 Holding Angle-R
M 69 QMA3858 Head Adjustment Plate M 89 QMA4439 Counter Angle ; M 130 QBN 1898 Fast Wind Rod Spring
M 70 Q2k0241 Takeup Gear Assembly M110 QDG1254 Damper Gear M131 QBW2020 Washer
M71 QXxXU0297 Motor Assembly M 90 XTN3 + 24B Tapping Screw @3 x 24 M111 QDP1920 Damper Retainer M 132 XWG26 Washer 2.66
M 72 QXK2286 Sub Chassis Assembly M91 XSN26 +3 Screw @©2.6x3 M112 QML3878 Fast Forward Change M1330 XTN2+5B Tapping Screw @2x5
M 73 QDG1199 Auto-Stop Gear M 92 XTN2+6B Tapping Screw ®2x6 Lever M134. XTN2+4BFZ Tapping Screw @2x4
M 74 QDG1200 Cam Gear M 93 XTN26 + 6B Tapping Screw @2.6x6 M 113 QML3879 Rewind Change Lever M 135 XTN3 + 6B Tapping Screw @3x6
M 75 xXwG2 Washer 2 @ M 94 XTN26+10B Tapping Screw @2.6x 10 M 114 QML3880 Record Change Lever M 136 XTN3 + 12B Tapping Screw @3~x 12
M 76 QDB0324 Capstan Belt M 95 XTN26 + 12B Tapping Screw @2.6x 12 M 115 QML3881 Play Change Lever M 137 QJT0015 Lug Terminal
M77 QDB0274 Takeup Belt M 96 XTN3 + 10B Tapping Screw @3~x 10 M116 QML3883 Lock Arm-A
