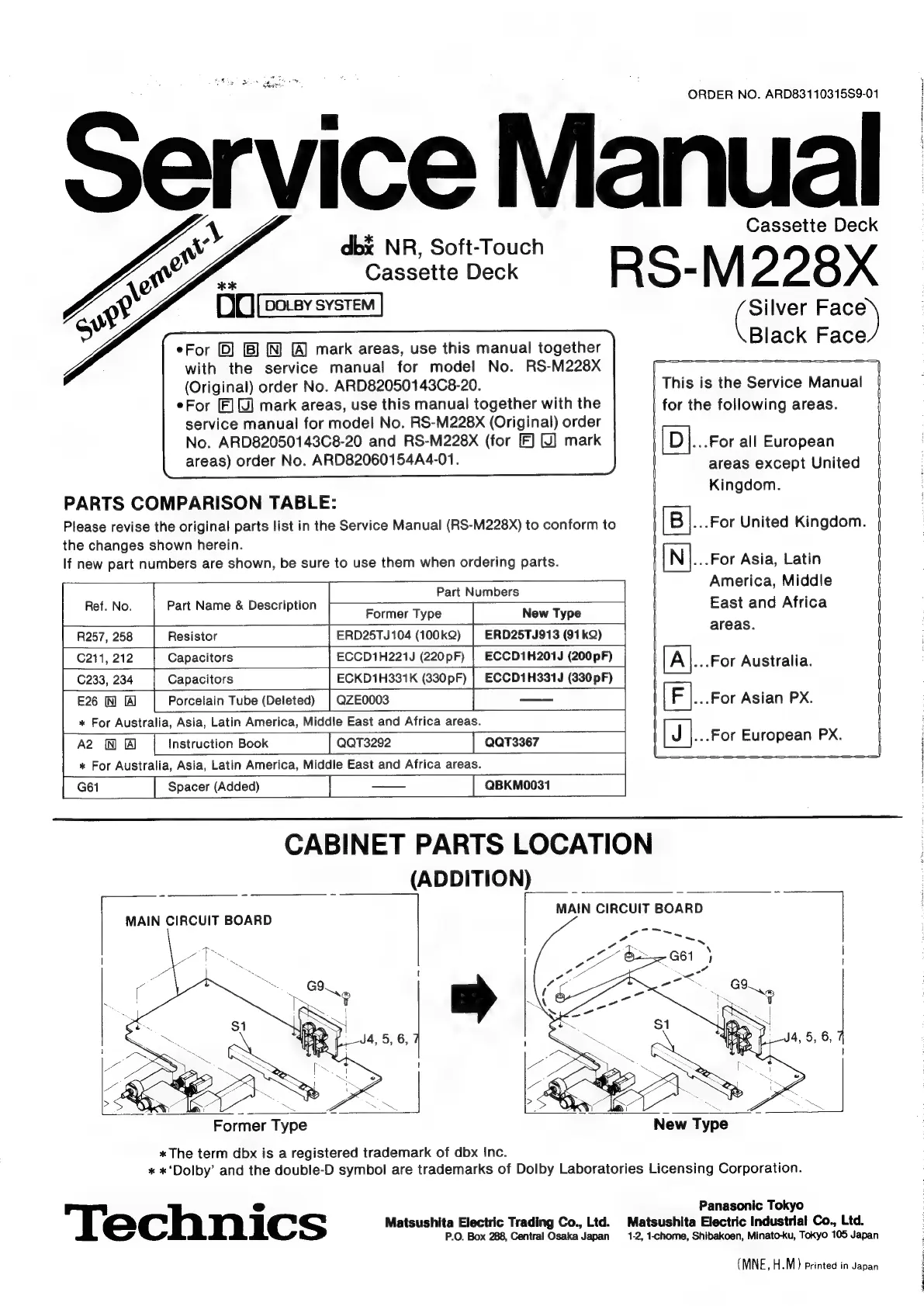

Technics RS-M228X - Page 27

S$ igs
wet
dbx NR, Soft-Touch
Cassette Deck
**
DO (eaavsvsrew)
eFor IN) [A] mark areas, use this manual together
with the service manual for model No. RS-M228X
(Original) order No. ARD82050143C8-20.
eFor mark areas, use this manual together with the
service manual for model No. RS-M228X (Original) order
No. ARD82050143C8-20 and RS-M228xX (for mark
areas) order No. ARD82060154A4-01.
PARTS COMPARISON TABLE:
Please revise the original parts list in the Service Manual (RS-M228X) to conform to
the changes shown herein.
If new part numbers are shown, be sure to use them when ordering parts.
Part Numbers
Part Name & Description
Former Type New Type
ERD25TJ104 (100kQ) | ERD25TJ913 (91kQ)
ECCD1H221J (220pF) | ECCD1H201J (200pF)
C233,
234
|
Capacitors
ECKD1H331K
(330pF)
|
ECCD1H331J
(330pF)
E26 N Al Porcelain Tube (Deleted) | QZE0003
R257, 258
ORDER NO. ARD83110315S9-01
vice
Manual
Cassette Deck
RS-M228X
Silver ee)
Black Face
>
This is the Service Manual
for the following areas.
Dl.
For all European
areas except United
Kingdom.
..For United Kingdom.
..For Asia, Latin
America, Middle
East and Africa
areas.
..For Australia.
..For Asian PX.
* For Australia, Asia, Latin America, Middle East and Africa areas.
A2 W @ | Instruction Book | aars292 | aaT3367
* For Australia, Asia, Latin America, Middle East and Africa areas.
..For European PX.
G61 | Spacer (Added) | ‘| aBkmoos1
CABINET PARTS LOCATION
: : (ADDITION) ;
nae
BOARD
|
BANU
eee
| J4, 5, 6, 7
Former Type
* The term dbx is a registered trademark of dbx Inc.
* *‘Dolby’ and the double-D symbol are trademarks of Dolby Laboratori
"Technics
Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central Osaka Japan
New Type
es Licensing Corporation.
Panasonic Tokyo
Matsushita Electric Industrial Co., Ltd.
1-2, 1-chome, Shibakoen, Minato-ku, Tokyo 105 Japan
