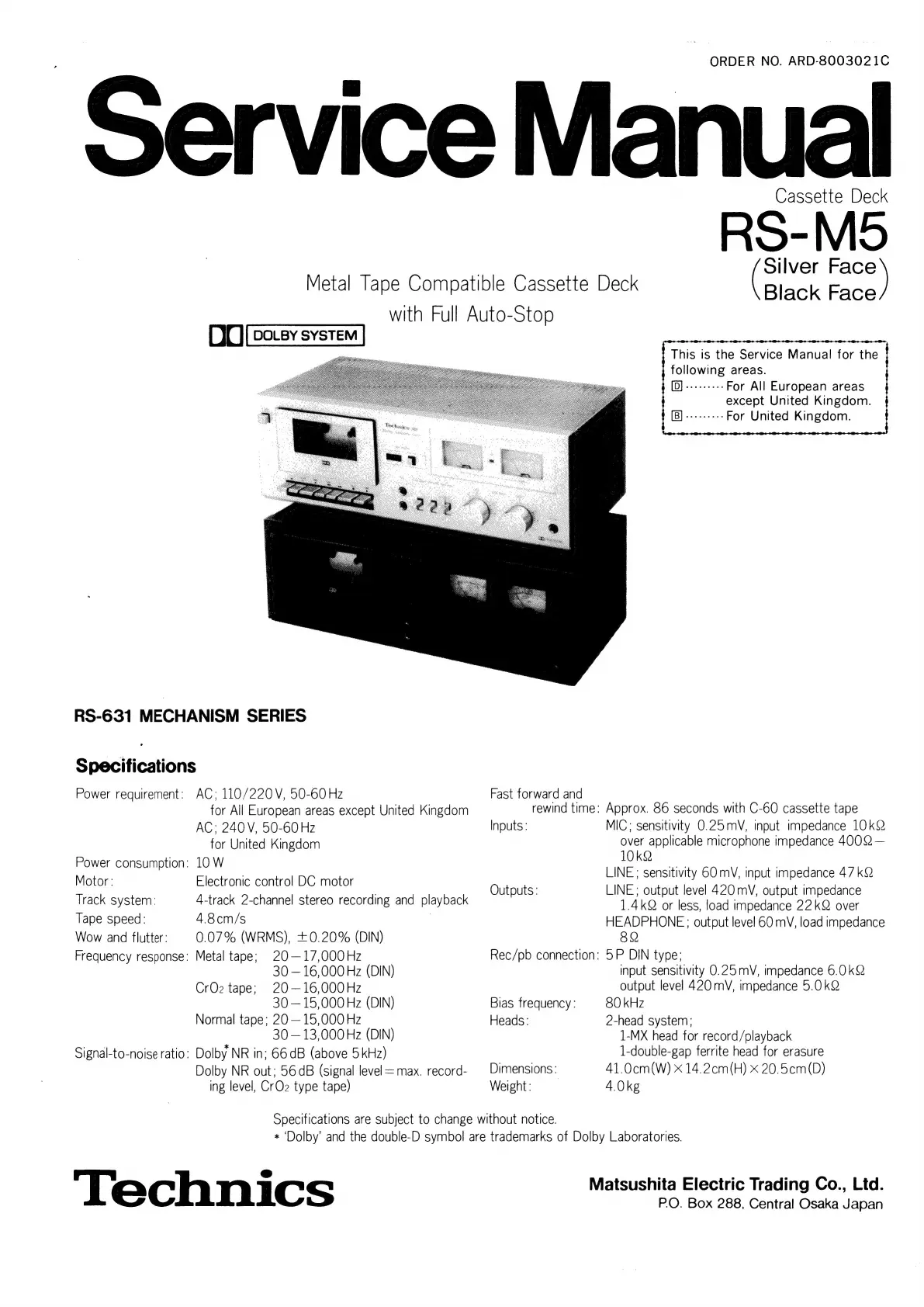

Technics RS-M5 - Page 2

Metal Tape Compatible Cassette Deck
with Full Auto-Stop
DO (oocevsverew)
RS-631 MECHANISM SERIES
Specifications
Power requirement: AC; 110/220 V, 50-60 Hz
for All European areas except United Kingdom
AC; 240V, 50-60 Hz
for United Kingdom
Power consumption: 10 W
Motor: Electronic control DC motor
Track system: 4-track 2-channel stereo recording and playback
Tape speed: 4. 8cm/s |
Wow and flutter: 0.07% (WRMS), £0.20% (DIN)
Frequency response: Metal tape; 20—17,000HZz
30 — 16,000 Hz (DIN)
CrOz tape; 20—16,000Hz
30 — 15,000 Hz (DIN)
Normal tape; 20 — 15,000 Hz
30 — 13,000 Hz (DIN)
Dolby NR in: 66dB (above 5kHz)
Dolby NR out; 56dB (signal level = max. record-
ing level, CrO2 type tape)
Signal-to-noise ratio:
ervice Manual
ORDER NO. ARD-8003021C
Cassette Deck
- i
This is the Service Manual for the
following areas.
For All European areas
except United Kingdom.
For United Kingdom.
Fast forward and
rewind time: Approx. 86 seconds with C-60 cassette tape
Inputs : MIC; sensitivity 0.25mV, input impedance 10kQ2
over applicable microphone impedance 4002 —
10kQ
LINE; sensitivity 60 mV, input impedance 47 k2
Outputs : LINE; output level 420 mV, output impedance
1.4kQ or less, load impedance 22k over
HEADPHONE ; output level 60 mV, load impedance
8 Q
Rec/pb connection: 5P DIN type:
Bias frequency :
input sensitivity 0.25 mV, impedance 6.0k2
output level 420 mV, impedance 5.0 kQ
80 kHz
Heads: 2-head system:
1-MX head for record/playback
1-double-gap ferrite head for erasure
Dimensions: A1.Ocm(W) x 14.2cm(H) x 20.5cm(D)
Weight: 4 Okg
Specifications are subject to change without notice.
« ‘Dolby’ and the double-D symbol are trademarks of Dolby Laboratories.
