RS-X102
Tape deck 1
STEREO DOUBLE CASSETTE DECK
Act
mae
Tape deck 2
CEB die ac2
okey ne eee} Toe)
oo. SE Ec

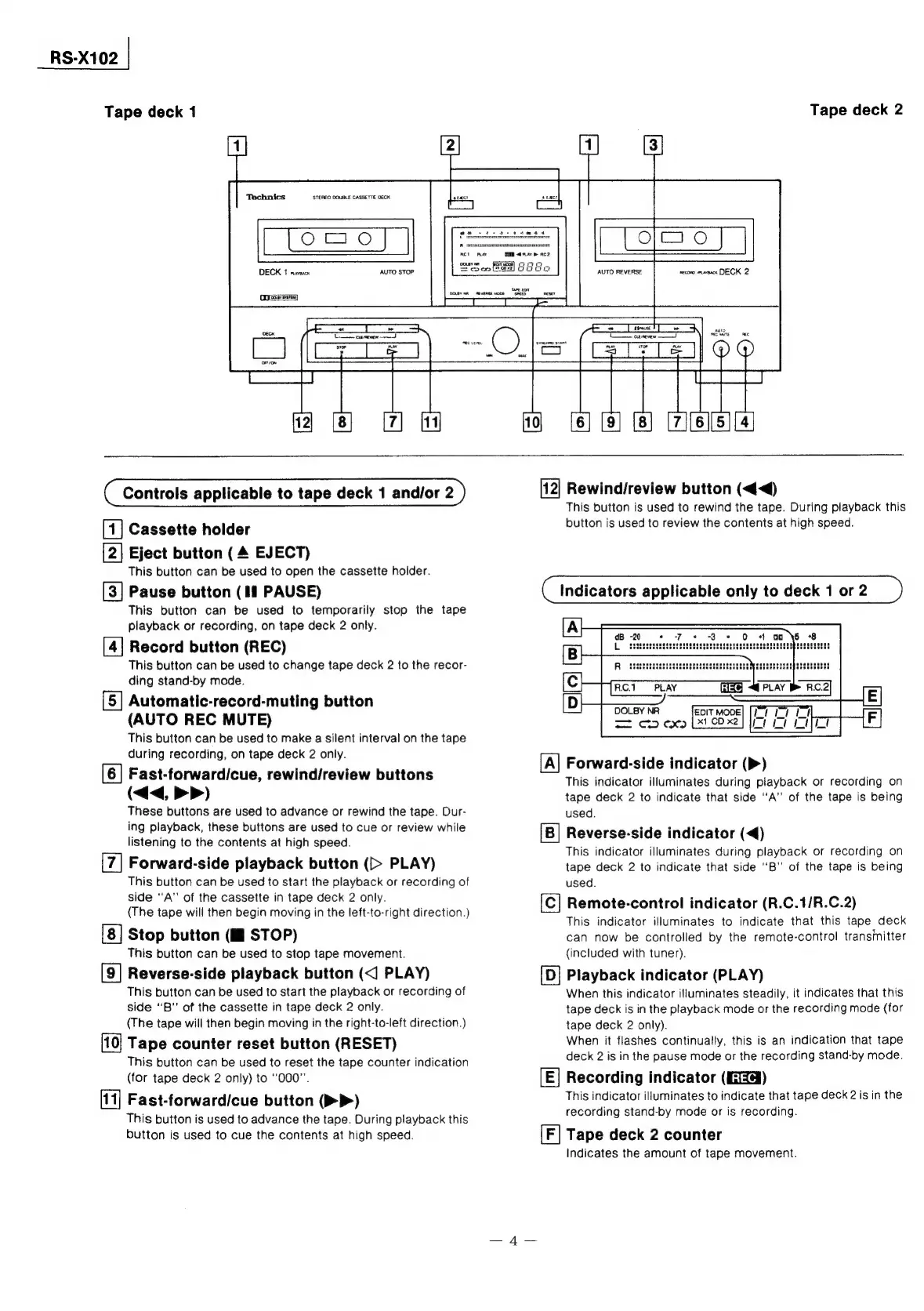

Controls applicable to tape deck 1 and/or 2
[1] Cassette holder
[2] Eject button (4 EJECT)
This button can be used to open the cassette holder.
[3] Pause button (If PAUSE)
This button can be used to temporarily stop the tape
playback or recording, on tape deck 2 only.
[4] Record button (REC)
This button can be used to change tape deck 2 to the recor-
ding stand-by mode.
[5] Automatic-record-muting button
(AUTO REC MUTE)
This button can be used to make a silent interval on the tape
during recording, on tape deck 2 only.
[6] Fast-forward/cue, rewind/review buttons
(<<, >)
These buttons are used to advance or rewind the tape. Dur-
ing playback, these buttons are used to cue or review while
listening to the contents at high speed.
Forward-side playback button (> PLAY)
This button can be used to start the playback or recording of
side ‘‘A”’ of the cassette in tape deck 2 only.
(The tape will then begin moving in the left-to-right direction.)
Stop button (lf STOP)
This button can be used to stop tape movement.
[9] Reverse-side playback button (<] PLAY)
This button can be used to start the playback or recording of
side "B" of the cassette in tape deck 2 only.
(The tape will then begin moving in the right-to-left direction.)
Tape counter reset button (RESET)
This button can be used to reset the tape counter indication
(for tape deck 2 only) to “000”.
Fast-forwardicue button (>>)
This button is used to advance the tape. During playback this
button is used to cue the contents at high speed.
[12] Rewind/review button (<<<)
This button is used to rewind the tape. During playback this
button is used to review the contents at high speed.
Indicators applicable only to deck 1 or 2
RC.1 PLAY
DOLBY NR
= CD OD
EDIT MODE.
x1 CD x2
[A] Forward-side indicator (>)
This indicator illuminates during playback or recording on
tape deck 2 to indicate that side ‘A’ of the tape is being
used.
Reverse-side indicator (<<)
This indicator illuminates during playback or recording on
tape deck 2 to indicate that side ‘‘B" of the tape is being
used.
Remote-control indicator (R.C.1/R.C.2)
This indicator illuminates to indicate that this tape deck
can now be controlled by the remote-control transmitter
(included with tuner).
[D] Playback indicator (PLAY)
When this indicator illuminates steadily, it indicates that this
tape deck is in the playback mode or the recording mode (for
tape deck 2 only).
When it flashes continually, this is an indication that tape
deck 2 is in the pause mode or the recording stand-by mode.
[E] Recording indicator (EZ)
This indicator illuminates to indicate that tape deck 2 is in the
recording stand-by mode or is recording.
[F] Tape deck 2 counter
Indicates the amount of tape movement.
