Technics RS-X501

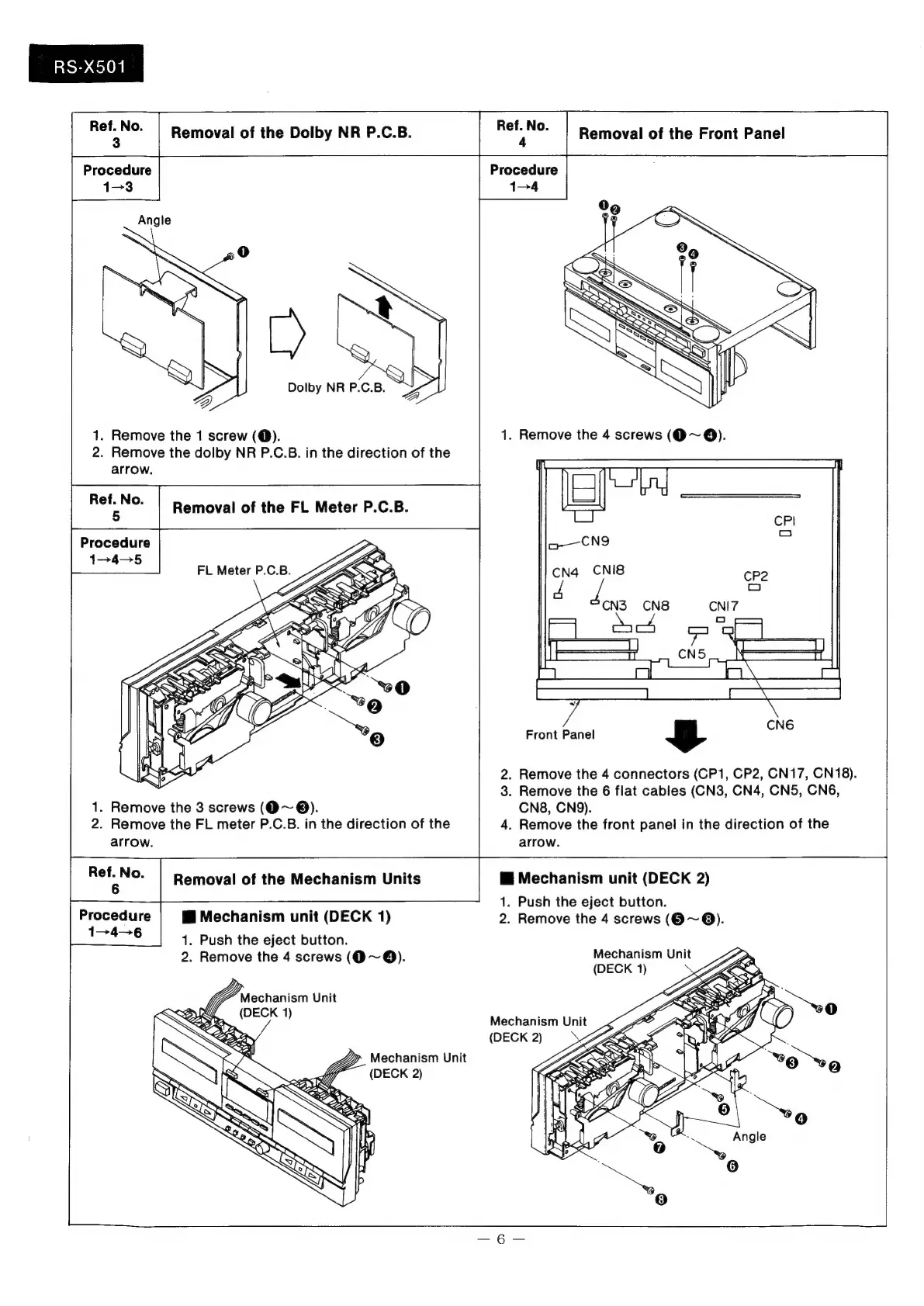

Removal of the Dolby NR P.C.B. Removal of the Front Panel
Procedure
1. Remove the 1 screw (@).
2. Remove the dolby NR P.C.B. in the direction of the
arrow.
Ref. No.
5 Removal of the FL Meter P.C.B.
Procedure
cN4 CNI8
CN3 CN8 CNI7
Front Panel Jy ane
2. Remove the 4 connectors (CP1, CP2, CN17, CN18).
3. Remove the 6 flat cables (CN3, CN4, CN5, CN6,
CN8, CN9).
4. Remove the front panel in the direction of the
arrow.
1. Remove the 3 screws (@~®).
2. Remove the FL meter P.C.B. in the direction of the
arrow.
Ref. No.
6
Procedure
@ Mechanism unit (DECK 2)
: : 1. Push the eject button.
@ Mechanism unit (DECK 1) 2. Remove the 4 screws (@~@).
1. Push the eject button.
2. Remove the 4 screws (O~@). Mechanism Unit
(DECK 1)
GF mechanism Unit
lg (DECK 1)
BU
Removal of the Mechanism Units
Mechanism Unit
(DECK 2)
