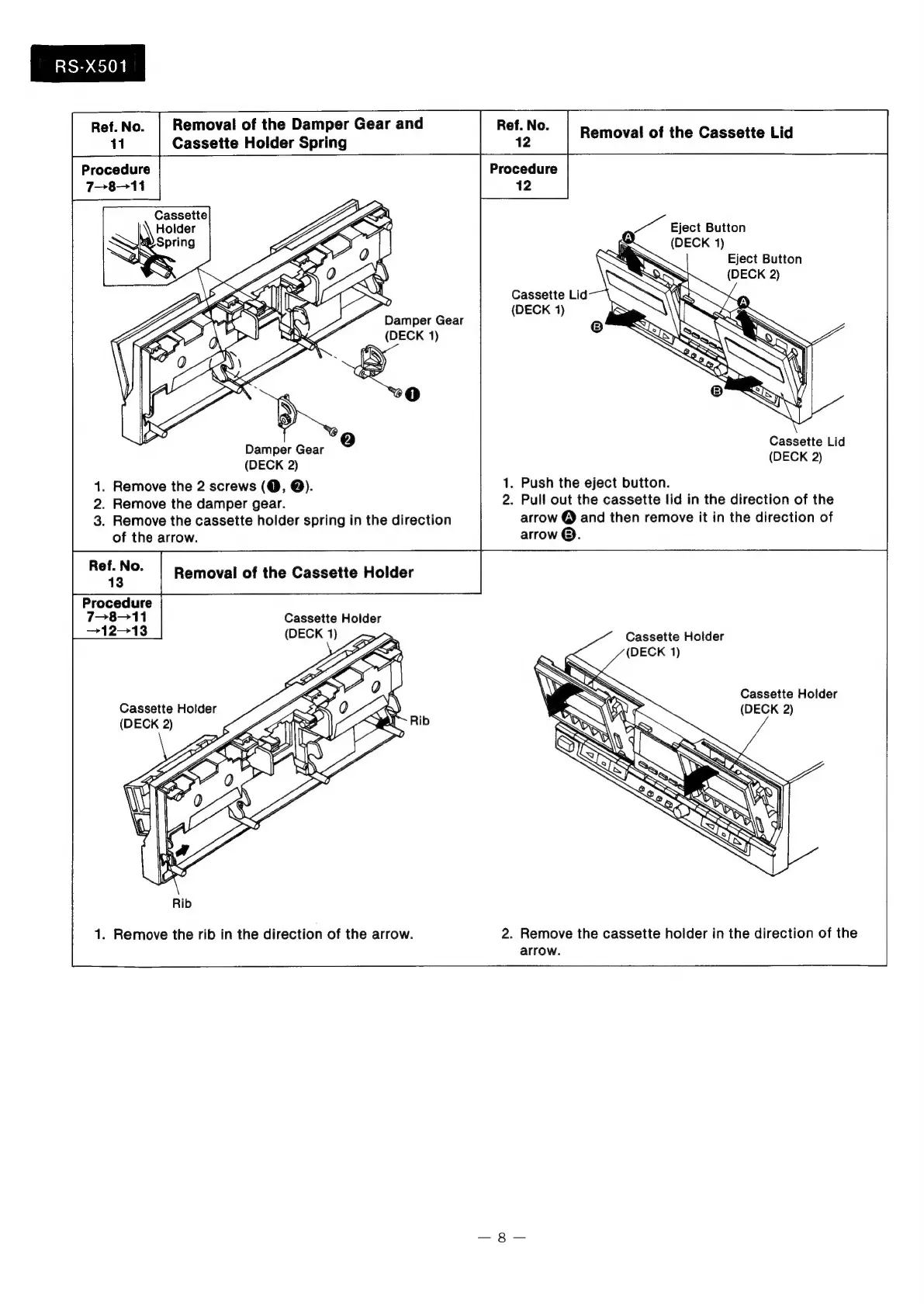

Technics RS-X501

RS-X501
Removal of the Damper Gear and
Cassette Holder Spring
Removal of the Cassette Lid
Procedure
12
Procedure
78-11
ae Eject Button
QO (DECK 1)
cy Eject Button
Cassette Lid
(DECK 1)
Cassette Lid
Damper
Gear
(DECK
2)
(DECK 2)
1. Remove the 2 screws (@, @).
2. Remove the damper gear.
3. Remove the cassette holder spring in the direction
of the arrow.
1. Push the eject button.
2. Pull out the cassette lid in the direction of the
arrow @ and then remove it in the direction of
arrow @).
Procedure
7—8-11
12-13
Cassette Holder
Cassette Holder
Cassette Holder (DECK 2)
(DECK
2)
Rib
1. Remove the rib in the direction of the arrow. 2. Remove the cassette holder in the direction of the
arrow.
