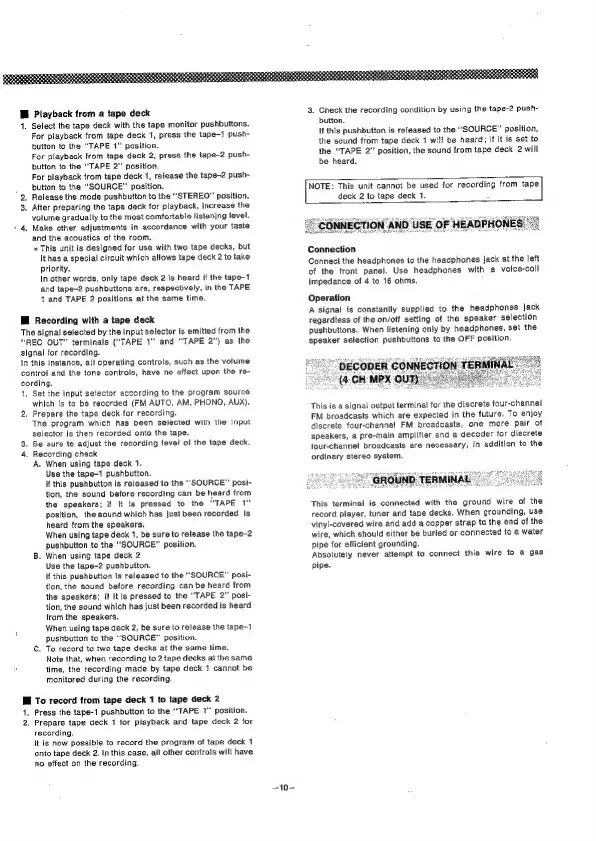

IK Playback from a tape deck
+
Select the tape deck with the tape monitor pushbuttons.
For playback from tape deck 1, press the tape—1 push-
button to the “TAPE 1” position.
For playback from tape deck 2, press the tape-2 push-
button to the “TAPE 2” position.
For playback from tape deck 1, release the tape-2 push-
button to the “SOURCE” position.
. Release the mode pushbutton to the “STEREO” position.
. After preparing the tape deck for playback, increase the
volume gradually to the most comfortable listening level.
|. Make other adjustments in accordance with your taste
and the acoustics of the room.
* This unit is designed for use with two tape decks, but
it has a special circuit which allows tape deck 2 to take
priority.
In other words, only tape deck 2 is heard if the tape-1
and tape-2 pushbuttons are, respectively, in the TAPE
1 and TAPE 2 positions at the same time.
WM Recording with a tape deck
The signal selected by the input selector is emitted from the
“REC OUT” terminals (“TAPE 1” and “TAPE 2”} as the
signal for recording.
in this instance, all operating controls, such as the volume
control and the tone controls, have no effect upon the re-
cording.
1
2.
Set the input selector according to the program source
which is to be recorded (FM AUTO, AM, PHONO, AUX).
Prepare the tape deck for recording.
The program which has been selected with the input
selector is then recorded onto the tape.
Be sure to adjust the recording level of the tape deck.
. Recording check
A. When using tape deck 1.
Use the tape-1 pushbutton.
If this pushbutton is released to the SOURCE” posi-
tion, the sound before recording can be heard from
the speakers; if it is pressed to the “TAPE. 1”
position, the sound which has just been recorded is
heard from the speakers.
When using tape deck 1, be sure to release the tape~2
pushbutton to the “SOURCE” position.
B. When using tape deck 2
Use the tape-2 pushbutton.
If this pushbutton is released to the “SOURCE” posi-
tion, the sound before recording can be heard from
the speakers; if itis pressed to the “TAPE 2” posi-
tion, the sound which has just been recorded is heard
fromthe speakers.
When using tape deck 2, be sure to release the tape-1
pushbutton to the “SOURCE” position.
C. To record to two tape decks at the same time.
Note that, when recording to 2 tape decks at the same
time, the recording made by tape deck 1 cannot be
monitored during the recording.
Il To record from tape deck 1 to tape deck 2
Fe
2.
Press the tape-1 pushbutton to the “TAPE 1” position.
Prepare tape deck 1 for playback and tape deck 2 for
recording.
it is now possible to record the program of tape deck 1
onto tape deck 2. In this case, all other controls will have
no effect on the recording.
—10—
3. Check the recording condition by using the tape-2 push-
button.
{f this pushbutton is released to the “SOURCE” position,
the sound from tape deck 1 will be heard; if it is set to
the “TAPE 2" position, the sound from tape deck 2 will
be heard.
NOTE: This unit cannot be used for recording from tape
deck 2 to tape deck 1.
CONNECTION AND USE OF HEADPHON
Connection
Connect the headphones to the headphones jack at the left
of the front panel. Use headphones with a voice-coil
impedance of 4 to 16 ohms.
Operation
A signal is constantly supplied to the headphones jack
regardless of the on/off setting of the speaker selection
pushbuttons. When listening only by headphones, set the
speaker selection pushbuttons to the OFF position.
This is a signal output terminal for the discrete four-channel
FM broadcasts which are expected in the future. To enjoy
discrete four-channe! FM broadcasts, one more pair of
speakers, a pre-main amplifier and a decoder for discrete
four-channel broadcasts are necessary, in addition to the
ordinary stereo system.
This terminal is connected with the ground wire of the
record player, tuner and tape decks. When grounding, use
vinyl-covered wire and add a copper strap to the end of the
wire, which should either be buried or connected to a water
pipe for efficient grounding.
Absolutely never attempt to connect this wire to a gas
pipe.
