Operation
B I
Front left
speaker
Center
speaker
Front right
speaker
speaker D 2 right
speaker

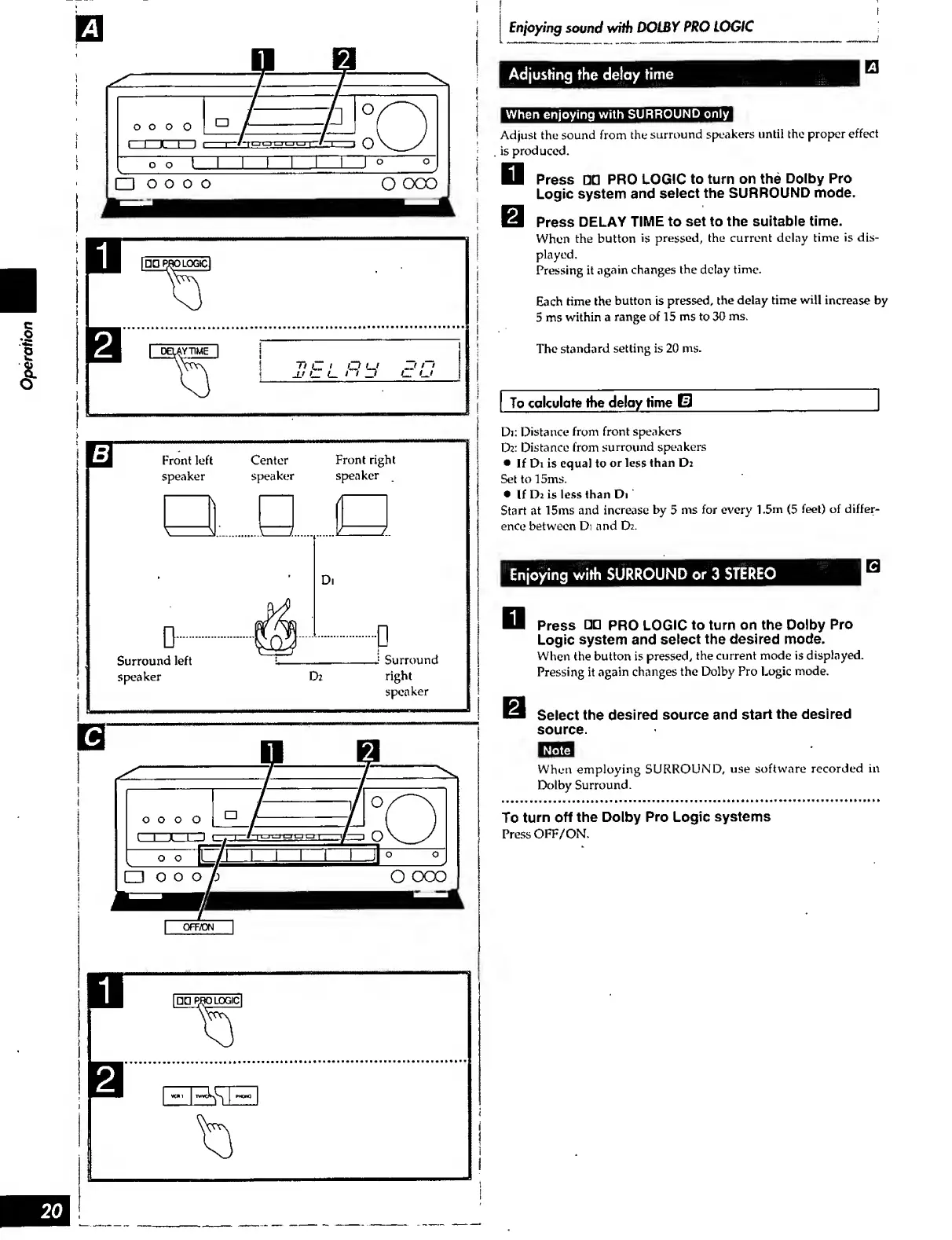

Enjoying sound with DOLBY PRO LOGIC
Adjusting the delay time
When enjoying with SURROUND only
Adjust the sound from the surround speakers until the proper effect
is produced.
D Press □□ PRO LOGIC to turn on the Dolby Pro
Logic system and select the SURROUND mode.
Press DELAY TIME to set to the suitable time.
When the button is pressed, the current delay time is dis¬
played.
Pressing it again changes the delay time.
Each time the button is pressed, the delay time will increase by
5 ms within a range of 15 ms to 30 ms.
The standard setting is 20 ms.
Di: Distance from front speakers
Dz: Distance from surround speakers
• If Di is equal to or less than D 2
Set to 15ms.
• If D 2 is less than Di
Start at 15ms and increase by 5 ms for every 1.5m (5 feet) of differ¬
ence between Di and Dz.
■ Enjoying with SURROUND or 3 STEREO
Press □□ PRO LOGIC to turn on the Dolby Pro
Logic system and select the desired mode.
When the button is pressed, the current mode is displayed.
Pressing it again changes the Dolby Pro Logic mode.
Select the desired source and start the desired
When employing SURROUND, use software recorded in
Dolby Surround.
To turn off the Dolby Pro Logic systems
Press OFF/ON.
