Technics SA-DX950 Service Manual

the major printed circuit boards and replacing the main
components.
2. For reassembly after operation checks or replacement, reverse the
respective procedures. / Special reassembly procedures are
described only when required.
3. Select items from the following index when checks or replacement
are required.
Content
- Checking Procedure for each major P.C.B.
...................................................................................................................
P.g. 7~9
- Main Component Replacement Procedures
1. Replacement of the Power IC and Regulator
Transistor.............................................................................................
P.g. 10
2. Installation of the bottom cover after
replacement...........................................................
............................................ P.g. 11
6.1. Checking Procedure for each major P.C.B.

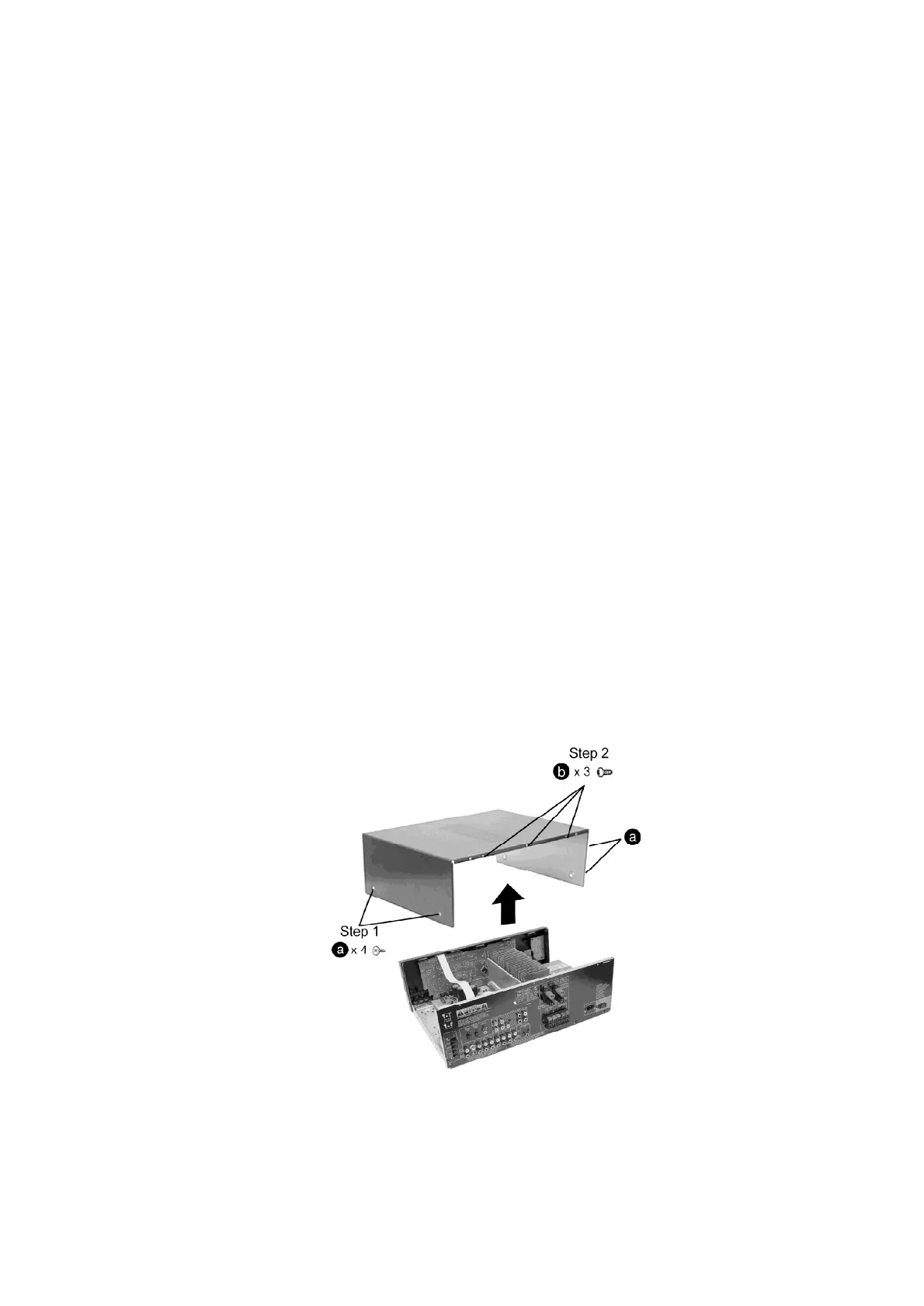

Step 1 & 2 Unscrew and remove top cabinet as shown.
10

Technics SA-DX950 Specifications

General

Impedance	8 ohms
Tuning Range	FM, MW
Surround Output	Dolby Pro Logic
Power Output	100 watts per channel into 8Ω (stereo)
Total Harmonic Distortion	0.09%
Inputs	CD, Tape, Video/Aux, Phono, Tuner
Input Sensitivity	200mV (line)
Digital Inputs	Optical, Coaxial
Video Connections	composite
Speaker Load Impedance	8 ohms
