Technics SA-DX950

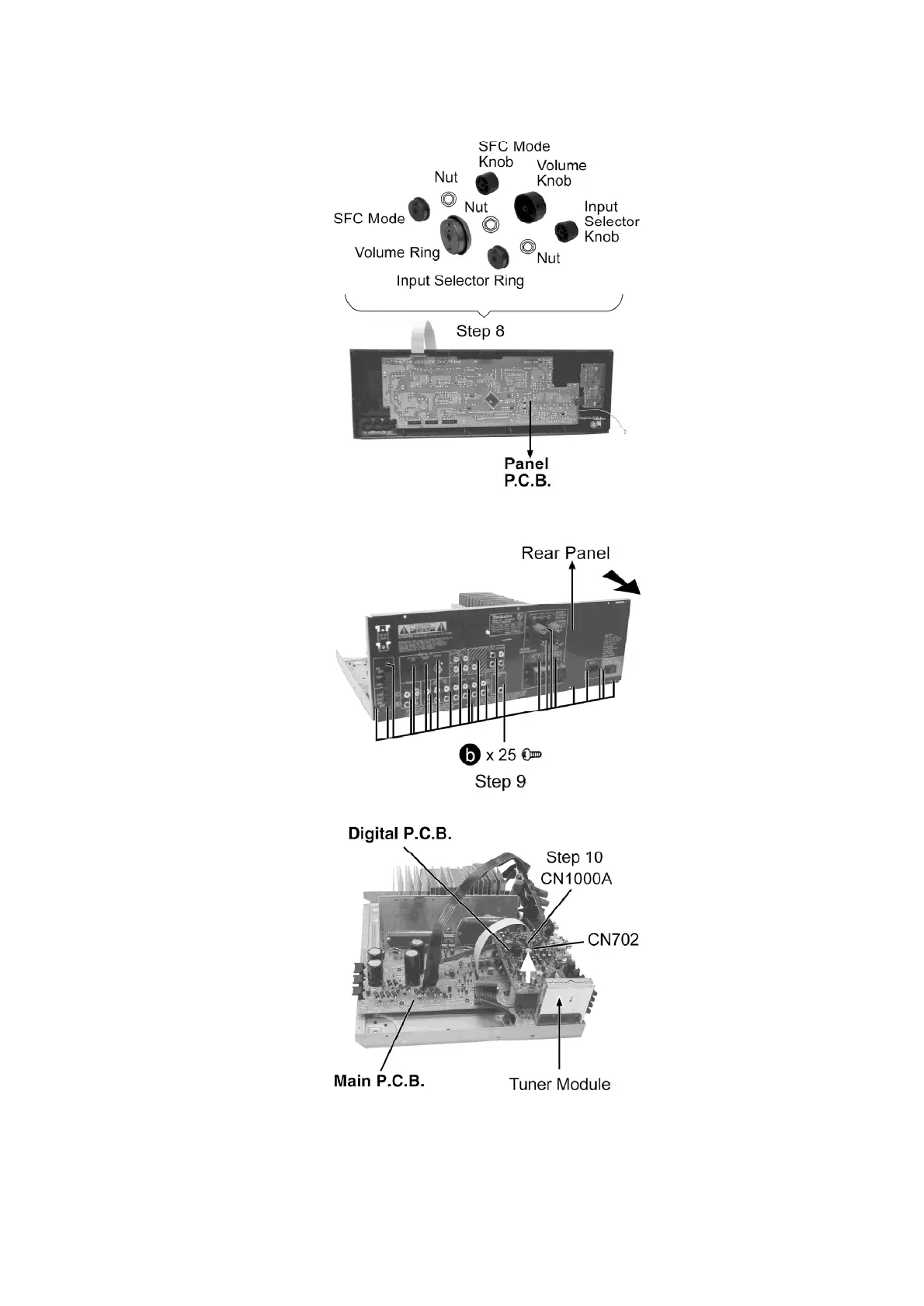

Step 8 Remove all the Selector knob and Volume knob. Unscrew the nut and remove all the
Selector ring and Volume ring.
Step 9 Remove all the screws and the rear panel in the direction of the arrow.
Step 10 Release the connectors CN702 and CN1000A. Pull up the Digital P.C.B. as shown.
13
