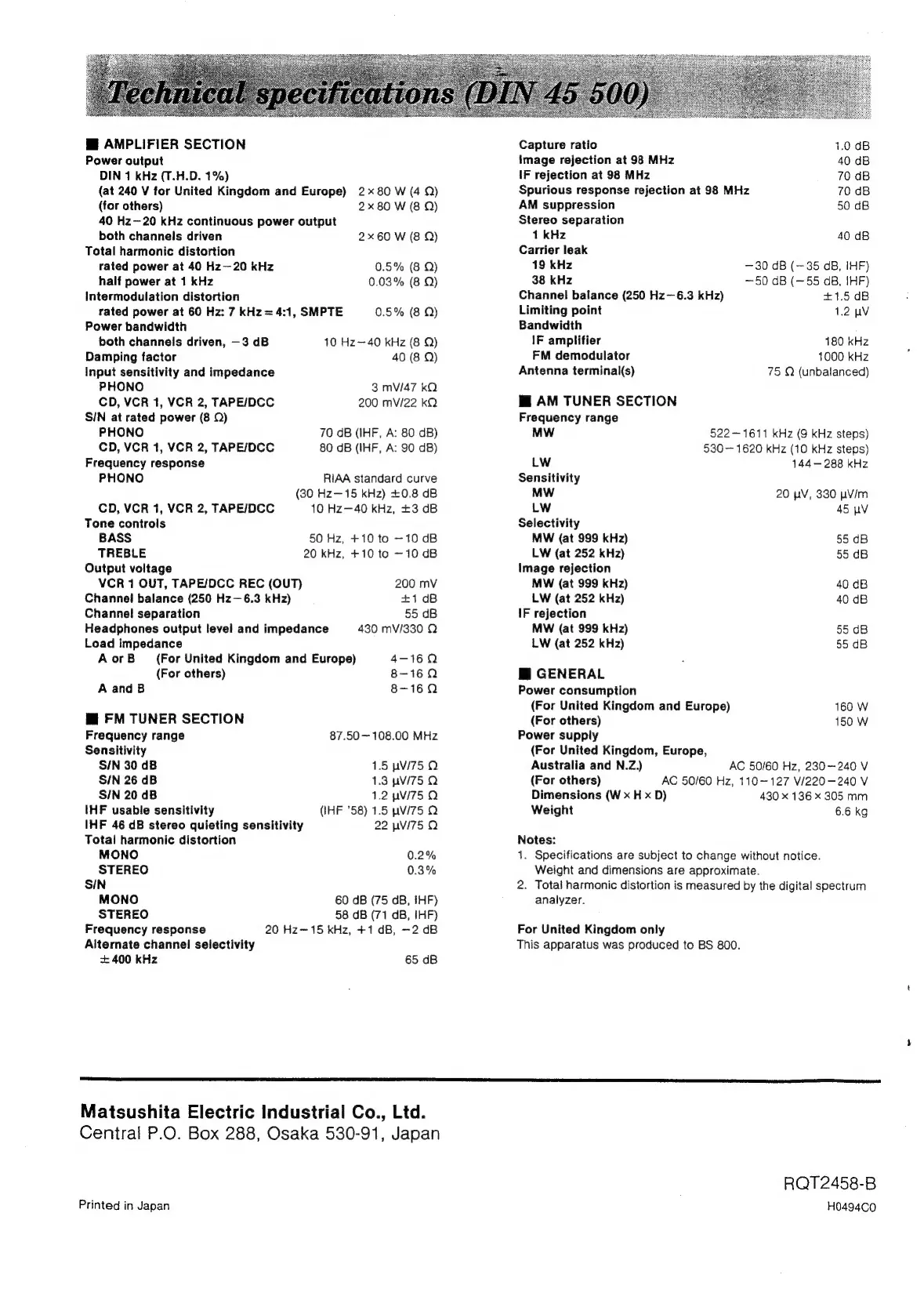

Technics SA-GX170

@ AMPLIFIER SECTION
Power output
DIN 1 kHz (T.H.D. 1%)
(at 240 V for United Kingdom and Europe) 2x80 W (4 Q)
(for others) 2x 80 W (8 2)
40 Hz—20 kHz continuous power output
both channels driven 2x60 W (8 Q)
Total harmonic distortion
rated power at 40 Hz—20 kHz 0.5% (8 Q)
half power at 1 kHz 0.03% (8 Q)
Intermodulation distortion
rated power at 60 Hz: 7 kHz= 4:1, SMPTE 0.5% (8 Q)
Power bandwidth
both channels driven, —3 dB 10 Hz—40 kHz (8 Q)
Damping factor 40 (8 Q)
Input sensitivity and impedance
PHONO 3 mV/47 kQ
CD, VCR 1, VCR 2, TAPE/DCC
S/N at rated power (8 Q)
PHONO 70 dB (IHF, A: 80 dB)
CD, VCR 1, VCR 2, TAPE/DCC 80 dB (IHF, A: 90 dB)
Frequency response
200 mV/22 kQ
PHONO RIAA standard curve
(30 Hz—15 kHz) +0.8 dB
CD, VCR 1, VCR 2, TAPEJDCC 10 Hz—40 kHz, +3 dB
Tone controls
BASS 50 Hz, +10 to —10 dB
TREBLE 20 kHz, +10 to -10 dB
Output voltage
VCR 1 OUT, TAPE/DCC REC (OUT) 200 mV
Channel balance (250 Hz—6.3 kHz) +1 dB
Channel separation 55 dB
Headphones output level and impedance 430 mV/330 Q
Load impedance
AorB (For United Kingdom and Europe) 4-169
(For others) 8-169
A and B 8-160
WieFM TUNER SECTION
Frequency range 87.50—~ 108.00 MHz
Sensitivity
S/N 30 dB 1.5 pV/75 Q
S/N 26 dB 1.3 pV/75.Q
S/N 20 dB 1.2 pV/75Q
IHF usable sensitivity (IHF '58) 1.5 pV/75 Q
IHF 46 dB stereo quieting sensitivity 22 wV/75 QO
Total harmonic distortion
MONO 0.2%
STEREO 0.3%
SIN
MONO 60 dB (75 dB, IHF)
STEREO 58 dB (71 dB, JHF)
Frequency response 20 Hz—15 kHz, +1 dB, —2 dB
Alternate channel selectivity
+ 400 kHz 65 dB
Matsushita Electric Industrial Co., Ltd.
Central P.O. Box 288, Osaka 530-91, Japan
Capture ratio 1.0 dB
image rejection at 98 MHz 40 dB
IF rejection at 98 MHz 70 dB
Spurious response rejection at 98 MHz 70 dB
AM suppression 50 dB
Stereo separation
1 kHz 40 dB
Carrier leak
19 kHz — 30 dB (—35 dB, IHF)
38 kHz ~50 dB (—55 dB, IHF)
Channel balance (250 Hz— 6.3 kHz) +1.5 dB
Limiting point 1.2 uv
Bandwidth
IF amplifier 180 kHz
FM demodulator 1000 kHz
Antenna terminal(s) 75 Q (unbalanced)
WB AM TUNER SECTION
Frequency range
MW 522-1611 kHz (9 kHz steps)
530 — 1620 kHz (10 kHz steps)
LW 144-288 kHz
Sensitivity
MW 20 pV, 330 uV/m
LW 45 pV
Selectivity
MW (at 999 kHz) 55 dB
LW (at 252 kHz) 55 dB
Image rejection
MW (at 999 kHz) 40 dB
LW (at 252 kHz) 40 dB
IF rejection
MW (at 999 kHz) 55 dB
LW (at 252 kHz) 55 dB
Hi GENERAL
Power consumption
(For United Kingdom and Europe) 160 W
(For others) 150 W
Power supply
(For United Kingdom, Europe,
Australia and N.Z.) AC 50/60 Hz, 230-240 V
(For others) AC 50/60 Hz, 110~127 V/220—240 V
Dimensions (W x H x D) 430 x 136 x 305 mm
Weight 6.6 kg
Notes:
1. Specifications are subject to change without notice.
Weight and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
