36
RQT6301
Timer operations and convenient functions
B
C
D
AUDIO
L/R OUT
AUDIO
OUT
AUDIO
IN
AUDIO
OUT
A
AUX
VCR
(EXT)
OUT IN
L
R
AUX
(DVD)
DVD 6ch INPUT
CENTER
SUBWOOFER
L
L
R
L
R
R
SURROUND FRONT
AUX
(DVD)
SURROUND L/R
FRONT L/R
L/R OUT
(MIX)
CENTER
SUBWOOFER
L
R
L
R
(R)
(L)

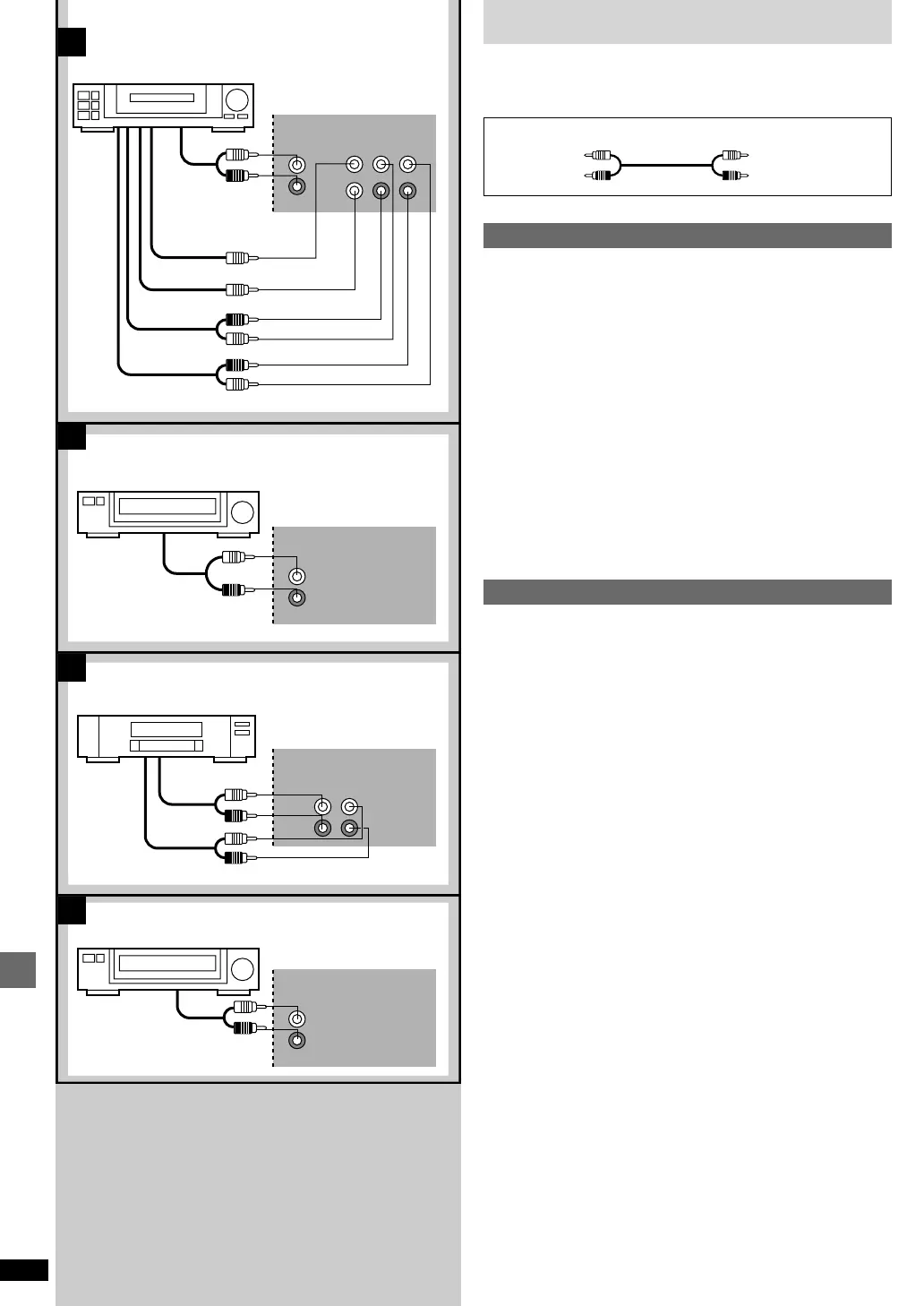

External unit connections
³Turn off all units before making connections.
³Refer to the manual of the other unit for details.
(Cables and equipment not included.)
Connections to SC-EH780
[A] DVD player with 5.1ch output
This unit has the input terminals for 5.1ch surround systems but it
does not have the decoders necessary to play them back. The DVD
player should have these decoders and 5.1ch output.
To record sound from the DVD player
Connect to AUX (DVD).
Subwoofer
The included front speakers have superwoofers, but you can en-
hance surround sound from a unit connected to DVD 6ch INPUT by
connecting another subwoofer to SUBWOOFER terminal.
[B] DVD player/Laser disc player (without 5.1ch
output), etc.
This unit has Dolby Pro Logic circuitry. The sound will be reproduced
with the same powerful stereophonic effects found in movie theaters.
[C] Video cassette recorder
You can enjoy the sound from your video cassette recorder.
Connections to SC-EH680/SC-EH580
[D] DVD player/Laser disc player/Video cassette
recorder, etc.
You can enjoy the sound from your DVD player/Laser disc player/
Video cassette recorder, etc.
Stereo phono cable (not included)
White
Red
DVD player with 5.1ch output
Sound processor
Sound processor
DVD player/Laser disc player
(without 5.1ch output), etc.
Sound processor
Video cassette recorder
Sound processor
DVD player/Laser disc player/
Video cassette recorder, etc.
