Technics SC-EH580 User Manual

37
RQT6301
Timer operations and convenient functions
B
C
A
EXT
LOOP
75™
AM
A
N
T
FM
A
N
T
75™
FM ANT
GND
EXT
LOOP
AM ANT
A
A
15mm
30mm
E
XT
LOOP
AM ANT
5–12m
1,
∫
A
1
2
4
3
A

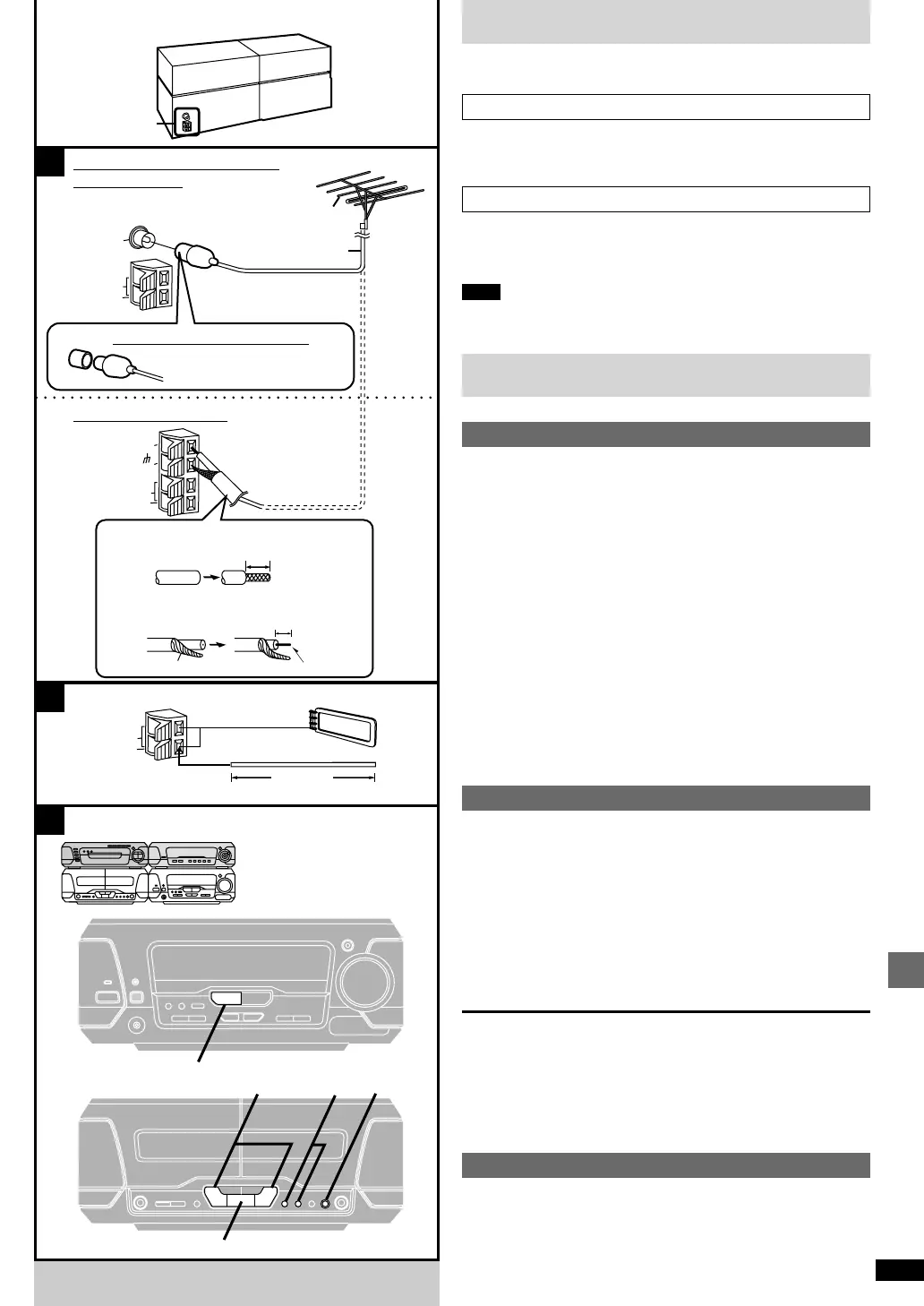

Optional antenna connections
Use outdoor antennas if radio reception is poor.
»A
FM outdoor antenna
³Disconnect the FM indoor antenna.
³The antenna should be installed by a competent technician.
»B
AM outdoor antenna
Run a piece of vinyl wire horizontally across a window or other convenient
location.
Leave the loop antenna connected.
Note
Disconnect the antenna when the unit is not in use.
Do not use the antenna during an electrical storm.
»C Using other equipment
Listening to an external source
1 Press [INPUT SELECTOR] to select the external
source.
Each time you press the button:
[EH780]
TUNER>CD>TAPE>VCR (EXT)>AUX (DVD)
^------------------------------------------------------------------}
[EH680] [EH580]
TUNER>CD>TAPE>AUX
^--------------------------------------}
On the remote control
Press [VCR/AUX/6CH INPUT] (SC-EH780) or [AUX] (SC-EH680 and
SC-EH580).
2 Operate the unit.
See the unit’s manual for details on operation and connection.
[EH780]
To enjoy Dolby Digital and DTS
á page 24
Recording an external source
 Press [INPUT SELECTOR] to select the external
source.
Select Dolby NR and reverse mode.
(á page 28)
! Press [´ REC PAUSE].
" Press ["] or [!] to start recording.
# Start the source to be recorded.
See the unit’s manual for details on operation and connection.
To stop recording
Press [º] on the deck.
To temporarily stop recording
Press [´ REC PAUSE].
The deck goes into the recording standby mode.
To resume recording press ["] or [!] with the flashing indicator.
Recording onto an external unit
[EH780]
Connect the external unit to VCR (EXT) OUT.
Select the source to be recorded with [INPUT SELECTOR].
Start recording on the external unit and start playing the source to be
recorded.
Tuner/amplifier
FM outdoor antenna
75 ª coaxial cable
(not included)
 Remove a piece of the outer vinyl.
For Australia and N.Z.
For the United Kingdom and
Eastern Europe
Twist the shield braid to expose the
core wire.
Shield braid Core wire
Use the antenna plug adaptor
included.
For the United Kingdom only
AM outdoor antenna
AM loop antenna
