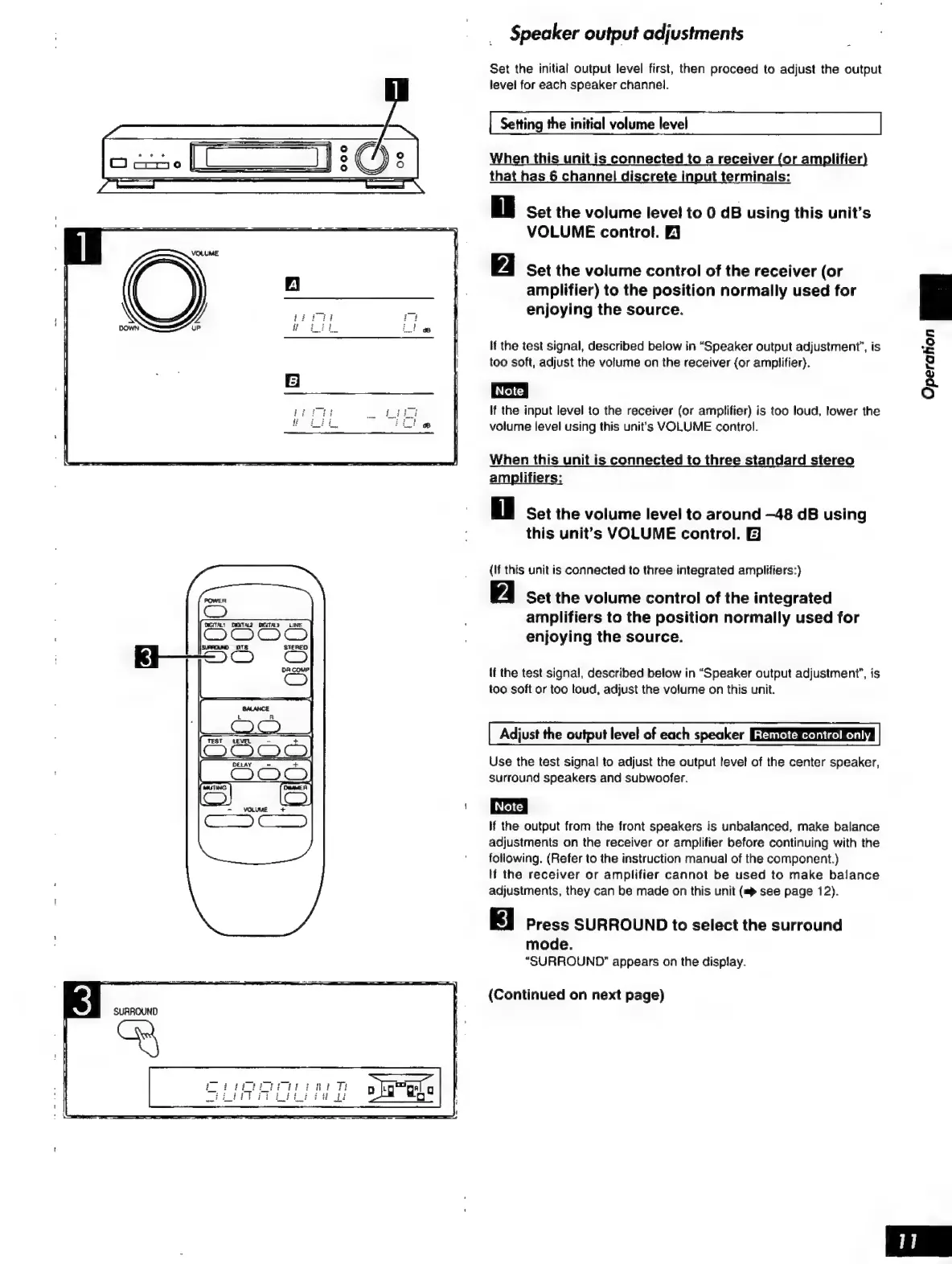

Speaker
output
adjustments
a
Set
the
initial
output
level
first,
then
proceed
to
adjust
the
output
level
for
each
speaker
channel.
Setting
the
initial
volume
level
When
this
unit
is
connected
to
a
receiver
(or
amplifier)
that
has
6
channel
discrete
input
terminals:
Set the
volume
leve!
to
0
dB
using
this
unit’s
VOLUME
control.
EJ
Set the
volume
control
of
the
receiver
(or
amplifier)
to
the
position
normally
used
for
enjoying
the
source.
If
the
test
signal,
described
below
in
“Speaker
output
adjustment’,
is
too
soft,
adjust
the
volume
on
the
receiver
{or
amplifier).
If
the
input
level
to
the
receiver
(or
amplifier)
is
too
loud,
lower
the
volume
level
using
this
unit's
VOLUME
control.
When
this
unit
is
connected
to
three
standard
stereo
1
Set
the
volume
level
to
around
—48
dB
using
this
units
VOLUME
control.
Ej
(If
this
unit
is
connected
to
three
integrated
amplifiers:)
Set
the
volume
control
of
the
integrated
amplifiers
to
the
position
normally
used
for
enjoying
the
source.
lf
the
test
signal,
described
below
in
“Speaker
output
adjustment”,
is
too
soft
or
too
loud,
adjust
the
volume
on
this
unit.
Adjust
the
output
level
of
each
speaker
Use
the
test
signal
to
adjust
the
output
level
of
the
center
speaker,
surround
speakers
and
subwoofer.
If
the
output
from
the
front
speakers
is
unbalanced,
make
balance
adjustments
on
the
receiver
or
amplifier
before
continuing
with
the
following.
(Refer
to
the
instruction
manual
of
the
component.)
Hf
the
receiver
or
amplifier
cannot
be
used
to
make
balance
adjustments,
they
can
be
made
on
this
unit
(sẹ see
page
12).
Press
SURROUND
to
select
the
surround
mode.
“SURROUND”
appears
on
the
display.
(Continued
on
next
page)
c
„Q
=
2
&
O
