Technics SH-AC500D Operating Instructions

3
3
S
ke
©
E
Inser the batteries in
the correct polarities
(@, 9).
Peeeretwarteononne Peeeereeerseracas Feomeceeetoreruneaen *
Remote control signal sensor
| About 7 meters (23 feet) in
front of the signal sensor. (The
actual range will depend on the
| angle at which the remote
4 control is used.)
Transmission
window

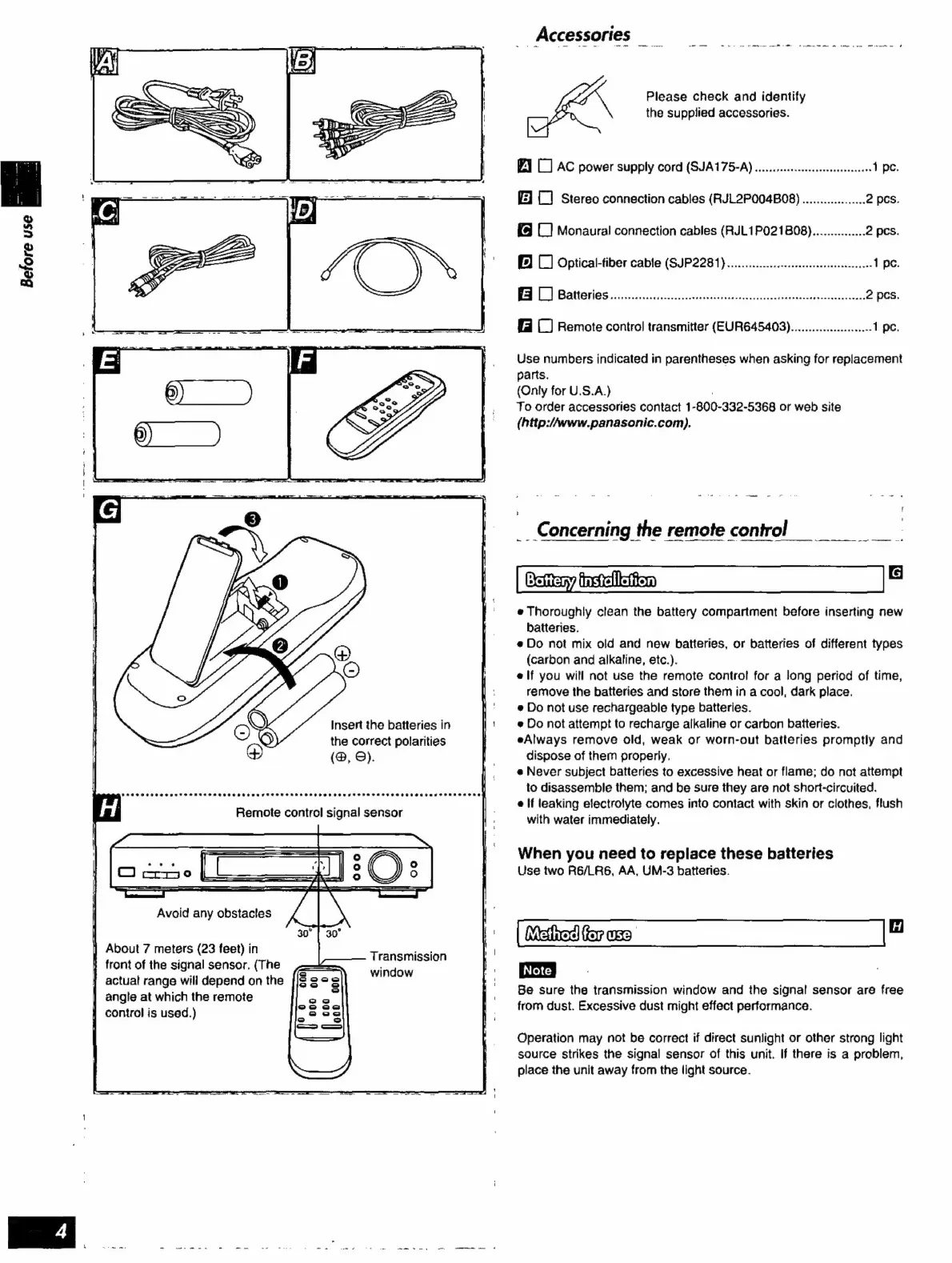

_ Accessories _
Please check and identify
the supplied accessories.
EJ O AC power supply cord (SUA175-A) ...cpsscsccseceseeseccesseesens 1 pe.
E] C Stereo connection cables (RJL2P004B08)..................2 pes
C] Monaural connection cables (RJL1P021B08)............... 2 pcs.
E] L] Optical-fiber cable (SIP2281) ......cccesecessessesseetesteeneesse 1 PC.
[ell Batteries caries 2 cae 2 pes
C] Remote control transmitter (EUR645403)......... eee 1 pe.
Use numbers indicated in parentheses when asking for replacement
parts.
(Only for U.S.A.)
To order accessories contact 1-800-332-5368 or web site
(http:/www.panasonic.com).
è
__ Concerning the remote control _
Banay welen
e Thoroughly clean the battery compartment before inserting new
batteries.
«Do not mix old and new batteries, or batteries of different types
(carbon and alkaline, etc.).
«lf you will not use the remote control for a long period of time,
remove the batteries and store them in a cool, dark place.
ə Do not use rechargeable type batteries.
e Do not attempt to recharge alkaline or carbon batteries.
eAlways remove old, weak or worn-out batteries promptly and
dispose of them properly.
e Never subject batteries to excessive heat or flame; do not attempt
to disassemble them; and be sure they are not short-circuited.
e If leaking electrolyte comes into contact with skin or clothes, flush
with water immediately.
When you need to replace these batteries
Use two R6/LR6, AA, UM-3 batteries.
Note
Be sure the transmission window and the signal sensor are free
from dust. Excessive dust might effect performance.
Operation may not be correct if direct sunlight or other strong light
source strikes the signal sensor of this unit. If there is a problem,
place the unit away from the light source.

Technics SH-AC500D Specifications

Audio Specifications

outlet voltage	2 V
outlet impedance	1 kΩ
input impedance	22 kΩ
frequency response	20 Hz- 20 kHz, +1 dB
total harmonic distortion	0.007 %
dynamic range	96 dB
signal to noise ratio	100 dB
load impedance	More than 10 kΩ

Power

power supply	AC 120 V, 60 Hz
power consumption	15 W

Weight and Dimensions

dimensions	430 X 69 X 301.4 mm
weight	2.6 kg
