Technics SH-AC500D Operating Instructions

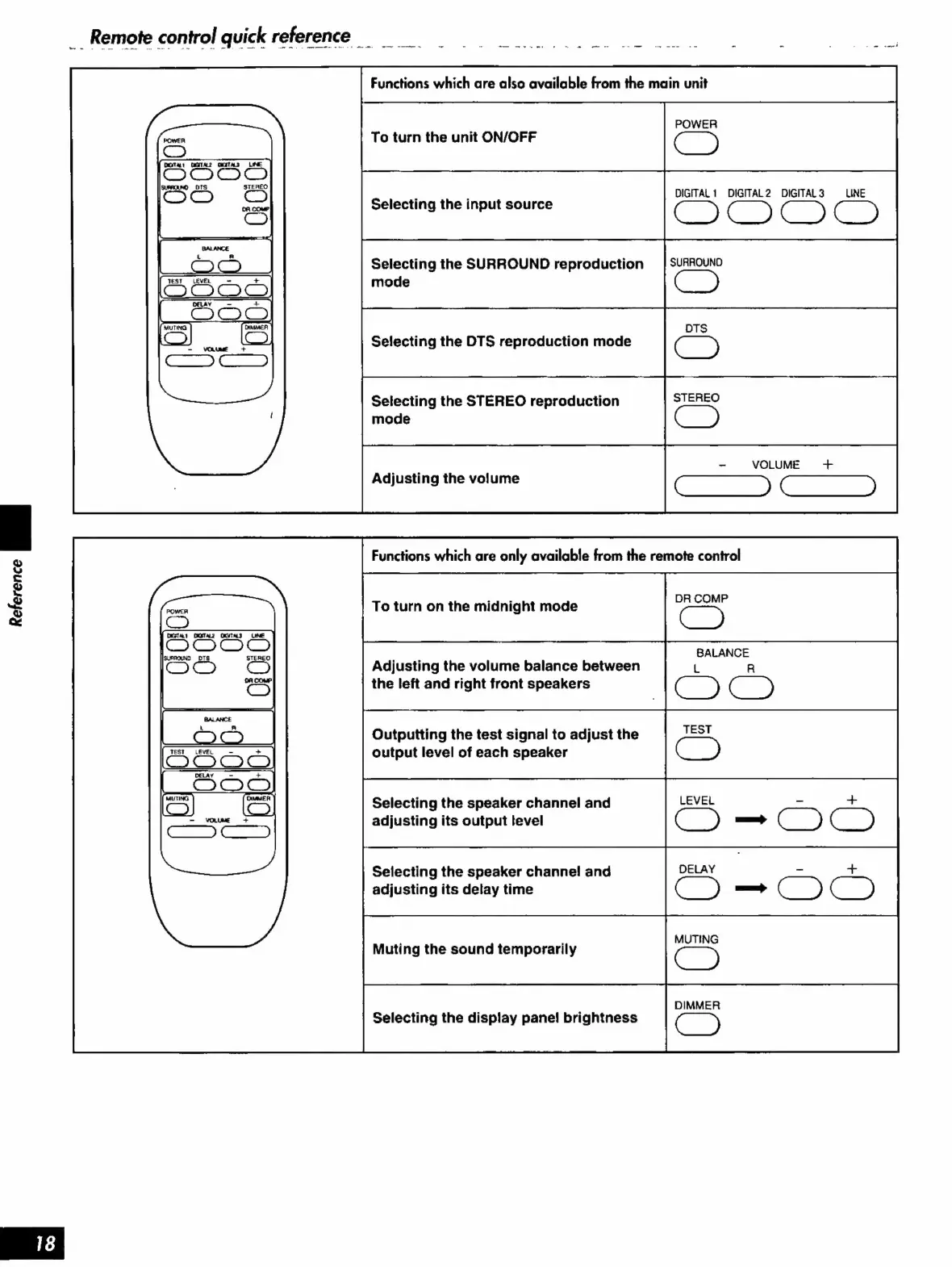

Reference a
__ Remote control quick reference
Functions which are also available from the main unit
To turn the unit ON/OFF
Selecting the input source
Selecting the SURROUND reproduction
mode
Selecting the DTS reproduction mode
Selecting the STEREO reproduction
mode
Adjusting the volume
DIGITAL 1 DIGITAL2 DIGITAL 3 LINE
- +
Ge)
=
(=)
Functions which are only available from the remote control
To turn on the midnight mode
Adjusting the volume balance between
the left and right front speakers
Outputting the test signal to adjust the
output level of each speaker
Selecting the speaker channel and
adjusting its output tevel
Selecting the speaker channe! and
adjusting its delay time
Muting the sound temporarily
Selecting the display pane! brightness
DR COMP
CO
BALANCE
L R
IELO
TEST
C3
LEVEL - +
Dia
- +

Technics SH-AC500D Specifications

Audio Specifications

outlet voltage	2 V
outlet impedance	1 kΩ
input impedance	22 kΩ
frequency response	20 Hz- 20 kHz, +1 dB
total harmonic distortion	0.007 %
dynamic range	96 dB
signal to noise ratio	100 dB
load impedance	More than 10 kΩ

Power

power supply	AC 120 V, 60 Hz
power consumption	15 W

Weight and Dimensions

dimensions	430 X 69 X 301.4 mm
weight	2.6 kg
