Technics SH-AC500D Operating Instructions

|
|
l.

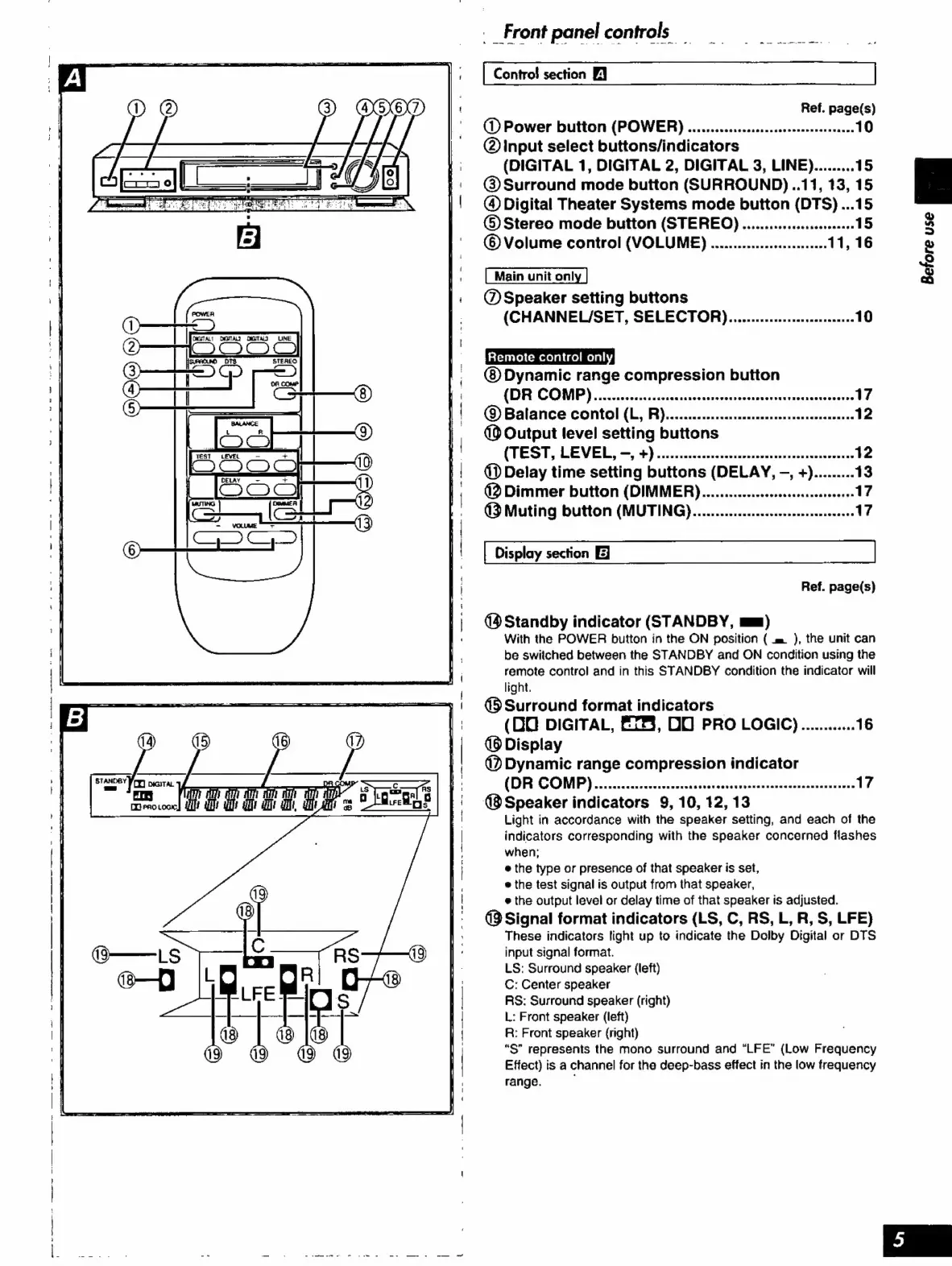

__Front panel controls _
1. Control section FJ
Ref. page(s)
@ Power button (POWER) ..sssessesesssessnsersrrenrrenssann 10
@ Input select buttons/indicators
(DIGITAL 1, DIGITAL 2, DIGITAL 3, LINE)......... 15
@ Surround mode button (SURROUND) ..11, 13, 15
@ Digital Theater Systems mode button (DTS)...15
©) Stereo mode button (STEREO) ..........cccssesceeees 15
®© Volume control (VOLUME) ............:0ccssse 11, 16
@ Speaker setting buttons
(CHANNEL/SET, SELECTOR).........:ccccsersseesnneees 10
Remote control onl
@ Dynamic range compression button
IDR COMP) singane a a 17
@ Balance contol (L, R)........ssscscesscesseessesseereneeees 12
W Output level setting buttons
(TEST, LEVEL, =; E) a ececeseccsceccceivvedecssceniteccansnie 12
@ Delay time setting buttons (DELAY, -, +)......... 13
(2 Dimmer button (DIMMER).............ccccecccsseeseceees 17
B Muting button (MUTING)........cccccsscscseecosseeseeees 17
Display section E]
Ref. page(s)
( Standby indicator (STANDBY, mm)
With the POWER button in the ON position ( æ ), the unit can
be switched between the STANDBY and ON condition using the
remote control and in this STANDBY condition the indicator will
light.
X Surround format indicators
(DO DIGITAL, 233, OO PRO LOGIC)............ 16
(9 Display
@ Dynamic range compression indicator
(DR COMP) soziatscscckicsscccccsesigacessnntoaiatacsnactoiaesstete 17
8 Speaker indicators 9, 10, 12, 13
Light in accordance with the speaker setting, and each of the
indicators corresponding with the speaker concerned flashes
when;
e the type or presence of that speaker is set,
the test signal is output from that speaker,
ə the output level or delay time of that speaker is adjusted.
@9 Signal format indicators (LS, C, RS, L, R, S, LFE)
These indicators light up to indicate the Dolby Digital or DTS
input signal format.
LS: Surround speaker (left)
C: Center speaker
RS: Surround speaker (right)
L: Front speaker (left)
R: Front speaker (right)
“S$” represents the mono surround and “LFE" (Low Frequency
Effect) is a channel for the deep-bass effect in the low frequency
range.
Before use 4

Technics SH-AC500D Specifications

Audio Specifications

outlet voltage	2 V
outlet impedance	1 kΩ
input impedance	22 kΩ
frequency response	20 Hz- 20 kHz, +1 dB
total harmonic distortion	0.007 %
dynamic range	96 dB
signal to noise ratio	100 dB
load impedance	More than 10 kΩ

Power

power supply	AC 120 V, 60 Hz
power consumption	15 W

Weight and Dimensions

dimensions	430 X 69 X 301.4 mm
weight	2.6 kg
