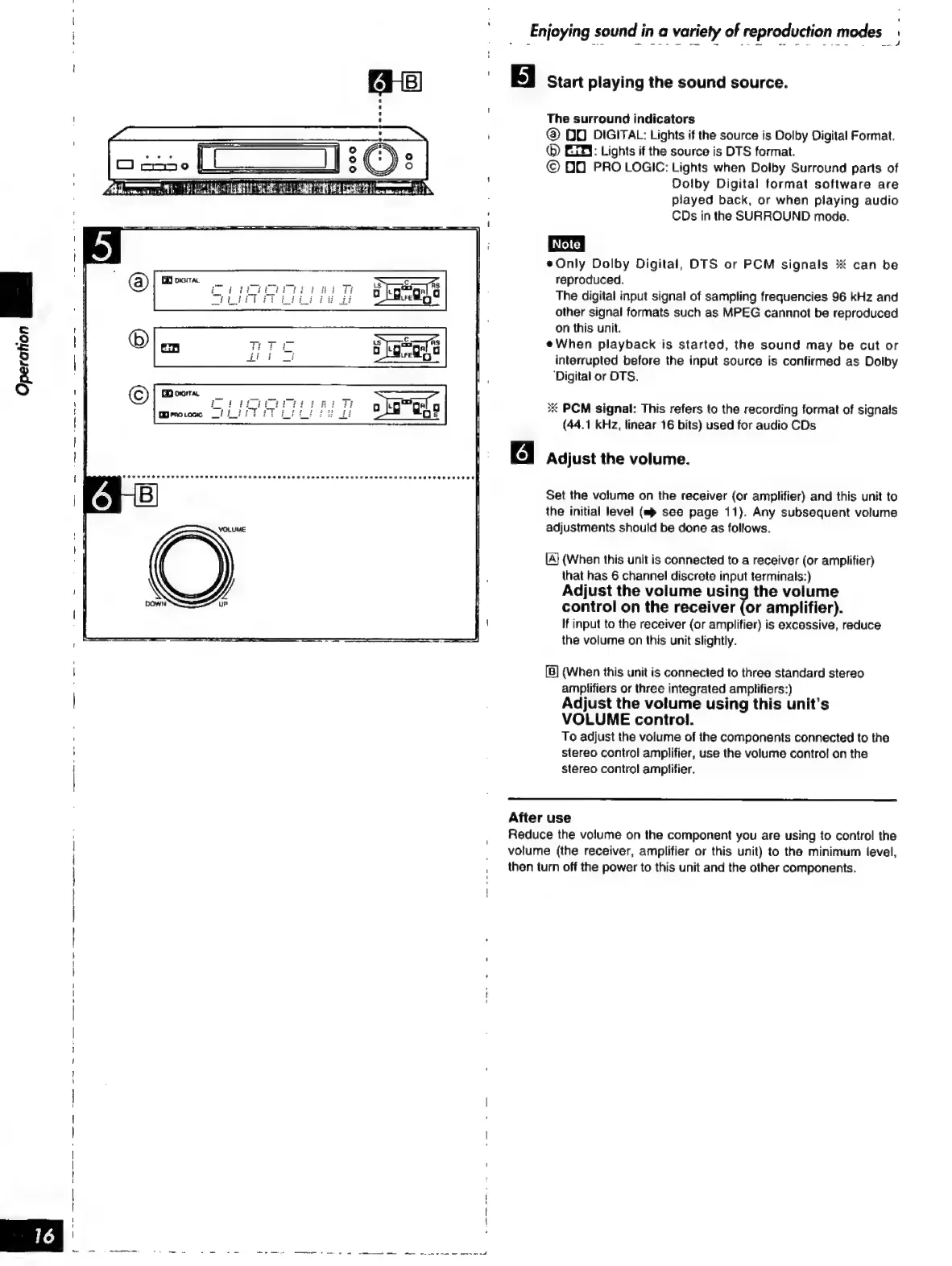

Technics SH-AC500D Operating Instructions

Operation EE
Te
Mtl cemaict bei tic
ai Reread Ee
ppm
i 3}
$. haneit AL D
em ee em ee em
Start playing the sound source.
The surround indicators
@ DO DIGITAL: Lights if the source is Dolby Digital Format.
(6) ETA: Lights if the source is DTS format.
© OO PRO LOGIC: Lights when Dolby Surround parts of
Dolby Digital format software are
played back, or when playing audio
CDs in the SURROUND mode.
Only Dolby Digital, DTS or PCM signals * can be
reproduced.
The digital input signal of sampling frequencies 96 kHz and
other signal formats such as MPEG cannnot be reproduced
on this unit.
eWhen playback is started, the sound may be cut or
interrupted before the input source is confirmed as Dolby
‘Digital or OTS.
X PCM signal: This refers to the recording format of signals
(44.1 kHz, linear 16 bits) used for audio CDs
6l Adjust the volume.
Set the volume on the receiver (or amplifier) and this unit to
the initial level (=p see page 11}. Any subsequent volume
adjustments should be done as follows.
(When this unit is connected to a receiver (or amplifier)
that has 6 channel discrete input terminals:)
Adjust the volume using the volume
control on the receiver (or amplifier).
If input to the receiver {or amplifier) is excessive, reduce
the volume on this unit slightly.
(When this unit is connected to three standard stereo
amplifiers or three integrated amplifiers:)
Adjust the volume using this unit’s
VOLUME control.
To adjust the volume of the components connected to the
stereo control amplifier, use the volume control on the
stereo control amplifier.
After use
Reduce the volume on the component you are using to control the
volume (the receiver, amplifier or this unit) to the minimum level,
then turn off the power to this unit and the other components.

Technics SH-AC500D Specifications

Audio Specifications

outlet voltage	2 V
outlet impedance	1 kΩ
input impedance	22 kΩ
frequency response	20 Hz- 20 kHz, +1 dB
total harmonic distortion	0.007 %
dynamic range	96 dB
signal to noise ratio	100 dB
load impedance	More than 10 kΩ

Power

power supply	AC 120 V, 60 Hz
power consumption	15 W

Weight and Dimensions

dimensions	430 X 69 X 301.4 mm
weight	2.6 kg
