Technics SH-AC500D Operating Instructions

Front speaker Front speaker
(left) Center (right)
speaker
TV
Subwoofer
iD
Surround speaker
Surround
speaker
(right)
Center speaker
Surround
Speaker
Surround
speaker
(right)
Front speaker Subwoofer
(left)
Front speaker

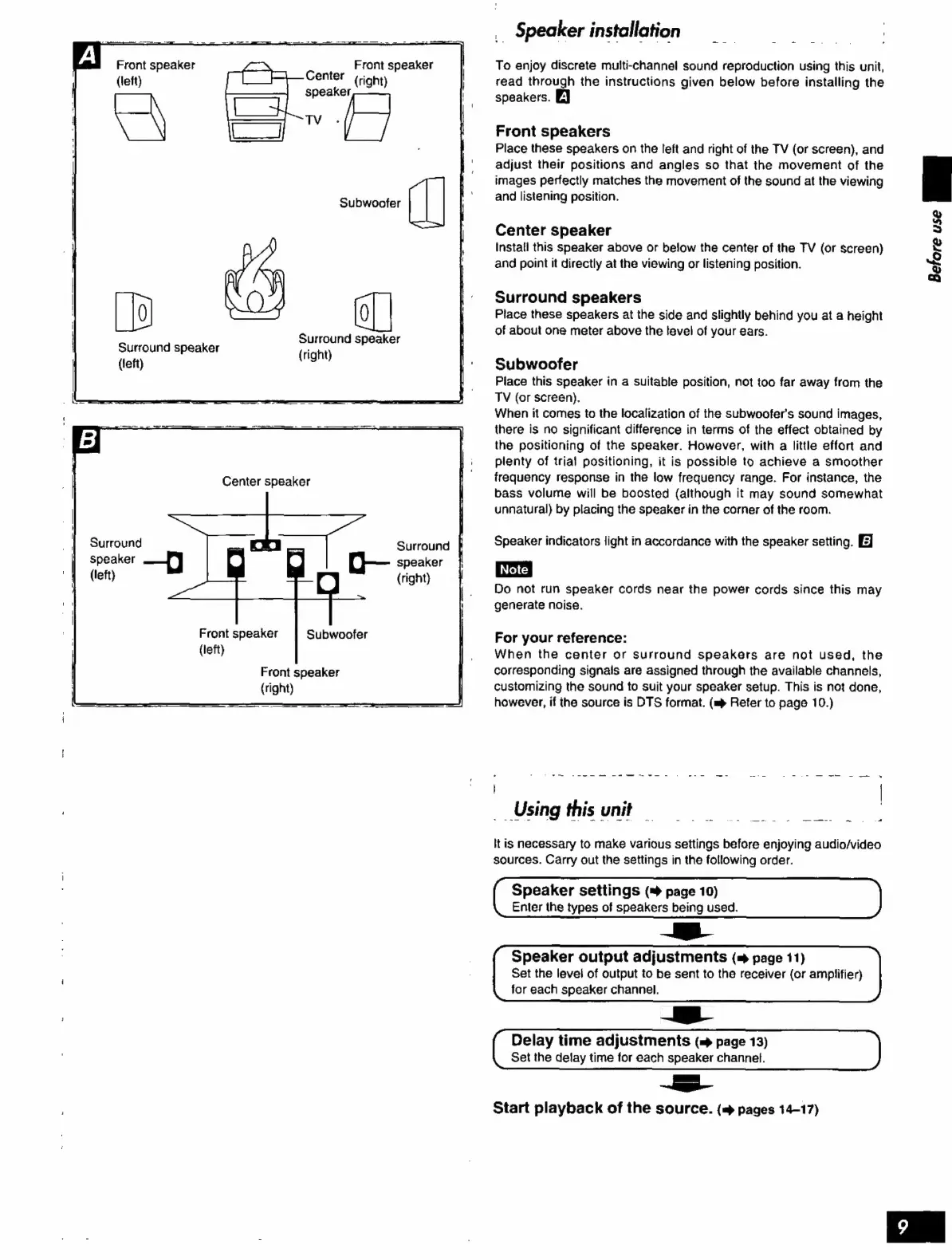

_ Speaker installation __ 8%
To enjoy discrete multi-channel sound reproduction using this unit,
read through the instructions given below before installing the
speakers. E]
Front speakers
Place these speakers on the left and right of the TV (or screen), and
adjust their positions and angles so that the movement of the
images perfectly matches the movement of the sound at the viewing
and listening position.
Center speaker
Install this speaker above or below the center of the TV (or screen)
and point it directly at the viewing or listening position.
Surround speakers
Place these speakers at the side and slightly behind you at a height
of about one meter above the tevel of your ears.
Subwoofer
Place this speaker in a suitable position, not too far away from the
TV (or screen).
When it comes to the localization of the subwoofers sound images,
there is no significant difference in terms of the effect obtained by
the positioning of the speaker. However, with a little effort and
plenty of trial positioning, it is possible to achieve a smoother
frequency response in the low frequency range. For instance, the
bass volume will be boosted (although it may sound somewhat
unnatural) by placing the speaker in the corner of the room.
Speaker indicators {ight in accordance with the speaker setting. EJ
Do not run speaker cords near the power cords since this may
generate noise.
For your reference:
When the center or surround speakers are not used, the
corresponding signals are assigned through the available channels,
customizing the sound to suit your speaker setup. This is not done,
however, if the source is DTS format. (m Refer to page 10.)
-Using this unit
it is necessary to make various settings before enjoying audio/video
sources. Carry out the settings in the following order.
Speaker settings (> page 10)
Enter the types of speakers being used.
Speaker output adjustments {s page 11)
Set the level of output to be sent to the receiver {or amplifier)
for each speaker channel.
ee
Delay time adjustments (= page 13)
Set the delay time for each speaker channel.
Start playback of the source. (= pages 14-17)
Before use =

Technics SH-AC500D Specifications

Audio Specifications

outlet voltage	2 V
outlet impedance	1 kΩ
input impedance	22 kΩ
frequency response	20 Hz- 20 kHz, +1 dB
total harmonic distortion	0.007 %
dynamic range	96 dB
signal to noise ratio	100 dB
load impedance	More than 10 kΩ

Power

power supply	AC 120 V, 60 Hz
power consumption	15 W

Weight and Dimensions

dimensions	430 X 69 X 301.4 mm
weight	2.6 kg
