Technics SH-AC500D Operating Instructions

Before use oe

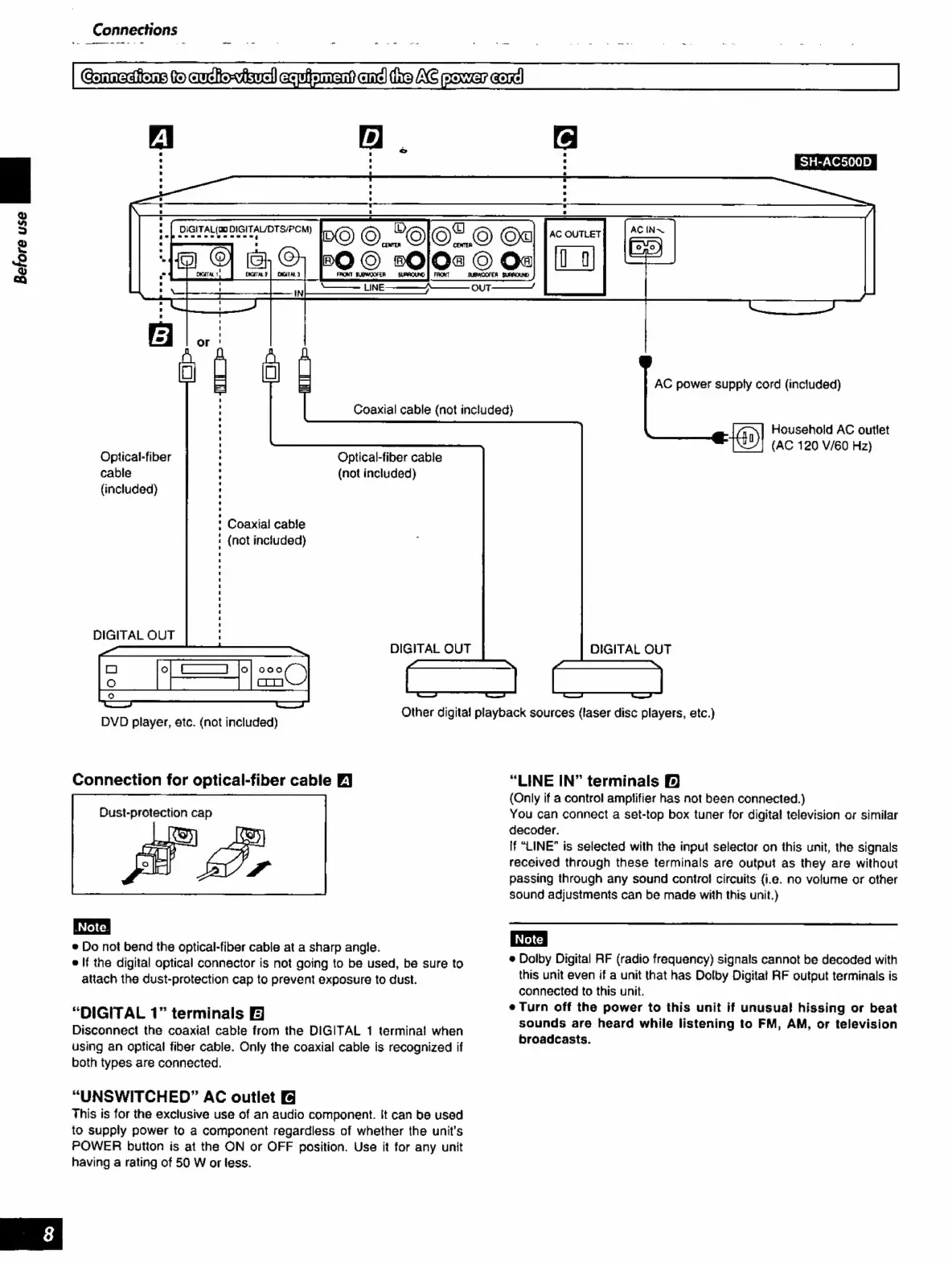

Connections
DIGITAL(G0 DIGITAL/DTS/PCM)
seu ne ee Sanna e
Optical-fiber Optical-fiber cable
cable (not included)
(included)
Coaxial cable
{not included)
DIGITAL OUT
DVD player, etc. (not included)
Connection for optical-fiber cable BJ
Dust-protection cap
e Do not bend the optical-fiber cable at a sharp angle.
e |f the digital optical connector is not going to be used, be sure to
attach the dust-protection cap to prevent exposure to dust.
“DIGITAL 1” terminals E]
Disconnect the coaxial cable from the DIGITAL 1 termina! when
using an optical fiber cable. Only the coaxial cable is recognized if
both types are connected.
“UNSWITCHED” AC outlet
This is for the exclusive use of an audio component. It can be used
to supply power to a component regardless of whether the unit's
POWER button is at the ON or OFF position. Use it for any unit
having a rating of 50 W or less.
Coaxial cable (not included)
DIGITAL OUT
: SH-AC500D
AC power supply cord (included)
Household AC outlet
9 (AC 120 V/60 Hz}
DIGITAL OUT
Other digita! playback sources (laser disc players, etc.)
“LINE IN” terminals P)
(Only if a control amplifier has not been connected.)
You can connect a set-top box tuner for digital television or similar
decoder.
If “LINE” is selected with the input selector on this unit, the signals
received through these terminals are output as they are without
passing through any sound contro! circuits (i.e. no volume or other
sound adjustments can be made with this unit.)
ə Dolby Digital RF {radio frequency) signals cannot be decoded with
this unit even if a unit that has Dolby Digitat RF output terminals is
connected to this unit.
¢Turn off the power to this unit if unusual hissing or beat
sounds are heard while listening to FM, AM, or television
broadcasts.

Technics SH-AC500D Specifications

Audio Specifications

outlet voltage	2 V
outlet impedance	1 kΩ
input impedance	22 kΩ
frequency response	20 Hz- 20 kHz, +1 dB
total harmonic distortion	0.007 %
dynamic range	96 dB
signal to noise ratio	100 dB
load impedance	More than 10 kΩ

Power

power supply	AC 120 V, 60 Hz
power consumption	15 W

Weight and Dimensions

dimensions	430 X 69 X 301.4 mm
weight	2.6 kg
