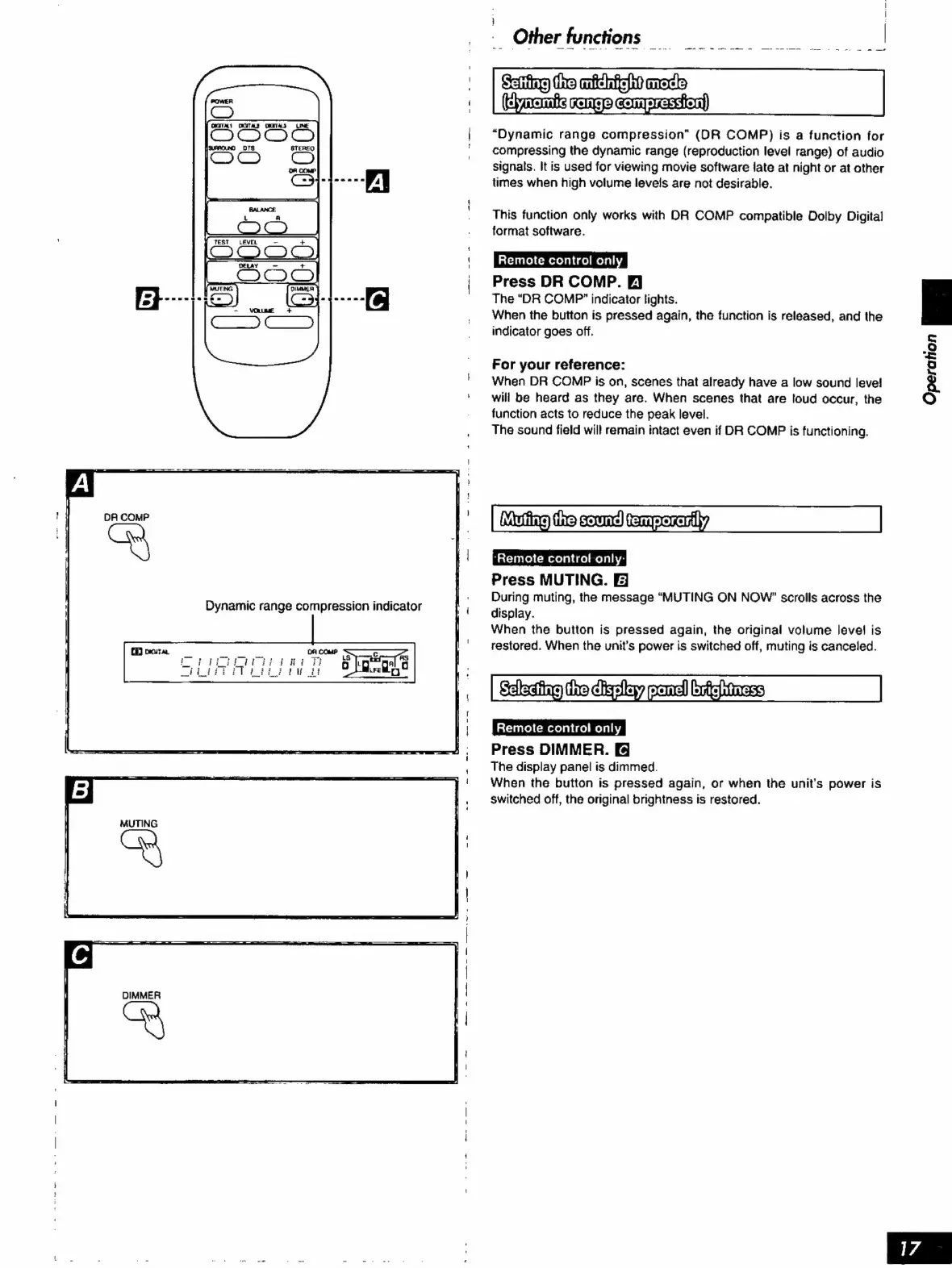

Technics SH-AC500D Operating Instructions

DA COMP
Dynamic range compression indicator
_
Other
functions
0
Sity (he akh anecl
(dynamidrangelcompression)
“Dynamic range compression” (DR COMP) is a function for
compressing the dynamic range (reproduction level range) of audio
signals. It is used for viewing movie software late at night or at other
times when high volume levels are not desirable.
This function only works with DR COMP compatible Dolby Digital
format software.
Remote control onl
Press DR COMP. El
The “DR COMP” indicator tights.
When the button is pressed again, the function is released, and the
indicator goes off.
For your reference:
When DR COMP is on, scenes that already have a low sound leve!
will be heard as they are. When scenes that are loud occur, the
function acts to reduce the peak level.
The sound field will remain intact even if DR COMP is functioning.
Muti the some) ently
“Remote controt-only-
Press MUTING. E
During muting, the message “MUTING ON NOW” scrolls across the
display.
When the button is pressed again, the original volume level is
restored. When the unit's power is switched off, muting is canceled.
Sdiedih the dky pnd Extefiinass
Remote control only
Press DIMMER.
The display panel is dimmed.
When the button is pressed again, or when the unit's power is
switched off, the original brightness is restored.

Technics SH-AC500D Specifications

Audio Specifications

outlet voltage	2 V
outlet impedance	1 kΩ
input impedance	22 kΩ
frequency response	20 Hz- 20 kHz, +1 dB
total harmonic distortion	0.007 %
dynamic range	96 dB
signal to noise ratio	100 dB
load impedance	More than 10 kΩ

Power

power supply	AC 120 V, 60 Hz
power consumption	15 W

Weight and Dimensions

dimensions	430 X 69 X 301.4 mm
weight	2.6 kg
