Technics SH-AC500D Operating Instructions

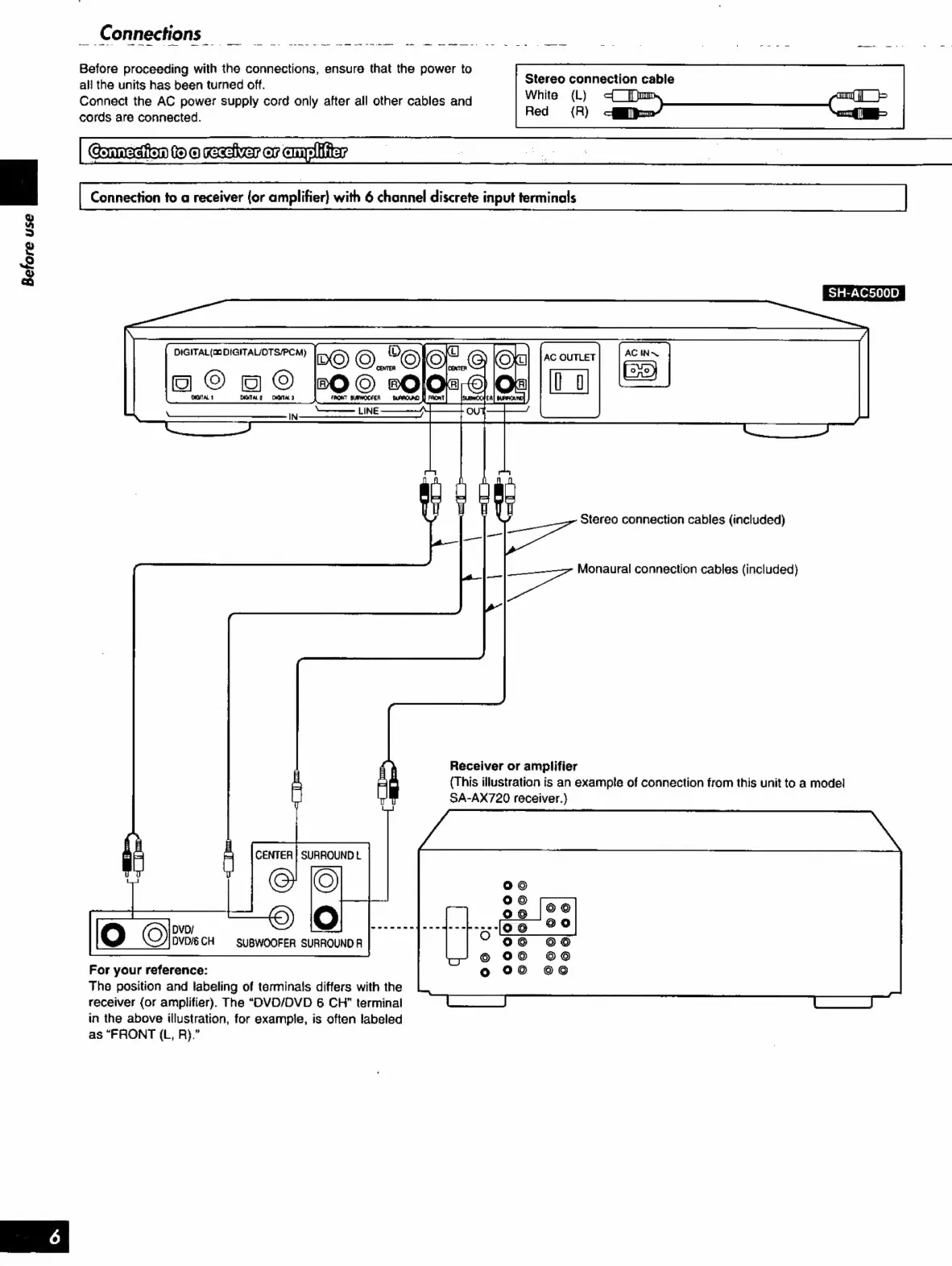

_ Connections _
Before proceeding with the connections, ensure that the power to
all the units has been turned off.
Connect the AC power supply cord only after all other cables and
cords are connected.
White (L)
Red (R)
SH-AC500D
of [mm
CENTER | SURROUND L
DVD/6CH SUBWOOFER SURROUND A
90 oO
For your reference:
The position and labeling of terminals differs with the
receiver (or amplifier). The “DVD/OVD 6 CH” terminal
in the above illustration, for example, is often labeled
as “FRONT (L, R).”
Receiver or amplifier
(This illustration is an example of connection from this unit to a model
SA-AX720 receiver.)
Stereo connection cables (included)
09
o0
o Re
o
©
©
© ooo
00o oo Oooo

Technics SH-AC500D Specifications

Audio Specifications

outlet voltage	2 V
outlet impedance	1 kΩ
input impedance	22 kΩ
frequency response	20 Hz- 20 kHz, +1 dB
total harmonic distortion	0.007 %
dynamic range	96 dB
signal to noise ratio	100 dB
load impedance	More than 10 kΩ

Power

power supply	AC 120 V, 60 Hz
power consumption	15 W

Weight and Dimensions

dimensions	430 X 69 X 301.4 mm
weight	2.6 kg
