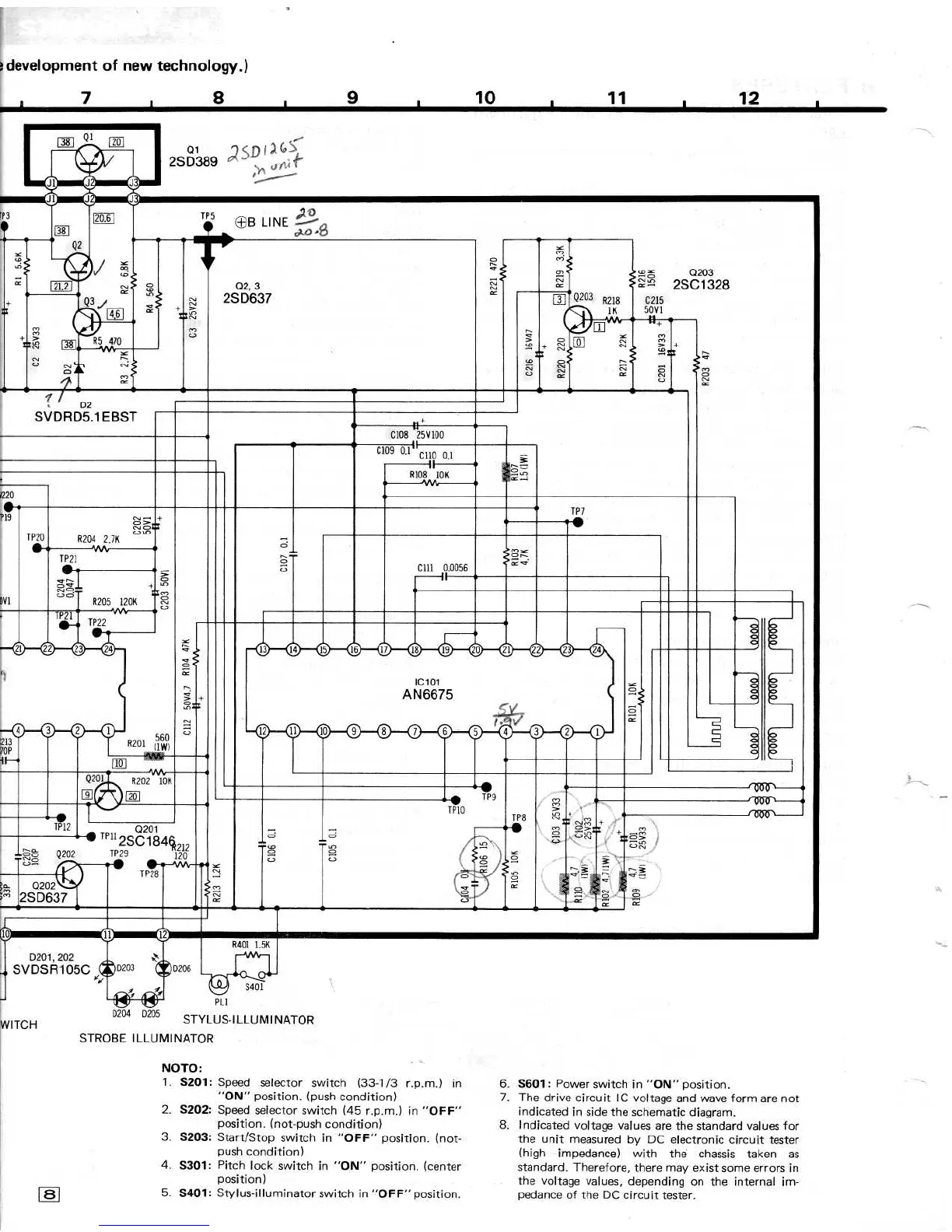

Technics SL-1200MK2 Service Manual

,development of new technology .)
7
~
8
fP3
220
P19
.213
Ilop
i
OVI
WITCH
D206
STROBE
ILLUMINATOR
PLl
5401
D204 D205
STYLUS-ILLUMINATOR
9
NOTO :
10
S601 : Power switch in "ON" position .
The drive circuit
IC voltage and wave form are not
indicated
in side the schematic diagram .
Indicated voltage values
are the standard values for
the unit measured by DC
electronic circuit tester
(high impedance) with the
chassis taken as
standard . Therefore, there may
exist some errors in
the voltage values, depending on the internal im-
pedance of the DC circuit tester .
1 .
S201 : Speed selector switch (33-1/3 r.p .m .) in
6 .
"ON"
position . (push condition) 7 .
2 . S202 : Speed selector
switch (45 r .p .m .) in "OFF"
position . (not-push condition)
8 .
3 . S203 : Start/Stop switch in "OFF"
position . (not-
push condition)
4 .
S301 : Pitch lock switch in "ON"
position . (center
position)
5 .
S401 : Stylus-illuminator switch in "OFF" position .

Technics SL-1200MK2 Specifications

General

Product color	Silver
Power requirements	AC120V, 60Hz
Signal-to-Noise Ratio (SNR)	78 dB
Power consumption (typical)	14 W

Weight and Dimensions

Depth	360 mm
Width	453 mm
Height	160 mm
Weight	12000 g
