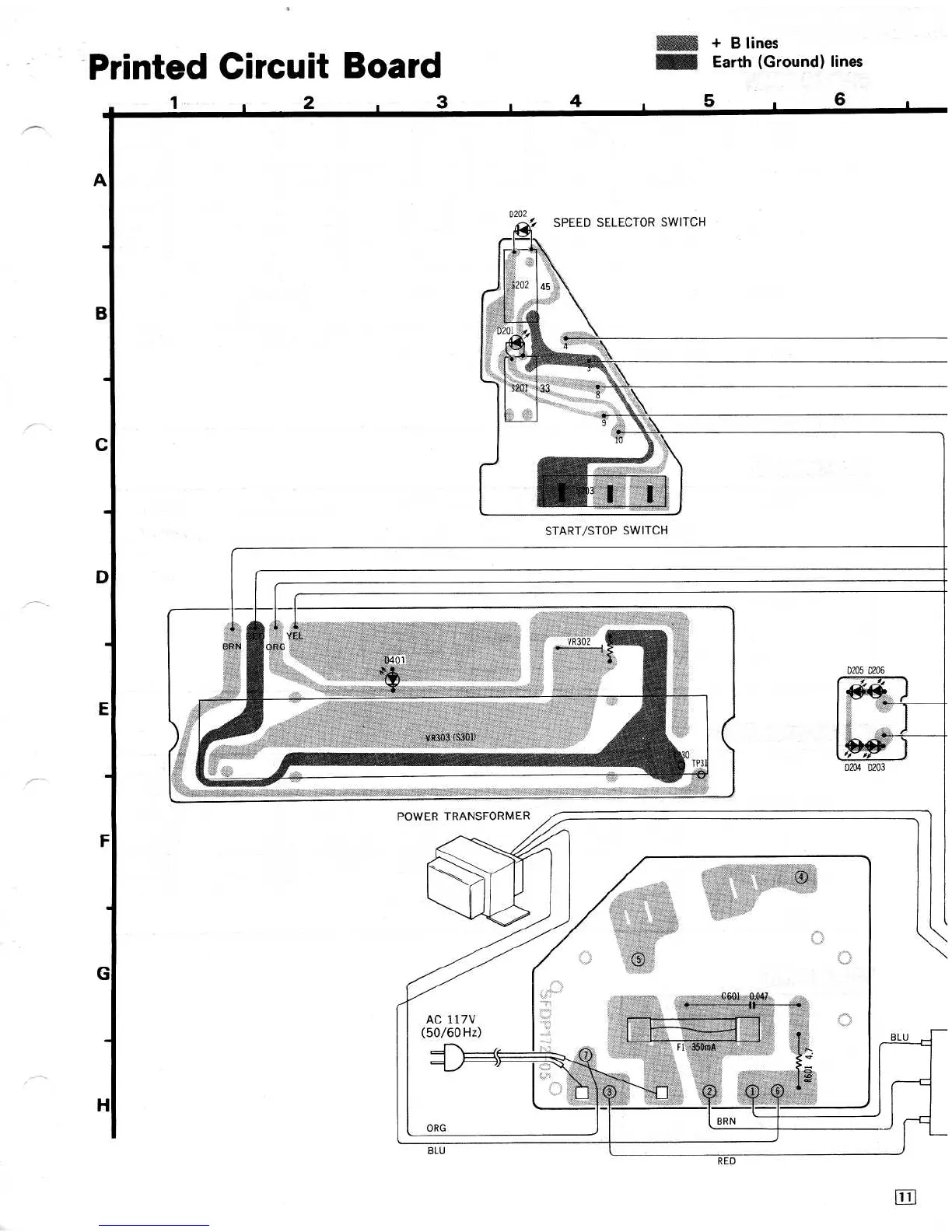

Technics SL-1200MK2 Service Manual

Printed
Circuit Board
2
A
B
C
D
E
F
G
H
BLU
D202
POWER TRANSFORMER
r r
SPEED SELECTOR SWITCH
AC
117V
(50/60 Hz)
ORG
02
S20f 133
BRN
D204 D203
START/STOP SWITCH
+
B lines
Earth (Ground) lines
RED
BLU

Technics SL-1200MK2 Specifications

General

Product color	Silver
Power requirements	AC120V, 60Hz
Signal-to-Noise Ratio (SNR)	78 dB
Power consumption (typical)	14 W

Weight and Dimensions

Depth	360 mm
Width	453 mm
Height	160 mm
Weight	12000 g
