RQT7114
6
Before use

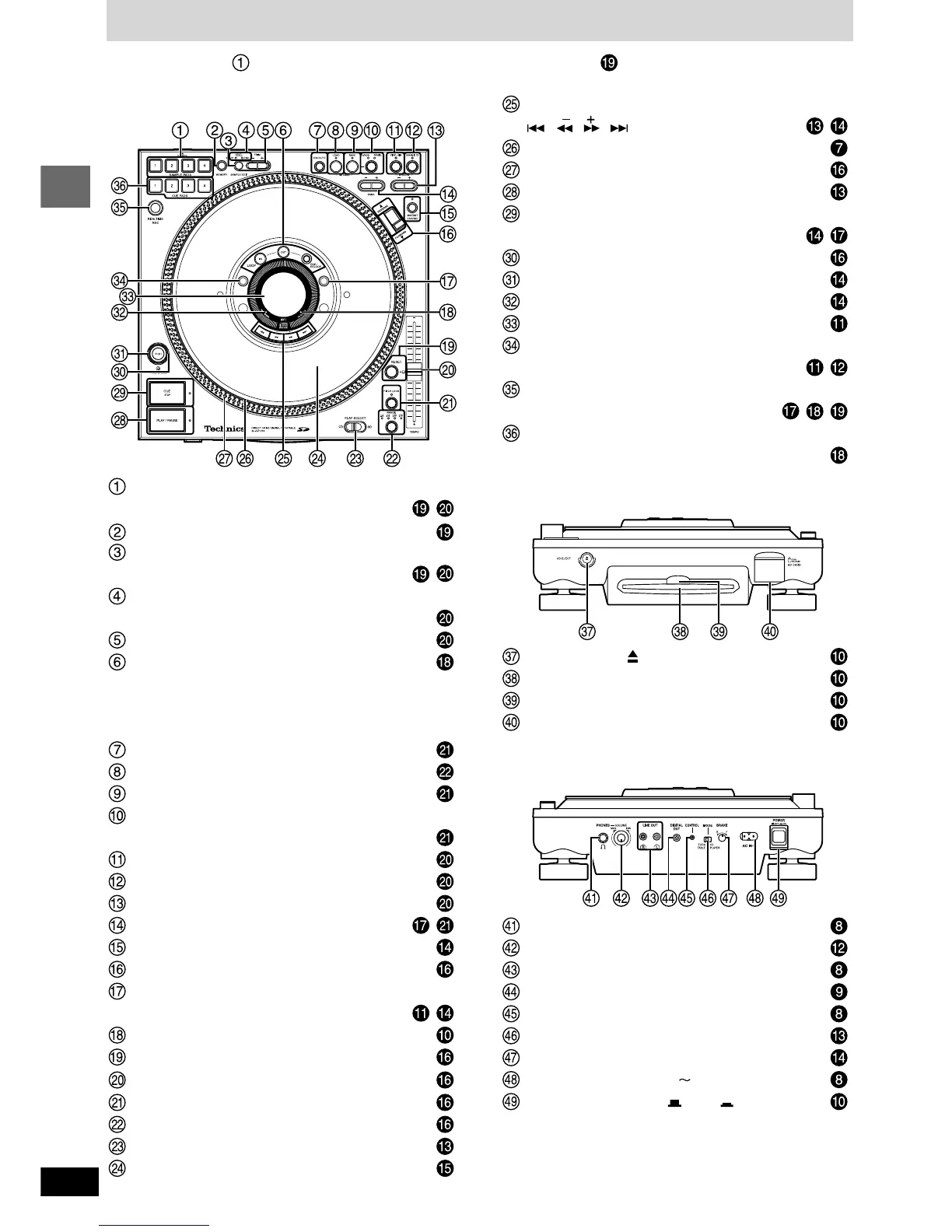

Component part names
The unshaded numbers etc, correspond to the numbered illustrations. The shaded numbers etc, are reference pages.
Control panel
Sampling data record, play, and erase button, lamp
(1-4 SAMPLE PADS) .........................................
,
Sample pad play mode, edit memory button (MEMORY)
Play mode and edit item select button (SAMPLE EDIT)
...........................................................................
,
Start point (START) lamp, end point (END) lamp,
level (LEVEL) lamp ..................................................
Modify data button (– + TRIM) ................................
Loop play button (LOOP) ........................................
Start of loop play point setting, erase button, lamp (IN)
End of loop play point setting, erase button, lamp (OUT)
Play or cancel loop play button (EXIT/RELOOP)
Execute button (EXECUTE) ...................................
Load SD Memory Card data button, lamp (LOAD)
Save SD Memory Card data button, lamp (SAVE)
SD Memory Card save mode select button, lamp
(S.PADS, PANEL) .....................................................
Analog player simulation button, lamp (VINYL SIM)
Special effects button, lamp (DYNAMIC FX) .........
Simulation, effect type select button (– + TYPE) ....
Cue bank, file number select button (
– +
BANK)
,
Instant play select button, lamp (INSTANT CHANGE)
Play direction switch (REVERSE, FORWARD)......
Display angle setting, function setting button
(•DISPLAY ANGLE –FUNCTION)......................
,
SD Memory Card access indicator (SD ACCESS)
Normal tempo button, lamp (RESET) ....................
Tempo, pitch control slider (TEMPO) ....................
Fixed pitch play button, lamp (PITCH LOCK) .......
Tempo variation range button, lamp (RANGE) .....
Media play select switch (PLAY SELECT) .............
Platter slip surface ..................................................
Track skip, search, setting buttons
(
, , , ) ............................................. ,
Platter .......................................................................
Strobo dot reflectors ...............................................
Play pause button, lamp (PLAY/PAUSE) ...............
Cue setting, load and stop button, lamp (CUE STOP)
...........................................................................
,
Strobo illuminator ...................................................
Platter free wheel setting button (PUSH) ..............
Platter free wheel indicator (FREE WHEEL) .........
Display ......................................................................
Remaining time display, auto cue setting button
(•REMAIN –AUTO CUE) ....................................
,
Cue point, pad memory button (REALTIME REC)
.....................................................................
, ,
Cue memory, play and erase button, lamp
(1-4 CUE PADS) ........................................................
Front panel
CD eject button ( CD EJECT) ..............................
CD slot ......................................................................
Power lamp ..............................................................
SD Memory Card slot (SD CARD) ..........................
Rear panel
Headphone terminal (PHONES) .............................
Headphone volume control knob (VOLUME) ........
Output terminal (LINE OUT) ...................................
Digital output terminal (DIGITAL OUT) ..................
Digital turntable control terminal (CONTROL) ......
Turntable, CD player select switch (MODE) ..........
Platter brake control (BRAKE) ...............................
AC input terminal (AC IN ) ...................................
Power button (POWER OFF ON) .................
