Technics SL-EH60 Service Manual

SL-EH60 |

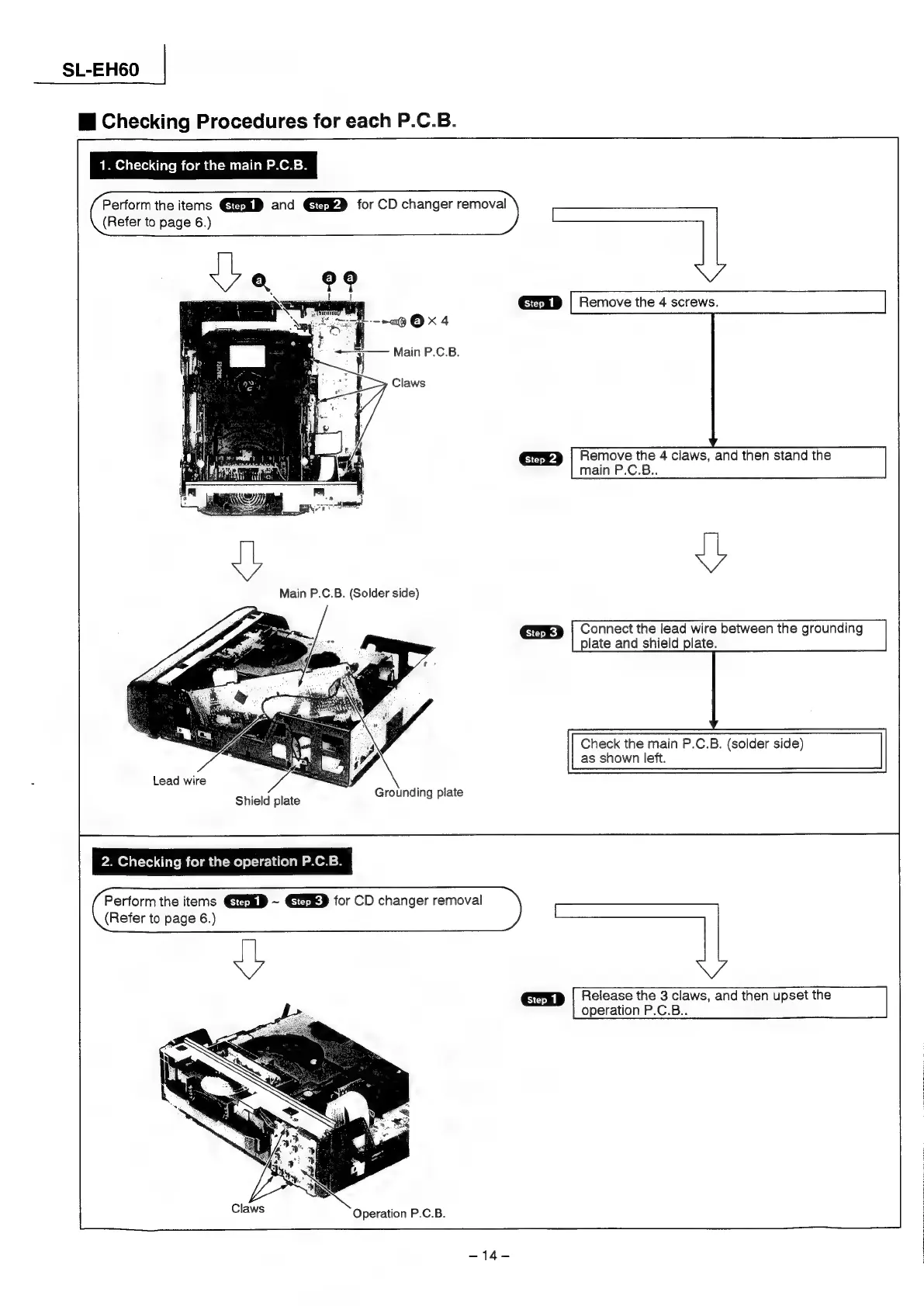

i Checking Procedures for each P.C.B.
1. Checking for the main P.C.B.
Perform the items GSR and G8) for CD changer removal
(Refer to page 6.)
a oe fa) x4
Main P.C.B.
Lead wire
Shield plate Grounding plate
Operation P.C.B.
Remove the 4 screws.
step 2 J Remove the 4 claws, and then stand the
main P.C.B..
Connect the lead wire between the grounding
plate and shield plate.
Check the main P.C.B. (solder side)
as shown left.
cup Release the 3 claws, and then upset the
operation P.C.B..
