Technics SL-EH60 Service Manual

SL-EH60
Disc tray No.2 L}
Disc tray No.3

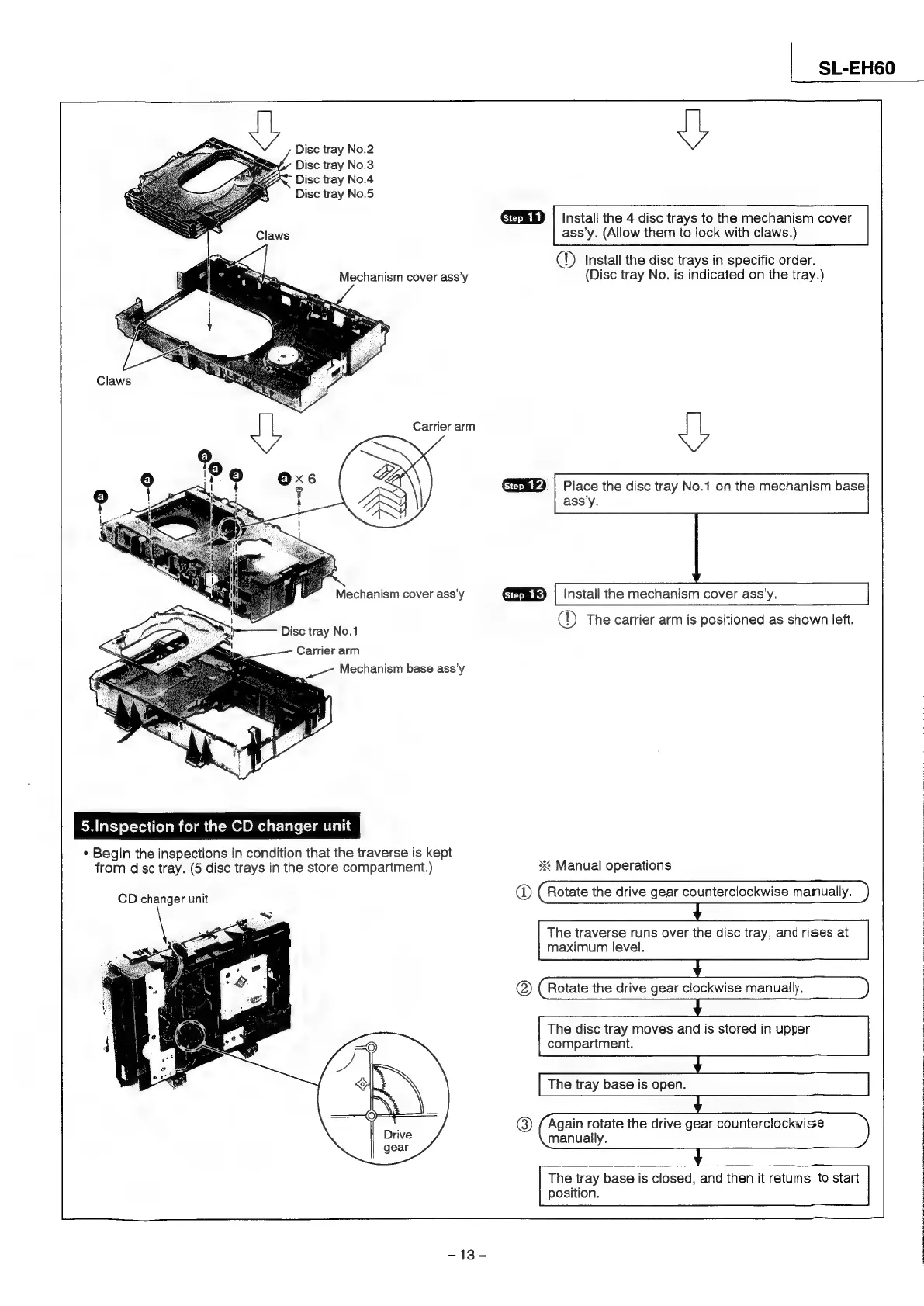

ESD | Install the 4 disc trays to the mechanism cover
ass’y. (Allow them to lock with claws.)
Disc tray No.4
Disc tray No.5
® Install the disc trays in specific order.
(Disc tray No. is indicated on the tray.)
Carrier arm
EMEP | Place the disc tray No.1 on the mechanism base
ass’y.
Mechanism cover ass’y ESE) | Install the mechanism cover ass’y.
i} i < . pie
(D)) The carrier arm is positioned as shown left.
‘yi Disc tray No.1
Carrier arm
a— Mechanism base ass’y
5.Inspection for the CD changer unit
* Begin the inspections in condition that the traverse is kept : ;
from disc tray. (5 disc trays in the store compartment.) 3 Manual operations
CD changer unit Rotate the drive gear counterclockwise manually.
®
The tray base is closed, and then it retuins to start
position.
~13-
