Technics SL-EH60 - Page 12

SL-EH60 |

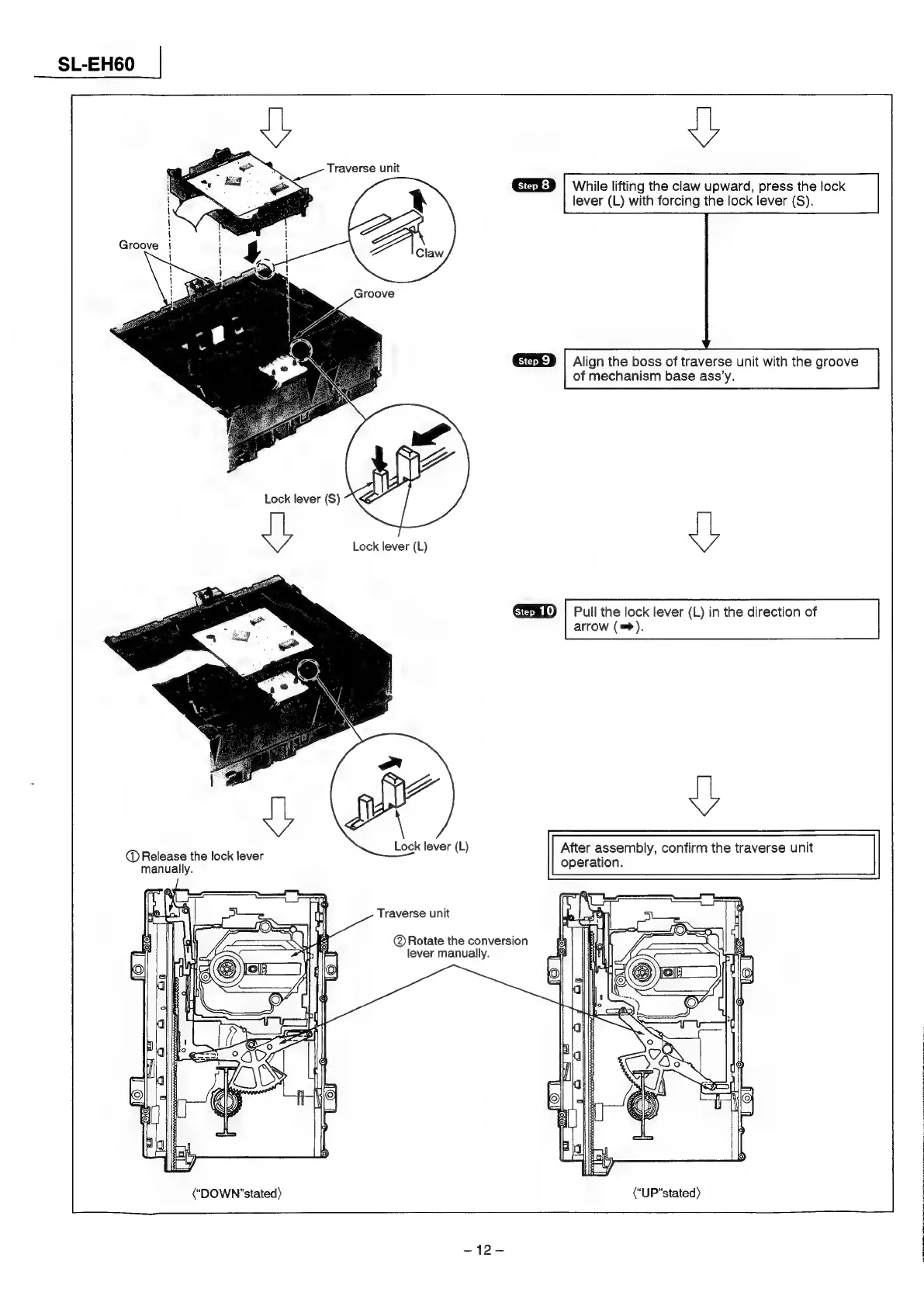

While lifting the claw upward, press the lock
lever (L) with forcing the lock lever (S).
@2ED | Align the boss of traverse unit with the groove
Lock lever (S)
ay Lock lever (L)
of mechanism base ass’y.
7
@@SR | Pull the lock lever (L) in the direction of
Lock lever (L
@ Release the lock lever ”
manually.
Traverse unit
@ Rotate the conversion
lever manually.
(“DOWN ’stated)
-12-
arrow (=).
After assembly, confirm the traverse unit
operation.
(“UP’stated)
