Technics SL-L3 User Manual

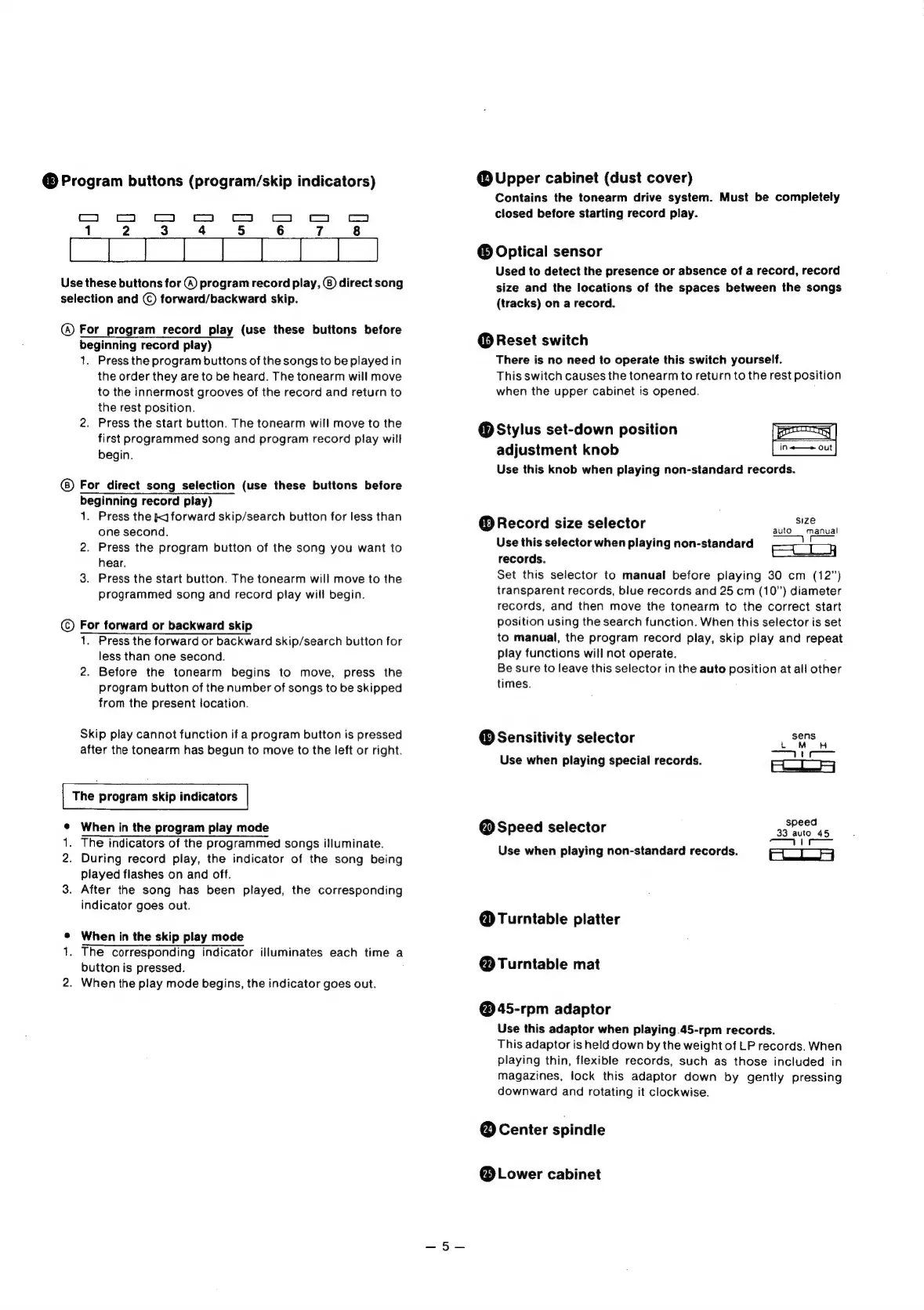

@ Program buttons (program/skip indicators)
am mo Hohl sa
1 2 #3 #4 #5 6 7 8
Use these buttons for @ program record play, ® direct song
selection and © forward/backward skip.
@® For program record play (use these buttons before
beginning record play)
1. Press the program buttons of the songs to be played in
the order they are to be heard. The tonearm will move
to the innermost grooves of the record and return to
the rest position.
2. Press the start button. The tonearm will move to the
first programmed song and program record play will
begin.
For direct song selection (use these buttons before
beginning record play)
1. Press the kd forward skip/search button for less than
one second.
2. Press the program button of the song you want to
hear.
3. Press the start button. The tonearm will move to the
programmed song and record play will begin.
© For forward or backward skip
1. Press the forward or backward skip/search button for
less than one second.
2. Before the tonearm begins to move, press the
program button of the number of songs to be skipped
from the present location.
Skip play cannot function if a program button is pressed
after the tonearm has begun to move to the left or right.
| The program skip indicators
¢ When in the program play mode
The indicators of the programmed songs illuminate.
. During record play, the indicator of the song being
played flashes on and off.
3. After the song has been played, the corresponding
indicator goes out.
nm a
© When in the skip play mode
1. The corresponding indicator illuminates each time a
button is pressed.
2. When the play mode begins, the indicator goes out.
@ Upper cabinet (dust cover)
Contains the tonearm drive system. Must be completely
closed before starting record play.
@® Optical sensor
Used to detect the presence or absence of a record, record
size and the locations of the spaces between the songs
(tracks) on a record.
@Reset switch
There is no need to operate this switch yourself.
This switch causes the tonearm to return to the rest position
when the upper cabinet is opened.
@ Stylus set-down position
adjustment knob
Use this knob when playing non-standard records.
@Record size selector wale
:
:
manual
Use this selector when playing non-standard — oR GT
records.
Set this selector to manual before playing 30 cm (12”)
transparent records, blue records and 25 cm (10”) diameter
records, and then move the tonearm to the correct start
position using the search function. When this selector is set
to manual, the program record play, skip play and repeat
play functions will not operate. ;
Be sure to leave this selector in the auto position at all other
times.
@ Sensitivity selector
Use when playing special records. 3
speed
33 auto 45
a fs ad
@ Speed selector
Use when playing non-standard records.
@ Turntable platter
@ Turntable mat
@45-rpm adaptor
Use this adaptor when playing.45-rpm records.
This adaptor is held down by the weight of LP records. When
playing thin, flexible records, such as those included in
magazines, lock this adaptor down by gently pressing
downward and rotating it clockwise.
@ Center spindle
@ Lower cabinet
