Technics SL-P999 Service Manual

SL-P999 SL-P999
M@ REPLACEMENT PARTS LIST
Notes: * Important safety notice :
Components identified by 4\ mark have special characteristics important for safety. When replacing any of these components use only
manufacturer’s specified parts.
* Bracketed indications in Ref. No. columns specify the area. (Refer to the first page for area.)
Parts without these indications can be used for all areas.
* Remote Control Ass’y:
Supply period for three years from termination of production.
* Warning : This product uses a laser diode. Refer to caution statements on page 3.
* ACHTUNG :
Die lasereinheit nicht zerlegen.
Die lasereinheit darf nur gegen eine vom hersteller spezifizierteeinheit ausgetauscht werden.
es Se a oe
129
TRAVERSE
SUWD112 GUIDE SHAFT HOLDER
TRAVERSE DECK 131 SDGD58 MAIN GEAR
102 $1$022-1 TRAVERSE BASE 132 SDGD59-2 GEAR
103 $00028-1E TURNTABLE 133 St RDOA-E LOADING MOTOR
103-1 XXE26D5 SCREW 134 XTB3+10G SCREW
104 $D0029-2 RING 135 SMBD7 BELT
106 SRQAOIONO4 = SPRING 137 SFUMZ15R61 WASHER
107 SORO37 ROLLER 138 SDRDI4 ROLLER
108 SORD38-E COIL 139 XTB3+8G SCREW
109 SUXD123-1 GUIDE SHAFT 140 StRD97-2E HOLDER
10 A SOADTOA OPTICAL PICKUP 141 SIRDI07-1 TRAY BASE
1 SHROD176-E COIL HOLDER 142 SIRD40-2 RACK GEAR
113 SHGD148 STOPPER 143 SI RD96 LOCK LEVER
114 SOYD21-E YOKE 145 $1 RD98-2 DISC TRAY
5 soyp22 YOKE 146 SUSD83 SPRING
116 SHRDITT-1 LOCK UNIT 147 SNSD36 SCREW
WT SHWD33 WASHER 148 S1WD105 BRACKET
118 SHW034 WASHER 149 SJGDRF310T-2 SPINDLE MOTOR
9 SNSD31 SCREW 150 $1 RD51-1 HOLDER
120 XTN2+5G SCREW 151 S!RD42-3 LEAD WIRE CLAMP
121 XYN2+C8 SCREW 152 SOMD4 MAGNET
122 XYN26+J6 SCREW 153 soyo2 YOKE
123 SHGD153-1 CUSHION RUBBER 154 $1KD150051 FLAT CABLE
124 SUSD136-1 SPRING 155 S1KD150221-1 FLAT CABLE
125 SUSD137-1 SPRING 156 SHRD150 ROLLER HOLDER
126 SNSD33 SCREW 157 SJSD1722M SOCKET(17P)
127 SIWLP555-KN LOADING BASE 158 SJSD2222M SOCKET(22P)
128 SUSD145-1 SPRING 159 SJT30543-V CONNECTOR(5P)
160 SDRDI12 ROLLER
EMCS0S5S2MP CONNECTOR(5P)

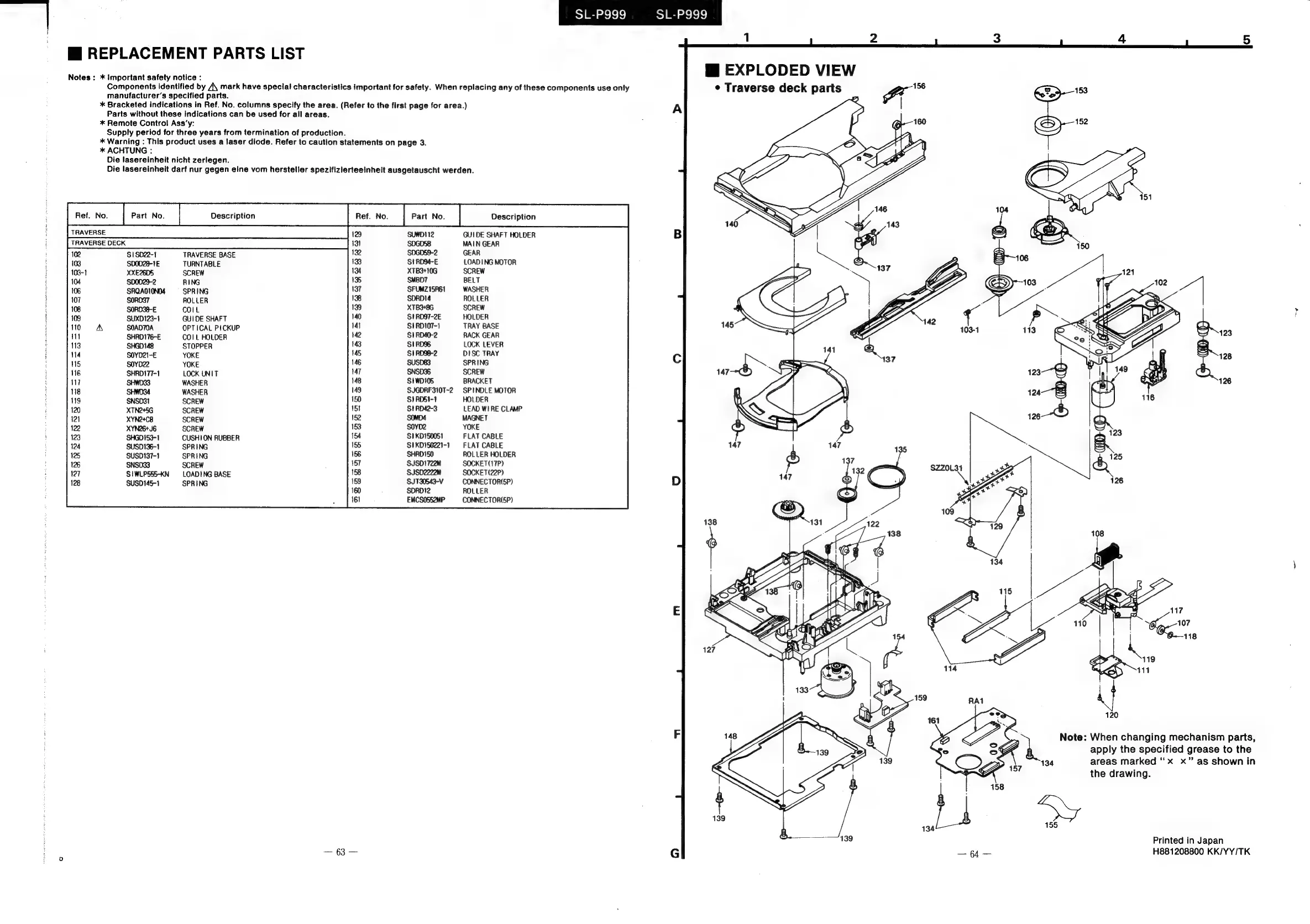

M@ EXPLODED VIEW
¢ Traverse deck parts
139
134
123
128
Note: When changing mechanism parts,
apply the specified grease to the
areas marked “x x” as shown in
the drawing.
Printed in Japan
H881208800 KK/YY/TK
