Technics SL-PS900 Service Manual

5L-PS900

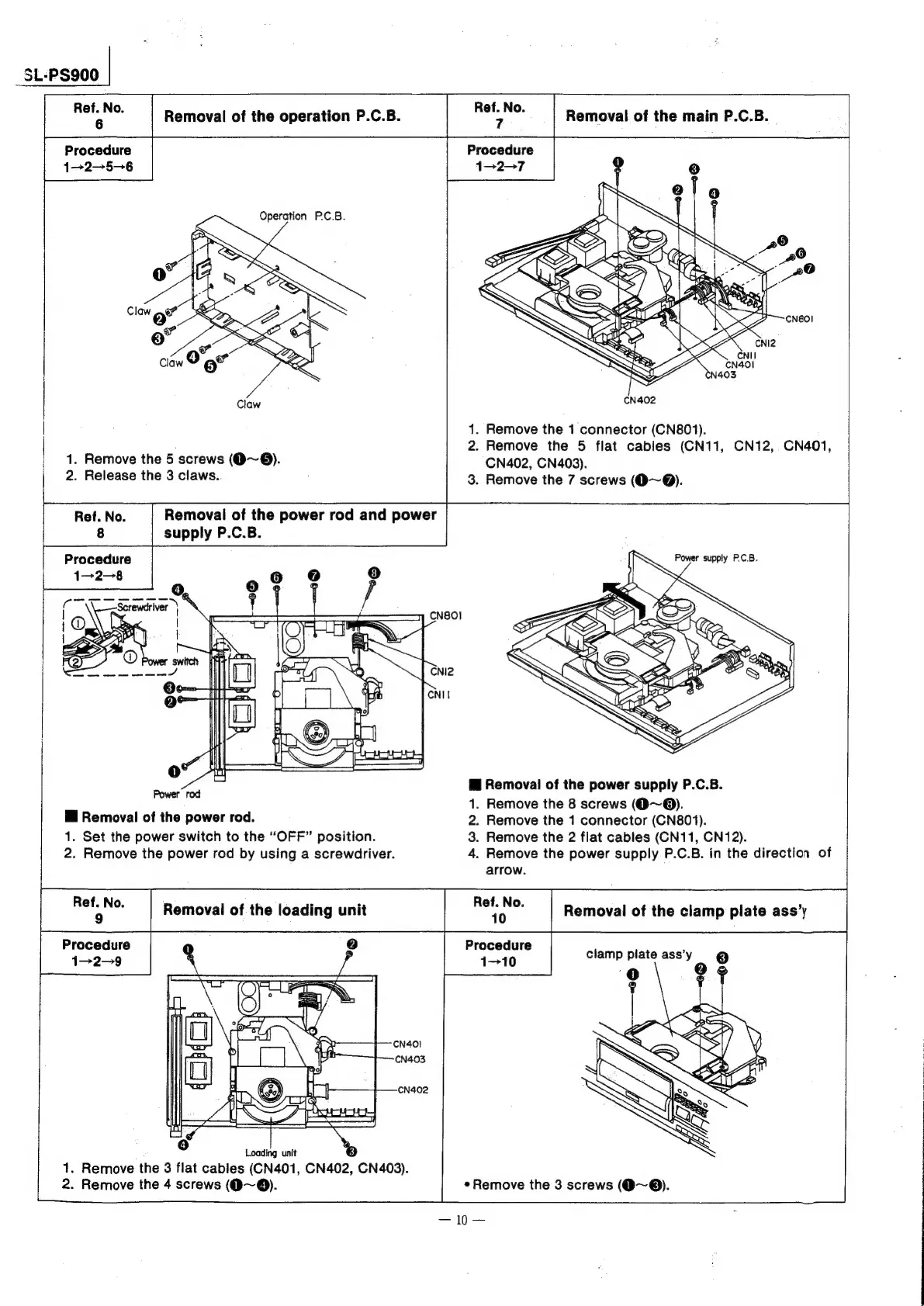

srs Removal of the operation P.C.B. aa ha Removal of the main P.C.B.
Procedure Procedure
1-2-—5-6 1-2-7
| 1. Remove the 1 connector (CN801).
2. Remove the 5 flat cables (CN11, CN12, CN401,
| 1. Remove the 5 screws (Q@~6). CN402, CN403).
| 2. Release the 3 claws. 3. Remove the 7 screws (O~@).
Ref. No. Removal of the power rod and power
8 supply P.C.B.
Procedure
@ Removal of the power supply P.C.B.
1. Remove the 8 screws (9~®).
i Removal of the power rod. 2. Remove the 1 connector (CN801).
1. Set the power switch to the “OFF” position. 3. Remove the 2 flat cables (CN11, CN12).
2. Remove the power rod by using a screwdriver. 4. Remove the power supply P.C.B. in the direction of
arrow.
Procedure
1—10
Procedure
1-2-9
cy D G) I
VASA mg
Loading unit
1. Remove the 3 flat cables (CN401, CN402, CN403).
2. Remove the 4 screws (@~®).
*Remove the 3 screws (@~®).
