Technics ST-X302L Service Manual

ST-X302L |

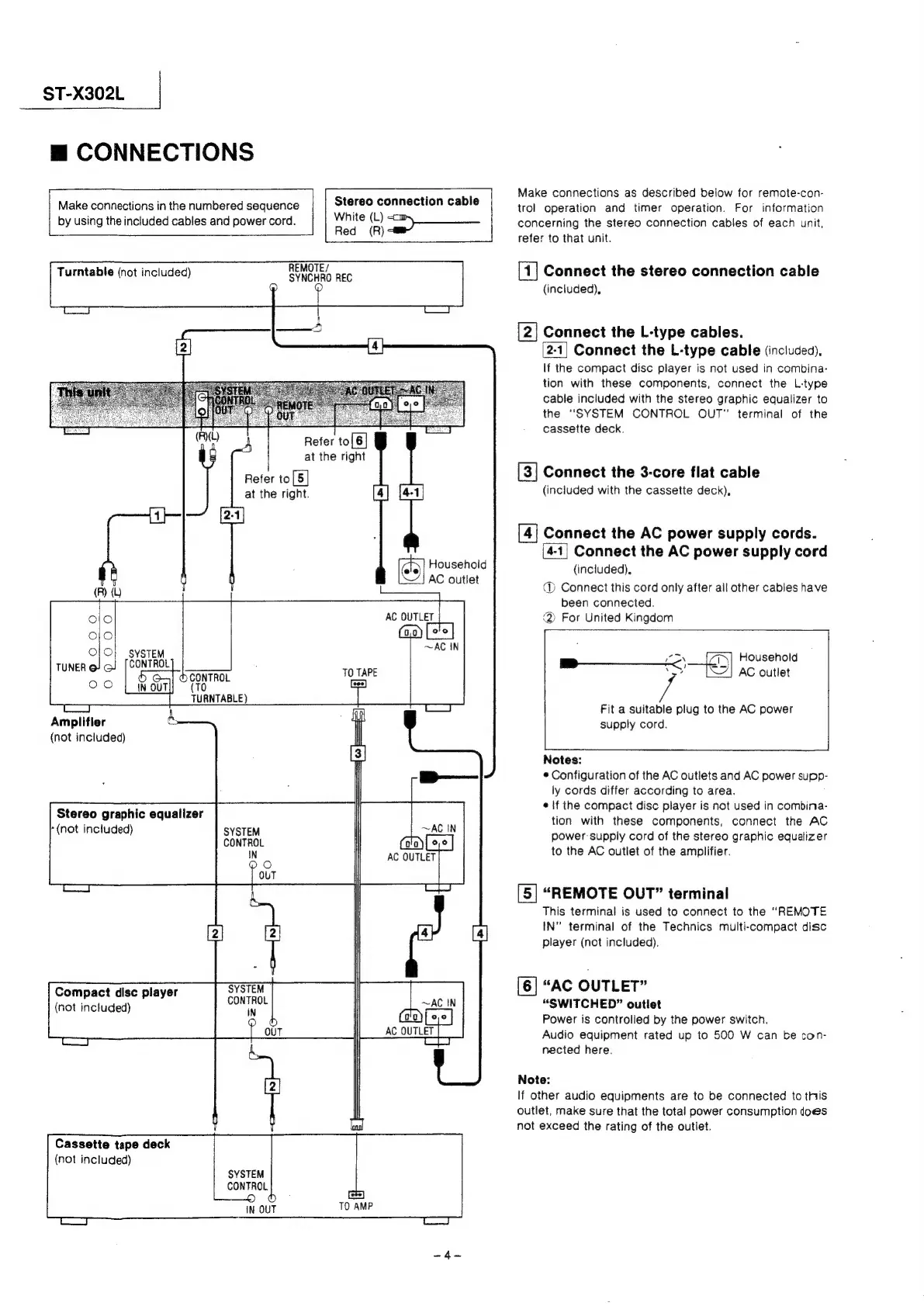

m CONNECTIONS
Stereo connection cable
White (L) —)
Red (R)
Make connections in the numbered sequence
by using the included cables and power cord.
REMOTE/
Turntable (not included) SYNCHRO REC
0)
Refer to[6]
at the right
Refer to [5]
at the right.
Household
AC outlet
AC OUTLET
TO TAPE
TURNTABLE)
Amplifier
(not included)
Stereo graphic equalizer
(not included)
SYSTEM
CONTROL
IN
D
SYSTEM ©
CONTROL
IN
7)
Compact disc player
(not included)
Cassette tape deck
(not included)
SYSTEM
CONTROL
Make connections as described below for remote-con-
trol operation and timer operation. For information
concerning the stereo connection cables of each unit,
refer to that unit.
[1] Connect the stereo connection cable
(included),
[2] Connect the L-type cables.
[2:1] Connect the L-type cable (included),
If the compact disc player is not used in combina-
tion with these components, connect the L-type
cable included with the stereo graphic equalizer to
the “SYSTEM CONTROL OUT” terminal of the
cassette deck.
[3] Connect the 3-core flat cable
(included with the cassette deck),
[4] Connect the AC power supply cords.
[4-1] Connect the AC power supply cord
(included),
@ Connect this cord only after all other cables have
been connected.
2 For United Kingdom
= SO] Household
pe AC outlet
Fit a suitable plug to the AC power
supply cord.
Notes:
* Configuration of the AC outlets and AC power supp-
ly cords differ according to area.
¢ {f the compact disc player is not used in combina-
tion with these components, connect the AC
power supply cord of the stereo graphic equalizer
to the AC outlet of the amplifier.
[5] “REMOTE OUT” terminal
This terminal is used to connect to the ‘REMOTE
IN" terminal of the Technics multi-compact disc
player (not included).
[6] “AC OUTLET”
“SWITCHED” outlet
Power is controlied by the power switch.
Audio equipment rated up to 500 W can be con-
nected here.
Note:
If other audio equipments are to be connected to this
outlet, make sure that the total power consumption does
not exceed the rating of the outlet.
